5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container
5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container
5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container
5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container
5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container
5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container
5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container
5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container
Specifications
Place of Origin :
china
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Delivery Time :
negotiated
OEM/ODM :
Aceptable
Features :
Multiple batteries assembled into container
Storage Temperature :
40℃~55℃@60%±25%Humidity
Battery Cell :
LifePO4 Cell 100Ah
Brand Name :
PMD
Capacity :
5kWh per Battery
Description

5kwh 10kwh 20kwh 48v 51.2v 100ah Lifepo4 Lithium Ion Battery Solar Energy Storage Ups Battery Container

Product Paramenters
Key Features
1. Withstand thermal shock and puncture without fire or explosion
2. Compatible with global mainstream brands inverter
3. Real-time monitoring on LCD screen
4. Communication compatibility: CAN, RS485, RS232
5. Built-in active balancer
6, Built-in circuit breaker, dual protection
7, Modular design, easy to install and maintain, support parallel connection
8, Professional BMS, multiple protection
9, 6000 cycles, long life
10, Can be connected to APP remote control

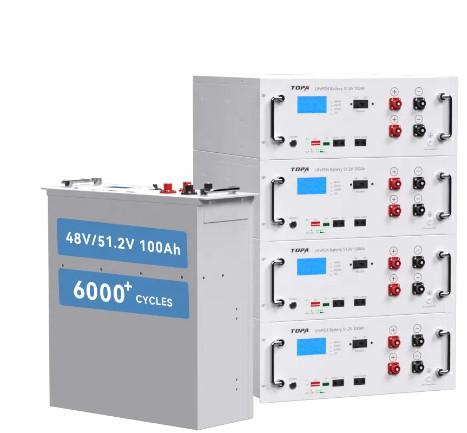

Product Name
Energy Storage Container
Rated Power
5kWh per Battery
Capacity
48V/51.2V@100Ah
Operating Temperature
Charging: 0℃~+60℃, Discharging -20℃~+60℃
Long-Term Storage Temperature
40℃~55℃@60%±25%Humidity
Battery Cell
Lithium Iron Phosphate 3.2V/100Ah, 15S/16S
Charging Mode
CC/CP/VP, 0.2C Standard Charging, 1C Maximum Continuous Charging Current
Discharge Mode
CC/CP/VP, 0.2C Standard Charge, 1.5C Maximum Continuous Discharge Current
Internal Resistance
≤100mΩ
Display
LED Screen Display Monitor
Communication Interface
RS232-PC, RS485(B)-PC, RS485(A)-Inverter,Canbus-Inverter
Cycle Life
≥4000 Times, 80% Power Retention
Product Size
478*176*472mm per Battery
Product Weight
42kg per Battery
Packing
Wooden Crates
Certification
UL, IEC, UN38.3,MSDS etc.
Product Information
Company Profile
PMD Technology Limited is a national high-tech enterprise specializing in R & D, production and sales of new energy lithium battery and system. Products are widely used in a variety of fields such as fire emergency light, electric tool, garden tool, vacuum cleaner, household appliances, low-speed vehicle, communication power supply, home energy storage, wind-solar-electricity grid and off-grid energy storage system, etc., we have obtained certificates such as U L, T U V, C B, C E, P S E, U N 38.3, M S D S, etc..
Hope to gain more customer recognition through our unremitting efforts!
Certifications
FAQ
1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.

2. Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Tested and label the data on each cell

3. How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.

4. What is the cycle life of the battery?
6000 cycle life @ 80% DOD

5. What's the warranty of your 48V/51.2V battery pack?
5 years warranty.

6. Do your batteries support series or parallel connection?
Our 48V battery packs support up to 16pcs in parallel, if you need series connection, please contact with our sales.
