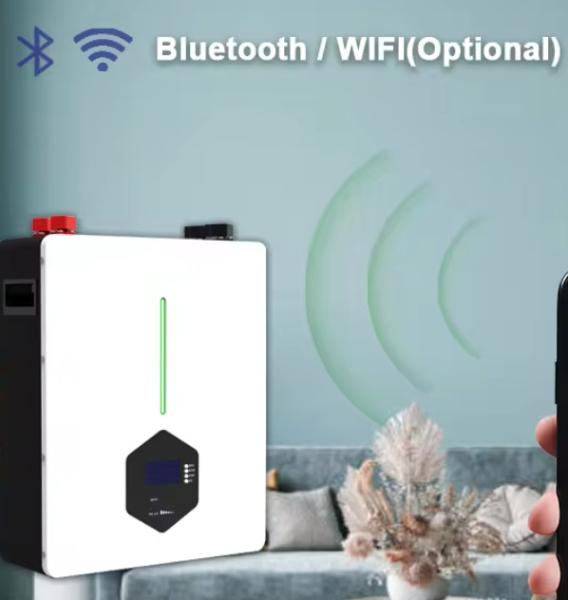

Powerwall 10kwh Home Lithium Battery Solar Storage 48v 100ah 200ah 10Kwh Power Wall Lifepo4 48V Solar Battery
Powerwall 10kwh Home Lithium Battery Solar Storage 48v 100ah 200ah 10Kwh Power Wall Lifepo4 48V Solar Battery
Powerwall 10kwh Home Lithium Battery Solar Storage 48v 100ah 200ah 10Kwh Power Wall Lifepo4 48V Solar Battery
Powerwall 10kwh Home Lithium Battery Solar Storage 48v 100ah 200ah 10Kwh Power Wall Lifepo4 48V Solar Battery
Specifications
Place of Origin :
Guangdong, China
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Cycle life :
≥6000 times
Battery Type :
LiFePO4
Normal Voltage :
48V/51.2V
Protection Class :
IP20
warranty :
3~5 years
Description

Powerwall 10kwh Home Lithium Battery Solar Storage 48v 100ah 200ah 10Kwh Power Wall Lifepo4 48V Solar Battery

Product Description
Model
PL4850
PL48100
PL48150
PL48200
Product Name
Powerwall 10kwh Home Lithium Battery Solar Storage 48v 100ah 200ah 10Kwh Power Wall Lifepo4 48V Solar Battery
Capacity Energy
2.5kWh
5kWh
7.5kWh
10kWh
Capacity Ah
50Ah
100Ah
150Ah
200Ah
Battery Type
LFP(LifePO4)
Depth Of Discharge(DoD)
95%
Nominal Voltage
48/51.2V
Maximum Charging Current
30A @25℃
90A @25℃
90A @25℃
90A @25℃
Max.Discharging Current
50A @25℃
120A @25℃
120A @25℃
120A @25℃
Operating Temperature Range
Charging: 0℃ ~+ 50℃ , Discharging:-20℃ ~ + 60℃
Storage Temperature Range
-30℃ ~ + 60℃
Humidity
5%~95%
Modules Connection
Max 15 Batteries In Parallel
Communication
RS485/RS232/CAN (Optional)
Net Weight
30KGS
45KGS
65KGS
89KGS
Dimensions (H x W x D) (mm)
464*330*160
547*461*163
510*445*208
547*471*248
Ingreess Protection Rating
IP20
Cycle life
Around 6000 Times
Warranty
5 Years Product Warranty,10 Years Design Life Warranty
Certifications
CE/UN38.3/MSDS

Features

• Long warranty period:3-5 years
• Lithium Battery Iron Phosphate Battery
• Support connected in parallel mode for
expansion
• Higher energy density, smaller volume for household.
• Photovoltaic system: This battery pack is designed for household photovoltaic systems
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
• Expandability: This battery pack can be easily expanded by adding expansion battery packs in parallel connection.

Powerwall 10kwh Home Lithium Battery Solar Storage 48v 100ah 200ah 10Kwh Power Wall Lifepo4 48V Solar Battery

Company Profile

Guangzhou PMD New Energy Co., Ltd. has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. We focus on design and development of High Voltage, Large Capacity Long cycle life LiFePO4 battery ,LTO Battery and system, and offer global technical support. We equipped with advanced production and testing facilities, supply valuable and high quality products.

FAQ
Q1.What's kinds of battery will you provide?
We have 4 types of battery: motorcycle battery, electric bike battery UPS and car battery,and we have many models to meet your requirements.
Q2.Can we change the color of the battery?
Yes, the color can be customer-made according to your requirements.
Q3.Can you print my picture or logo on the battery cover?
Yes, OEM is available, we can print your picture or logo,we also can do the design for you.
Q4.What kind of guarantee will you give to us?
ln any case,all the quality assurance requirements must be presented in the correspondirwarranty period. We promise, in the period of warranty, the part which exceeds no claimrate in one order, we will refund corresponding amounts to you in the next order.
Q5.How to place orders?
Firstly let us know your requirements or applications.
Secondly, we quote you cost accordinto your needs or our suggestions. Thirdly, clients confirm the samples and pay deposit for theorder.Then we will arrange the bulk production.
