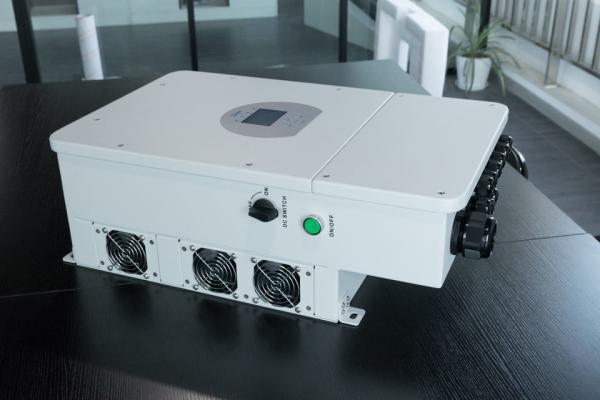

8KW 6KW 5KW 8000W Solar Inverter For Solar Energy Storage System
8KW 6KW 5KW 8000W Solar Inverter For Solar Energy Storage System
Specifications
Place of Origin :
china
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Output Voltage :
125-425V
Output Current :
24-35A
Output Frequency :
50/60Hz
Warranty :
5 YEARS
Weight :
32
Battery Voltage Range (V) :
40~60V
Description

8kw 6kw 5kw 5 Years Warranty 8000w Solar Inverter For Solar Energy Storage System

Product Description

8KW 6KW 5KW 8000W Solar Inverter For Solar Energy Storage System

Hybrid solar inverter SUN-5K/6K/7K/8K-SG01LP1-EU is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operate on such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.

● 2 MPPT
● High power factor
● IP65 Ingress protection
● Six Time of use setting
● Max efficiency up to 97.6%
● Support generator connection

Specifications
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40~60V
Max. Charging Current (A)
120A
135A
190A
Max. Discharging Current (A)
120A
135A
190A
Charging Curve
3 Stages / Equalization
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
6500W
7800W
9880W
10400W
PV Input Voltage (V)
370V (100V~500V)
MPPT Range (V)
125V-425V
Start-up Voltage (V)
150V
PV Input Current (A)
13A+13A
26A+13A
26A+26A
No.of MPPT Trackers
2
No.of Strings Per MPPT Tracker
1+1
2+1
2+2
AC Output Data
Rated AC Output and UPS Power (W)
5000W
6000W
7600W
8000W
Max. AC Output Power (W)
5500W
6600W
8360W
8800W
Peak Power (off grid)
2 times of rated power, 10 S
AC Output Rated Current (A)
20.8A
25A
31.7A / 33A
33.4A / 35A
Max. AC Current (A)
22.9A
27.5A
34.9A / 36.3A
36.7A / 38.5A
Max. Continuous AC Passthrough (A)
35A
40A
50A
Output Frequency and Voltage
50 / 60Hz;230Vac (single phase)
Grid Type
Single Phase
Current Harmonic Distortion
THD<3%(Linear load<1.5%)
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Protection
Integrated
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor
Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection
Output Over Voltage Protection
DC Type II / AC Type II
Certifications and Standards
Grid Regulation
VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727
Safety Regulation
IEC62109-1, IEC62109-2
EMC
EN61000-6-1, EN61000-6-3
General Data
Operating Temperature Range (℃)
-25~60℃, >45℃ Derating
Cooling
Fan
Noise (dB)
<30
Communication with BMS
RS485; CAN
Weight (kg)
32
Size (mm)
670×420×233mm
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 years

System Architechture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running
system. - Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.

① DC Breaker for battery

② AC Breaker for grid and backup load
SUN 8K-SG: 250A DC breaker SUN 8K-SG: 80A AC breakerSUN 10K-SG:300A DC breaker SUN 10K-SG:80A AC breaker
SUN 12K-SG:300A DC breaker SUN 12K-SG:80A AC breaker

③ AC Breaker for grid and backup load
④ AC Breaker for home load
SUN 8K-SG: 20A AC breaker Depends on household loadsSUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
FAQ
1. What can we provide? We can provide solar panel,solar inverter,solar energy system.
2. Why choose us? A.Higher power generation B.Competitive price C.High quality standard D.Customized service
3. What services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash.
