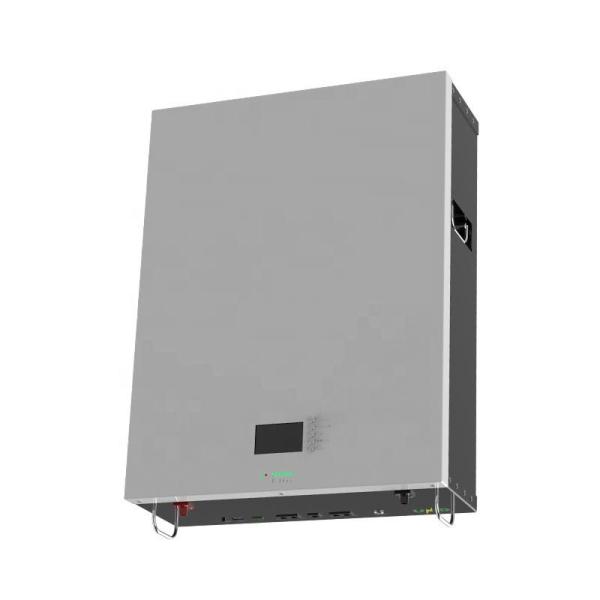

48V Household Solar Battery Storagy 5Kwh 10Kwh 20Kwh Lithium Ion Battery Powerwall
48V Household Solar Battery Storagy 5Kwh 10Kwh 20Kwh Lithium Ion Battery Powerwall
Specifications
Place of Origin :
china
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Capacity :
100Ah 150Ah 200Ah
Voltage :
51.2V
Weight :
62kg 79kg 98kg
Battery Type :
Lithium Ion, LiFePO4, Other
Internal Impedance (AC) :
≤30mΩ
Charge Temperature Range :
0℃ - 60℃
Description

48V Household Solar Power Energy Storagy 5Kwh 10Kwh 20Kwh Lithium Ion Battery Powerwall Systems

Products Description
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down.
Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining.
Use Power storage wall alone or combine it with other products to save money, reduce your carbon footprint and prepare your home for power outages.
Specification
Model No.
5000W
10000W
Nominal Voltage
51.2V (16Series)
Rated Capacity
100AH
200AH
Storage Energy Capacity
5120WH
10240WH
Internal Impedance (AC)
≤30mΩ
Circle Lifetime
≥5000 Circles @ 80% DOD, 25℃, 0.5C
≥4000 Circles @ 80% DOD, 40℃, 0.5C
Charging Voltage
56.0V + 0.5V
Max Continuous Operation Current
100A/150A (Optional)
Discharge Cut-off Voltage
45V + 0.2V
Charge Temperature Range
0℃ - 60℃
Discharge Temperature Range
-20℃ - 60℃
Storage Temperature Range
-40℃ - 55℃ @ 60% + 25% Relative Humidity
Dimensions
(L*W*H)
680*485*220mm ( Including the Bracket)
Weight
62kg
98kg
Communication Mode
RS232-PC, RS485 (B) -PC
RS485 (A)- Inverter, Canbus- Inverter
Parallel Connection
Support up to 10 sets of batteries in parallel
Certificate
UN38.3 / MSDS / UL1973 (Cell) / IEC62619 (Cell)
The target energy storage capacity will be achieved by different models of batteries in parallel.
48V/51.2V 100AH 5.12WH/PC
48V/51.2V 200AH 10.24KWH/PC
Details Images

Products Features and Advantages

※ 5inch big touch LCD Screen
※ Grade A cells with over 6000 times cycle life and offer 5 years extended warranty available to increase ROI
※ Build in intelligent BMS having protection functions including over-discharge, over-charge, over-current and over-high or low
temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell
※ Support max 16pcs parallel/stack power to 229kwh
※ Max charge and discharge 150A= 7680Wh to AC loading
※ Perfectly match over 16 brands hybrid inverters in the world
※ CTP tech to save battery size and reduce weight
※ Built in double industrial heavy-duty power switch to warranty battery safety
Product packaging
