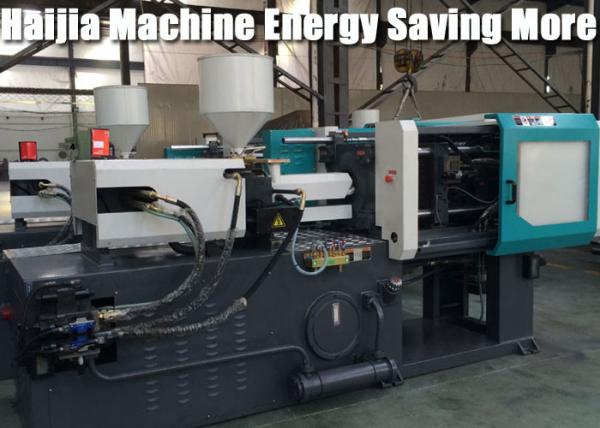

Thermosetting Injection Plastic Molding Machine , Horizontal Injection Moulding Machine
Thermosetting Injection Plastic Molding Machine , Horizontal Injection Moulding Machine
Thermosetting Injection Plastic Molding Machine , Horizontal Injection Moulding Machine
Thermosetting Injection Plastic Molding Machine , Horizontal Injection Moulding Machine
Specifications
Brand Name :
HAIJIA
Model Number :
HJ-140U
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
Western Union, L/C, D/P, T/T
Supply Ability :
100 sets per month
Delivery Time :
30 days
Packaging Details :
Standard export packing
Shot Size :
380 cm3
Injection Weight :
420 grams
Injection Pressure :
140 Mpa
Injection Rate :
135 grams
Ejector Tonnage :
33 KN
Pump Motor Power :
13 KW
Heating Power :
6 KW
Oil Tank Capacity :
290 L
Description

Thermosetting bakelite injection molding machine hydraulic Injection weight 420 grams

Bakelite injection molding machine is suitable for electrical products with high voltage resistance,dielectric property,high insulation and are resistance

Hihg corrosion resistance:it is suitable forplaces such as specimen and baffle plate of various projects.
flame resistance preformance:coming up to American UL-94Vo Level.

Heat Resistance performance:No heat crack happens under very high thermal deformation temperature (22-260 degree)

1) Large opening stroke
2) Two position transducers to control Clamping and Injection
3) Four stages of injecting, independent velocity and pressure control
4) Hydraulic mould height adjustment device

njection Unit A B
Screw Diameter mm 45 50
Screw L/D Ratio L/D
Shot Size (Theoretical) cm3 320 380
Injection Weight (PS) g 360 420
Injection Rate g/s 195 140
Injection Pressure Mpa 105 135
Screw Speed rpm
Clamping Unit
Clamp Tonnage KN 1400
Toggle Stroke mm 380
Space Between Tie Bars mm 420*420
Max.Mold Height mm 400
Min.Mold Height mm 120
Ejector Stroke mm 120
Ejector Tonnage KN 33
Others
Max.Pump Pressure Mpa 16
Pump Motor Power KW 15
Heat Power KW 6
Machine Dimension m 5.1*1.2*1.7


High machinery strength:products are strengthened by glass fiber to greatly improve its machinery strength,compared with other thermoset engineering plastics

Color preformance:Any color can be adjusted and produced,no baking finish is used again.It has fresh and real color closing to perfection

Processing preformance: it has stable size shrinkage,high precision smooth and beautiful surface.It can be proecessed by plastic injection Molding Machine,Mold compression molding machine and multi-station plastic injection molding machine
