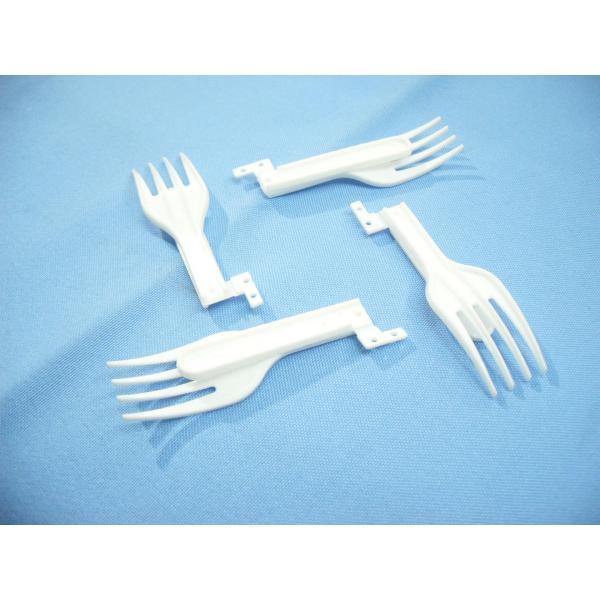

Plastic Folding Fork Energy Saving Injection Molding Machine 1800KN Clamping Force
Plastic Folding Fork Energy Saving Injection Molding Machine 1800KN Clamping Force
Plastic Folding Fork Energy Saving Injection Molding Machine 1800KN Clamping Force
Plastic Folding Fork Energy Saving Injection Molding Machine 1800KN Clamping Force
Plastic Folding Fork Energy Saving Injection Molding Machine 1800KN Clamping Force
Plastic Folding Fork Energy Saving Injection Molding Machine 1800KN Clamping Force
Specifications
Brand Name :
HAIJIA
Model Number :
HJF180
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
20-30days
Packaging Details :
Standard Export Package for Injection Machine
Structure :
Horizontal
Plastic Type :
Thermoplastic
Plasticizing Way :
Screw Type
Clamping Way :
Hydraulic & Mechanical
Automation :
Automatic
Transport Package :
Export Standard Packing
HS Code :
8477101090
Clamping Force :
1800KN
Description

Die positioning hole diameter 80~100 125~250 315 or more

Coaxiality of nozzle and positioning hole of die is less than 0.25 less than 0.30 less than 0.40

Adjustment method:

(1) This project should be carried out after the horizontal and vertical adjustment of the template and fuselage.

(2) Loosen the fastening bolts connecting the front and rear brackets of the injection seat guide rod with the fuselage; Loosen the locking nuts on the horizontal adjustment bolts on both sides of the guide rod front bracket. (Micro-injection molding is the largest Wechat public number in the injection industry. Welcome to our attention)

(3) Measure 4 points in circumference with vernier calipers of accuracy over 0.05mm, h1, h2, H3 and h4, adjust the bolts horizontally to make H1 = h3, and adjust the bolts up and down of the guide rod bracket to make h2 = h4, as shown in Figure 9-4. The adjustment error is controlled according to the tolerance given in the table above. Measuring the clearance between the inner hole at the tail of the barrel and the screw with a plug ruler makes delta 1 = delta 3 and delta 2 = Delta 4, as shown in Fig. 9-5. The level of the guide rod of the launching platform should be measured by the level meter, as shown in Fig. 9-6. After adjustment, tighten the fastening bolts on the front and rear guide rod brackets and the locking nuts on both sides of the front support respectively.

Plastic Folding Fork Energy Saving Injection Molding Machine 1800KN Clamping Force
