Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty
Specifications
Brand Name :
HAIJIA
Model Number :
HJF240
Certification :
CE ISO9001
Place of Origin :
Zhejiang ,China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
5000pcs per year
Delivery Time :
30 days
Packaging Details :
Standard Export Package
Structure :
Horizontal Injection Molding Machine
Usage: :
Electric Parts
Machine Weight: :
7T
Clamping Force: :
2400KN
Space Between Tie Bar :
530*510mm
Pump Motor Power :
18.5kw
Description

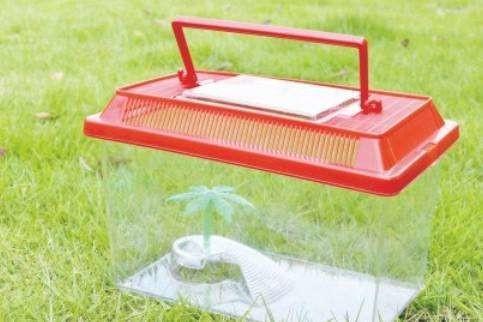

large plastic round fish tank machine lid Energy Saving injection molding water reservoir tank production line in China

Clamping system: Faster response, steable and high rigidity.

Injection system: Accurate and flexible, lower rejection rate.

Control system: omputer and simple operation,molding data memory system.

Power system: Energy saving, high efficient and precise.

Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.

Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.

Oil treasure: Filter of hydraulic oil, good for pump and valves.

Long working life: Imported spare parts and updated version.

Aftersales service: Professional & timely.

Computer Controller PLC

The Hydraulic Units
High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, t saves power by 30%~60%.A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.

Large Plastic Round Fish Tank Thermoplastic Injection Molding Machine Heavy Duty

3. Professional templates optimized design
Template by advanced finite element analysis software to optimize design, high rigidity, high strength, to meet the rapid impact conditions demand.
4. Powerful, friendly control system
Adopts professional controller and friendly interface, easy and fast operation, with good reliability.

7. Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
8. New frame structure
Simple and generous appearance, machine body force reasonable and stronger.
9. Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
10. High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder,pressure transducer and servo amplifier to get system closed-loop control

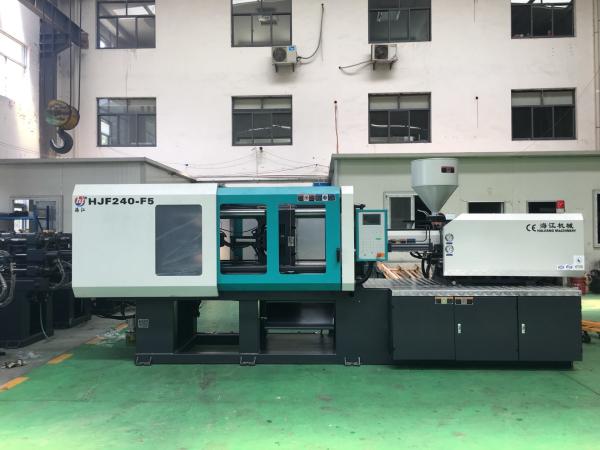

SPECIFICATION HJF-240
A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamp tonnage KN 2400
Opening stroke Mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340
