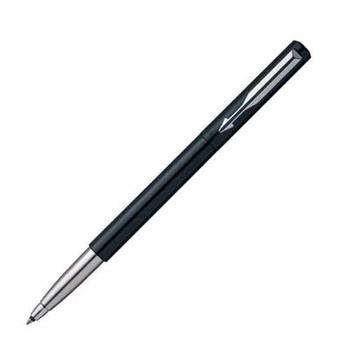

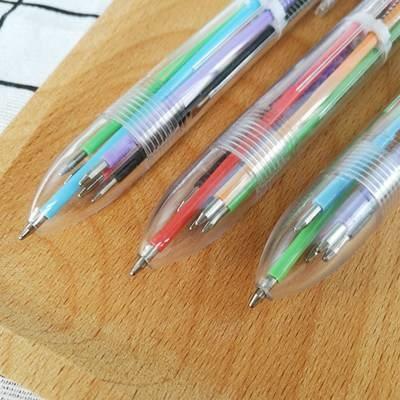

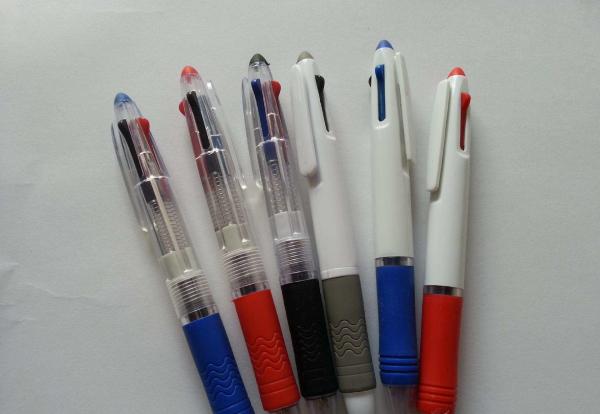

Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Special production of plastic pen tube pen cap injection molding machine  improving molded product stability
Specifications
Brand Name :
HAIJIA
Model Number :
HJF290
Certification :
CE ISO9001
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
USD $10,000--$620,000 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000set/sets per year
Delivery Time :
20-30days
Packaging Details :
Standard Export Package for Injection Machine
Toggle Stroke :
585
Space Between Tie Bars :
600*600
Max.Mold Height :
600
Min.Mold Height :
220
Ejector Stroke :
150
Ejector Tonnage :
75
Description

Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.

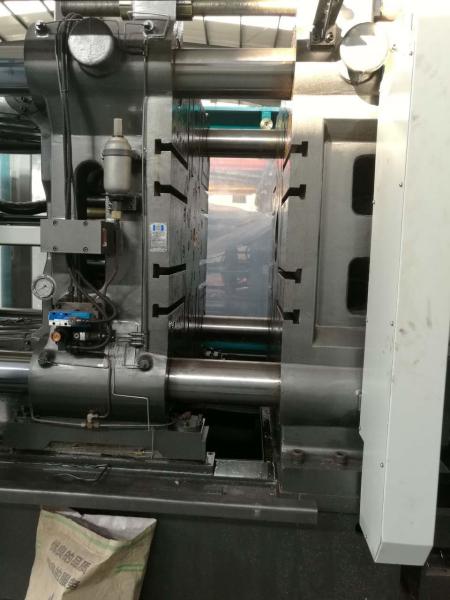

Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.

Special production of plastic pen tube pen cap injection molding machine  improving molded product stability

SPECIFICATION HJF290
Screw Type A B C
Screw Diameter Mm 55 60 65
Screw L/D Ration L/D 23.1 21 19.3
Shot Size(Theoretical) cm3 712 847 994.9
Injection Weight(PS) g 648 779.9 905
Injection Rate g/s 210 240 270
Injection Pressure MPa 205 168 143
Screw Speed rpm 0~180
Clamping Force KN 2900
Opening stroke Mm 585
Space Between Tie Bars mm 600*600
Max.Mold Height mm 600
Min.Mold Height mm 220
Ejector Stroke mm 150
Ejector Tonnage KN 75
Max.Pump Pressure MPa 16
Pump Motor Power KW 30
Heater power KW 15
Machine Dimension(L*W*H) M 6.0*1.6*2.1
Machine weight T 8.5
Oil Tank Capacity L 570
