Microgrid With Solar And Battery 6kw 14kwh One Step Solution
Microgrid With Solar And Battery 6kw 14kwh One Step Solution
Specifications
Brand Name :
ZT-TEK
Model Number :
ZT-ESSPLUS-6-51280
Certification :
IEC 62619-2022, UN 38.3
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
5GWh/Y
Delivery Time :
10weeks
Packaging Details :
Carton box
Solar :
15pcs of 600wp
Battery :
14.336kwh
Battery type :
LiFePO4
PCS :
6kW
MTTP :
1
Output :
AC, 1PHASE, 220~230V
Diesel gensets :
Yes, with connection plug
Description

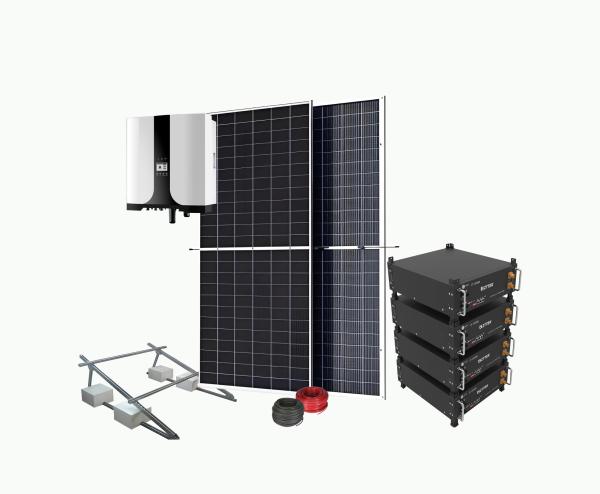

ZT-TEK ONE STEP SOLUTION FOR MICROGRID
Microgrid with solar and battery 6kw 14kwh one step solution

In a solar-powered microgrid, LFP batteries serve a critical role by storing excess solar energy generated during the day for use at night or during cloudy periods. Unlike traditional lead-acid batteries, LFP batteries are more durable, require less maintenance, and are less prone to thermal runaway. This makes them an ideal choice for microgrid systems, ensuring reliable power during grid failures or low sunlight hours, all while supporting sustainability and reducing reliance on fossil fuels.


Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

OFF-GridModelZT-ESSPLUS-6-51280
System parameterOutput VoltageAC, 1Phase, 220V ~ 230V
Output frequency50Hz/60Hz
Rated output power6kW
Max output power7.2kW
Overload capacity12kW, 10S
Rated output Current26.08A
Max output Current31.3A
CommunicationWIFI
　　　
PV sideConfig.15pcs* 600wp
Input Power W9000
Input DC current13.58A + 13.58A (2 Channels)
Input DC voltage V309V & 353V (2 Channels)
MPPT2
　　　
Battery sideTypeLFP
Voltage51.2V
Capacity14.336kWh
Charging current140A
Discharging current140A
BMSIncluded
Communication between BMS & PCSRS485
　　　
Grid / GeneratorsInput voltageAC, 1Phase, 220V ~ 230V
Input current26.08A
Max input current31.3A
Frequency50Hz/60Hz
PowerNo less than 6kw
　　　
EPS function Yes
Protections PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection
