Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Specifications
Model Number :
EK-B3S12A
Place of Origin :
Guangdong, China
Brand Name :
Enerkey
Packaging Details :
Bubble envelope or carton
MOQ :
10 pieces
Price :
$3.02/pieces 10-99 pieces
Base Material :
FR-4
Copper Thickness :
2oz
Board Thickness :
1.6mm
Min. Hole Size :
0.35mm
Min. Line Width :
0.25mm
Min. Line Spacing :
0.3mm
Surface Finishing :
HASL Lead Free
Rated discharge current :
12A
Unit quantity :
3S
Product name :
Lithium Battery Protection Board
Application field :
Battery protection
Battery type :
lithium Battery protection
Solder mask color :
Blue.green.red.black.white.etc
Keywords :
BMS
Usage :
lithium Battery protection
Custom quantity :
≥5K
Description

Electric Drill Modification Ternary Lithium Battery BMS with Peak Starting Current 60A

Product Description
Product Name :
Lithium Battery BMS
Product model:
EK-B3S12A
Unit quantity:
3S
Brand :
Enerkey
Product size :
L56 x W40 x T4(mm)
Electric Parameter
NO.
Project
Min.
Typ.
Max.
Unit
1
Parameter
Rated operating voltage B+ B-
12.6
V
Rated discharge current
12
A
Peak starting current
60
A
2
Overcharge protection
P+P- Input withstand voltage
33
V
Charge detection voltage
4.225
4.280
4.305
V
Charge detection delay time
0.5
1
1.5
S
Overcharge release voltage
4.030
4.050
4.130
V
3
Overdischarge protection
Discharge detection voltage
2.17
2.50
2.33
V
Discharge detection delay time
100
ms
Discharge release voltage
2.85
2.95
3.05
V
Protection release condition
Disconnect external load or charge self-recovery
4
Overcurrent protection
Overcurrent detects voltage
0.1
V
Overcurrent protection the current
20
A
Overcurrent detection delay time
100
ms
Protection release condition
Disconnect external load or charge self-recovery
5
Short-circuit protection
Short-circuit protection current
60
A
Short-circuit detection delay time
150
250
400
μS
Short-circuit protection release condition
Disconnect external load or charge self-recovery
6
Resistance
Main circuit on-state resistance
6
9
mΩ
7
Consumption current
Usually the operation consumes current
5
9
μA
8
Quiescent current
Current consumed during sleep
0.1
μA
9
Operating temperature
_
-40
25
85
℃
Product Use Tutorial
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A

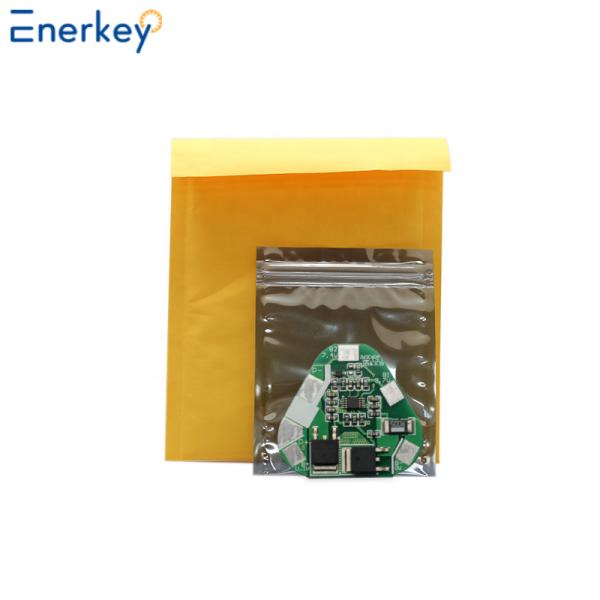

Packing&Shipping
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Shipment
Quantity (PCS)
1-10
11-500
501-5000
＞5000
Lead Times (days)
2
7
30
To be negotiated
Normally it will take 10-45days to arrive, the speed of customs clearance & shipping in buyers country that decides it arrive faster or delay,please understand.
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Company Introduction
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Electric Drill Ternary Lithium Battery BMS Board With Peak Starting Current 60A
Our Services & Strength
Enerkey owns a number of production lines and a number of cooperative factories, can complete customized and bulk orders, the monthly production capacity of 100K * sets
