Industrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding Generators
Industrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding Generators
Industrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding Generators
Industrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding Generators
Industrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding Generators
Industrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding Generators
Specifications
Brand Name :
GENWELD
Model Number :
WDF250
Certification :
CE
Place of Origin :
China. Chongqing
MOQ :
5 sets
Price :
USD 2000-2500 PER SET
Payment Terms :
T/T, L/C
Supply Ability :
100 units per month
Delivery Time :
30days after received 30% prepayment
Packaging Details :
Wooden case size: 790*610*60mm; Loading quantity:75/159/211sets(20GP/40GP/40HC)
Starting System :
Electric
Rated Auxiliary Output :
AC0.8Kw/240V
Engine Type :
4-Stroke
Packing Sizes :
740*550*545mm
Type :
Arc Welder
Electrode Code :
MMA:Ø1.6-Ø6.0mm ; TIG: Ø1.6-Ø3.2mm
Fuel Tank Capacity :
32 Liters
Epa Compliant :
Yes
Engine Displacement :
459cc
Packing Size :
790*610*660 mm
Welding Range :
LW200 model:30-200A; LW250model:30-250A
Fuel Type :
Gasoline
Engine :
460VE Gasoline
Description

Industrial-purposed Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding Generators

Product features:
1. Welding performance: adopt medium frequency permanent magnet single-chip control technology, strong power, small size and light weight.
2. The complete unit adopts mature &optimized frame structure, easy for operation and maintenance.
3. Auxiliary power output: AC 6Kw, can generate power and weld synchronously or independently.
4. Welding power with Stick/Cellulose down welding/lift Arc TIG functions.
5.Modularization design, maintenance convenient,the bulk structure more compact.

Specification sheet:

Model LW200 LW250
WELDING
Weiding Process MMA TIG MMA /CELLULOSE TIG
OCV 80V VRD off; 15V VRD on 0V 80V VRD off; 15V VRD on 0V
Current Range 30A/21.2V~200A/28V 30A/11.2V~200A/18V 30A/21.2V~250A/30V 30A/11.2V~250A/20V
Rated Current 200A 200A 200A 250A 200A 250A
Rated Voltage 28V 18V 28V 30V 18V 20V
Duty Cycle 100% 100% 100% 60% 100% 60%
Electrode Type Acid electrode, low hydrogon electrode etc steel wire, steeless wire,etc Acid electrode ,low hydrogon electrode,cellulose electrode etc steel wire ,steeless wire,etc
Electrode Diameter Ø1.6-Ø6.0mm Ø5.0mm capable of continuous welding Ø1.6-Ø3.2mm Ø1.6-Ø6.0mm Ø5.0mm capable of continuous welding Ø1.6-Ø3.2mm
GENERATING
Starting System Recoil Recoil
Alternator Material Cu Cu
Frequency(Hz) 50Hz 60Hz 50Hz 60Hz
Voltage 230V 120(120/240) 230V 120(120/240)
rated power 7.2kW 7.2kW
max power 7.5kW 7.5kW
THD ≤3% ≤3%
Running Time Welding:150A/26V@11.8h ,AC generating: 5.7kw@6.8h Welding:150A/26V@11.8h ,AC generating: 5.7kw@6.8h
Noise db[A] 7m 82 82
Insulation Grade F F
ENGINE
model GB460VE-2 GB460VE-2
Engine type OHV,Air Cooling,4 Stroke OHV,Air Cooling,4 Stroke
Displacement(cc) 459 459
PACKING DETAILS
Packing Dimensions 790*610*660mm 790*610*660mm
Net Weight 102kg 102kg
Certifications CE/EC EPA CE/EC EPA
Container Load
(20GP/40GP/40HC)		 75/159/211 75/159/211
transport Four wheels with two handle,lift hook on top Four wheels with two handle,lift hook on top

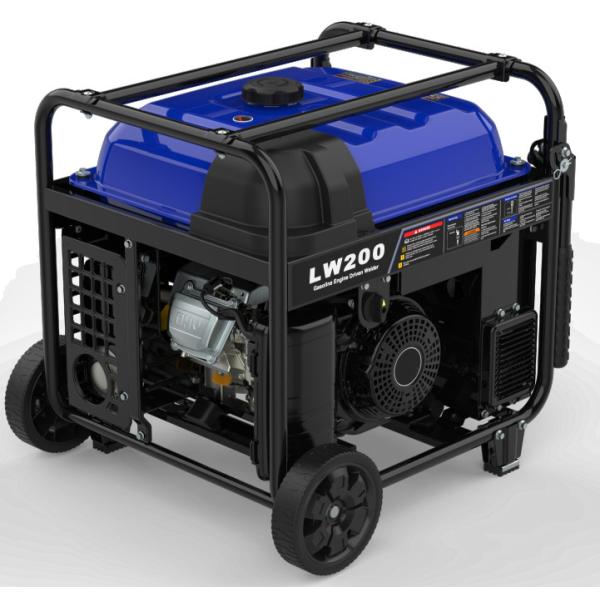

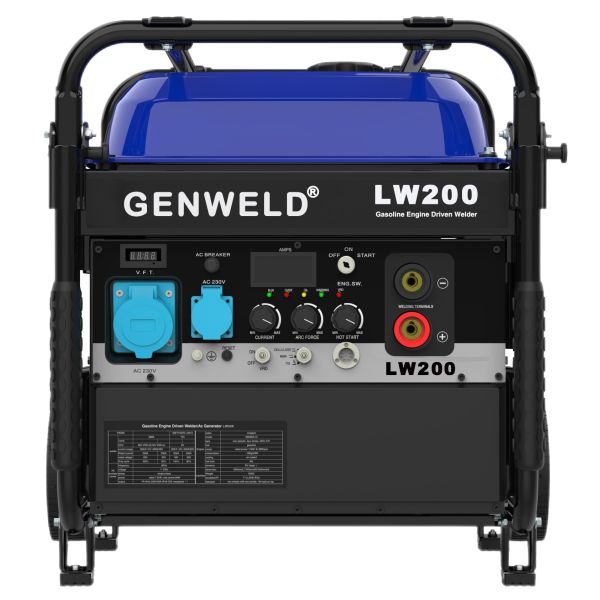

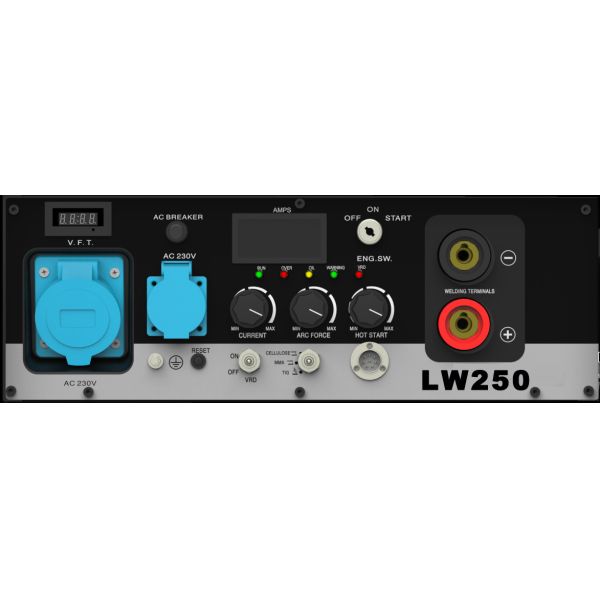

Product photos(Reference)

Industrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding GeneratorsIndustrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding GeneratorsIndustrial-purposed Portable Rated 200A /250A Gasoline MMA/Cellulose/TIG Welding Generators
