Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke
Specifications
Brand Name :
GENWELD
Model Number :
LWG-23YS
Certification :
CE
Place of Origin :
JIANGSU
MOQ :
5 Sets
Price :
USD3400-3700 / Set
Payment Terms :
T/T, L/C
Supply Ability :
100sets /month
Delivery Time :
30 days after received 30% prepayment
Packaging Details :
Seaworthy wooden case
Rated output（kw/kva） :
18/22.5
Max power kw/kva） :
19.8/24.75
Outline size：L*W*H（mm） :
2250*1000*1050
Net weight（kg） :
1000Kg
Noise :
78 dB
Engine brand :
Yangdong
Alternator brand :
Senci
name :
diesel power generator set
Description

Silent Diesel Generator Set 18Kw/23KVA YSD490D Water Cooling 4 Stroke

silent diesel generator set 18Kw/23KVA

Diesel Generator Set Model LWG-23YS
Manufacturer Jiangsu Senci Mechanical & Electrical Co.,Ltd.
Rated output(kw/kva) 18/22.5
Max power kw/kva) 19.8/24.75
Rated voltage(V) 400/230
Rated current(A) 32.4
Rated frequency(Hz) 50
Power factor 0.8
Steady state voltage regulation ≤±1
Steady state frequency regulation ≤±1
Steady state voltage fluctuation rate ≤±0.5
Steady state frequency fluctuation rate ≤±0.5
Transient-state voltage Regulation rata -20%～+25%
Transient-state frequency Regulation rata -15%～+15%
voltage recovery time(s) ≤1.5
Relative voltage adjustment range(%) ≥±5
Fluctuation Sine wave≥5%
Protection class IP33
Outline size:L*W*H(mm) 2250*1000*1050
Net weight(kg) 1000
Diesel Engine Model YSD490D
Origin Jiangshu
Type 4 Cylinder,vertical, water-cooling 4-Stroke
Rated power(kw) 18
Max power(kw) 21
Bore x Stroke(mm) 90×100
Displacement (L) 2.54
lubrication oil volume(L) 12
lubrication oil model 15W-50 or 15W-40(above API-CD level)
coolant capacity(L) 5.2(only engine volume)
Rated speed(r/min) 1500
Speed regulation Mechnical adjustment
Starting method 12V DC elcetric starting
Cooling method Closed water circulation cooling system
Fuel consumption(g/kw.h) ≤235
Oil consumption(g/kw.h) ≤0.25
Alternator Model S184G18D7
Brand Senci
Origin Jiangsu
Rated power(kw/kva) 18/22.5
Excitation method Brushless self-excitation
voltage regulation mode AVR
Rated voltage(v) 400/230
Phase Three-phase four-wire system
Level 4
Temperature rise(℃) 125
Protection class IP22
Insulation class H class
Adjustment range of No-load voltage ≥±5%

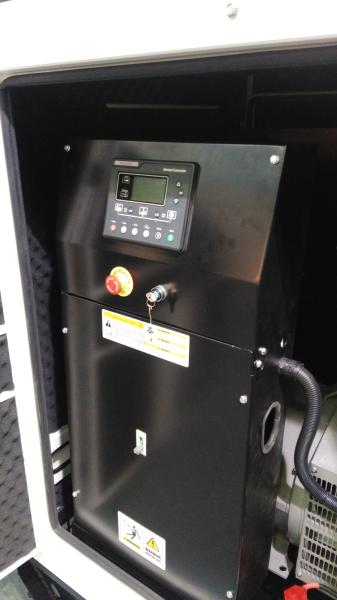

Control Unit Model HGM420(SmartGen)
LCD LCD show
Installation Four protection LCD display integrated control cabinet
Monitor project Voltage,current,frequency,water temp,oil pressure,oil temp, charging indicator,ect. Several protection functions.
Accessory No. Accessory Quantity Remark
1 Battery 1pc Installed
2 Battery cable 1set Installed
3 Muffler 1set Installed
4 Muffler elbow 1set Installed
5 Bellows 1set Installed
6 Shock pad 1set Installed
7 Engine original toolbox 1set Yes
8 Accessory files 1set Yes
