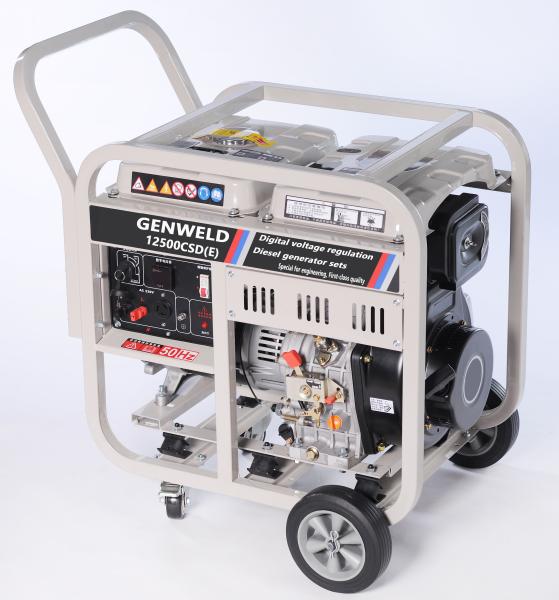

GENWELD 12500CSD(E) Digital Voltage Regulating Diesel Generator Set
GENWELD 12500CSD(E) Digital Voltage Regulating Diesel Generator Set
Specifications
Brand Name :
GENWELD
Model Number :
12500CSD(E)
Certification :
CE
Place of Origin :
JIANGSU
MOQ :
5 Sets
Payment Terms :
T/T, L/C
Supply Ability :
100sets /month
Delivery Time :
30 days after received 30% prepayment
Packaging Details :
Seaworthy wooden case
Rated output（kw/kva） :
52/65
Max power kw/kva） :
57/71.5
Description

1. High-efficiency pure copper wire motor, 4th generation automatic voltage regulator AVR, stable output and good power quality
2. Automatically shut off when lack of oil, effectively protect the engine
3. Standard overload and overcurrent protection to protect the generator from damage
4. First-line brand electrical components, stable quality and reliable performance
5. Equipped with shock-absorbing bracket, reducing vibration and long life
6. Square tube frame design, high strength of the whole machine
7. High-strength four-wheel structure, saving time and effort in transportation

Specification basic state
model 12500CSD(E)
type Overhead, four-stroke, air-cooled
Bore X Stroke 95X75mm
Piston displacement (L) 0.532
engine capacity
Maximum power 9KVA
continuous power 10KVA
Lubrication method Pressure combined with splash
fuel grade No. 0
Engine oil grade SAE10W30 or above class CC
Start method Recoil type hand start/electric start
Displacement 531mL
oil capacity 1.65L
Diesel capacity 13L
Voltage distortion rate <10%
power factor cosφ=1
Insulation class F
Rated voltage 220/380V
Rated frequency 50Hz
Phase three-phase congruence
Manufacturing date/number see certificate
Maximum ambient temperature <40℃
Net weight/KG 120
Gross weight/KG 123
Package Size

GENWELD 12500CSD(E) Digital Voltage Regulating Diesel Generator Set
