200A MMA Welding Generator
200A MMA Welding Generator
200A MMA Welding Generator
200A MMA Welding Generator
200A MMA Welding Generator
200A MMA Welding Generator
Specifications
Brand Name :
Lianwai
Model Number :
LWG210C
Certification :
CE
Place of Origin :
China
MOQ :
5 SETS
Supply Ability :
1000 SETS
Delivery Time :
20 work days
Packaging Details :
Carton
Welding process :
MMA
Welding current :
65-200A
Duty cycle :
60%/190A/27.6V
Auxiliary power output :
DC 1.5kW / 220V
Net weight :
65kg
Dimension :
600*500*550mm
Fuel :
Gasoline
Protection/Insulation class :
IP23
Description

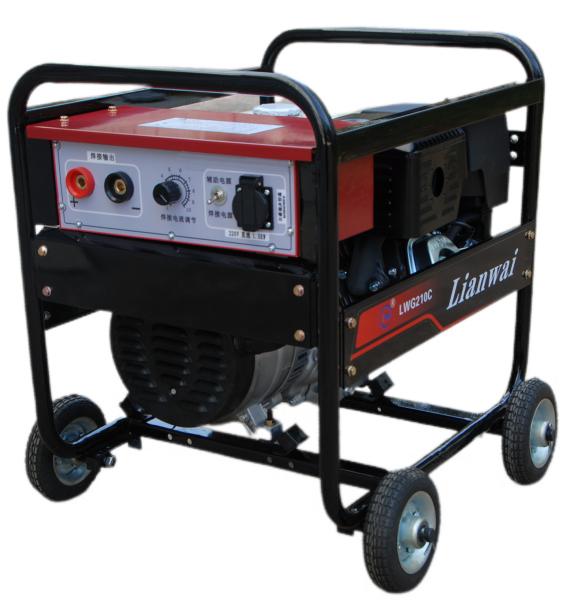

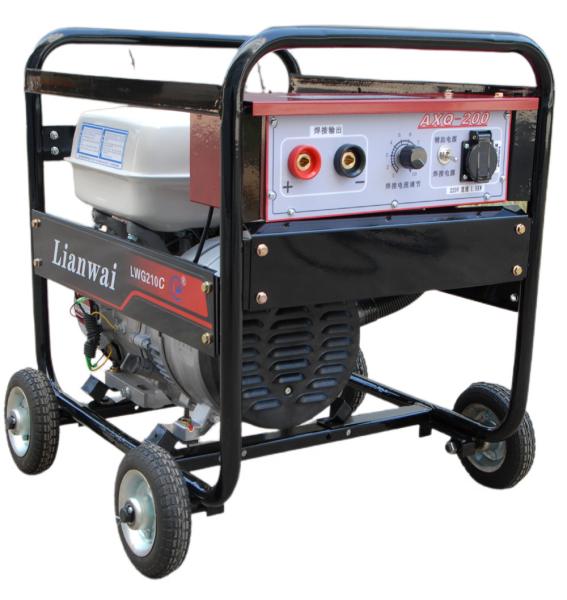

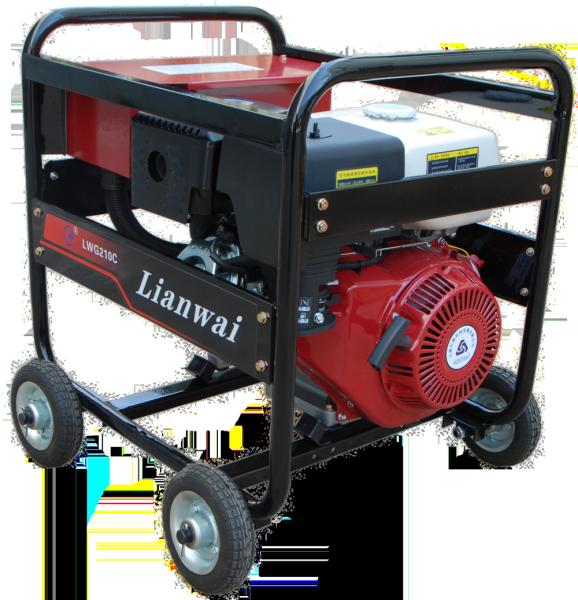

LWG210C 200A Gasoline Welding Generator

Introduction

LWG210C is a economic engine driven welder, which can output 200A welding current or DC 1.5kW 230V auxiliary power. Due to its small size, light weight, convenient movement, and self-generation, this machine can meet general welding demand (MMA), it can also be used as emergency lighting equipment for household emergency and some small service places.

Characteristics

1. Adopt MF generating technolog,the arc is stable and the performance is safe and reliable.
2. Can continuous weld Ȼ2.5--Ȼ4.0 electrodes, and output DC 1.5kW/220V auxiliary power for running grinding & lighting.
3. Compact structure,small size for transfer, only 65kg.

Application

1. Maintenance and repair of highway guardrails and power facilities,
3. Maintenance of fences & agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Welding of stainless steel and carbon steel materials
6. House emergency power supply.

Main specification sheet

Product Model LWG210C
Welding Generator Rated generator output power(Kw) 5.6
No-load voltage(V0) 65-70
Max welding current(Im) 200
Rated welding current(If) 190
Rated welding voltage(Vf) 27.6
Duty cycle(x) 60%
Engine Brand LW
Engine power 15.0Hp
Max rpm 3600
Starting Recoil
Lubricant alarm system Yes
Emission(cc) 420cc
Fuel capacity(L) 6.2
Lubricant capacity(L) 1.1
Fuel consumption(g/kw.h) 370
Overall unit Wire Diameter Capacity(d) ￠2.5-￠4.0mm
Rated auxiliary Power output(Kw) DC 220v 1.5Kw
Insulation Class F level 155℃
Net weight(kg) 65Kg
Overall Dimensions(L×W×H) 600*500*550mm

200A MMA Welding Generator

200A MMA Welding Generator

200A MMA Welding Generator

200A MMA Welding Generator
