S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
Specifications
Brand Name :
JTP
Model Number :
6D105
Certifiion :
ISO9001:2008;ISO/TS16949:2009
Place of Origin :
China
MOQ :
4pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000pcs per month
Delivery Time :
One month or one week if we have stock
Packaging Details :
Packed in carton firstly,and then reinforced with green sack for outer packing
Product Name :
PISTON SET
Number of cylinder :
6
Bore :
105mm
Length :
107.6mm
Pin size :
40mm
Car make :
Komasu
Description

Diesel engine piston / Forged Aluminum Piston S6D105 with pin size 40mm

Specifiions:

ENGINE PISTON ENGINE MODEL 6D105
Common Materials Forged Aluminum Alloy 4032 & 2618
Characteristics Resistance to abrasions & burn characteristics
Surface Treatment High wear resistance, perfect Storage oil and performance surface treatment

Description:

A series of engine models for Komasu as below, there are many models not include in this sheet, pls also feel free enquiry from us.

KOMASU RG8 12011-97772 8 142 　 　 50
KOMASU PF6T 12011-96504 6 133 136 　 50
KOMASU 6D95 6207-31-2110 6 95 94.2 51.2 30
KOMASU S6D95 6207-31-2141 6 95 94 51.2 30
KOMASU S6D95-2120 6207-31-2120 6 95 94 51.2 30
KOMASU S6D102 6735-31-2110 6 102 105.3 71.6 40
KOMASU 6D105 6137-31-2111 6 105 107.6 69 40
KOMASU S6D105 6136-31-2111 6 105 107.6 69.1 40
KOMASU S6D108 6222-31-2116 6 108 113.8 66.7 45
KOMASU S6D110 　 6 110 116.2 69.2 40
KOMASU S6D125 6150-31-2112 6 125 131.1 80.2 48
KOMASU S6D125(T) 6151-31-2171 6 125 131.1 80.2 48
KOMASU NH220 6620-31-2010 6 130 158.7 101.6 50.77
KOMASU 4D120 6113-31-2110 4 120 135 　 44
KOMASU 4D130 6114-31-2111 4 130 135 　 44

1) Common material: Aluminum Alloy (lighter in weight and higher thermal conductivity);Senior Cast Iron (heavier in weight, greater strength and resistance to wear); Heat-resisting Steel, Hypereutectic Al-Si Alloy, Hypoeutectic Al-Si Alloy, Eutectic Al-Si Alloy, Multi-Cast Iron and Ductile-Cast Iron etc.

2) Produce process: Casting, Forging, Melted Metal Squeezing.


3) Piston features: Phosphating, Top Oxidization, Top Molybdenium Disulfide, Sn(tin)Plated on Skirt, Graphite on Skirt, Alfin, Double Alfin, None Alfin, Steel Pieces, Drilling, Oil-cooling Channel, Three or Four Ring Grooves, Ceramic Spraying and Hard Iron Plating, etc.

4) Treatment: Sn Plated, Skirt Printing Graphite, Phosphating, Spray MoS2, Top Anodic Oxidation.

S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm

Competitive Advantage:

1. 100% New and quality guaranteed

2. in stock & fast delivery

3. full range items covering

4. 1 year Waranty

5. Service: most professional, efficient and reliable service

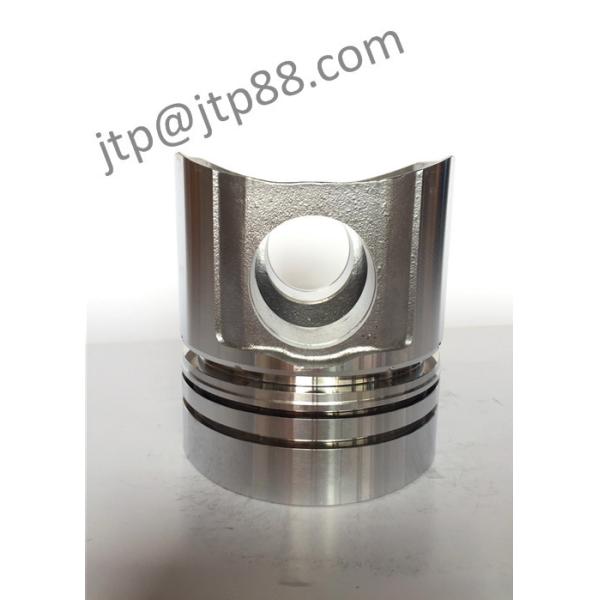

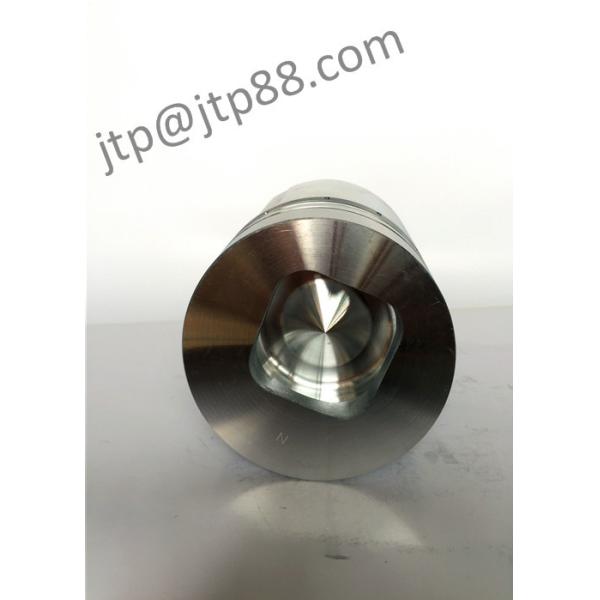

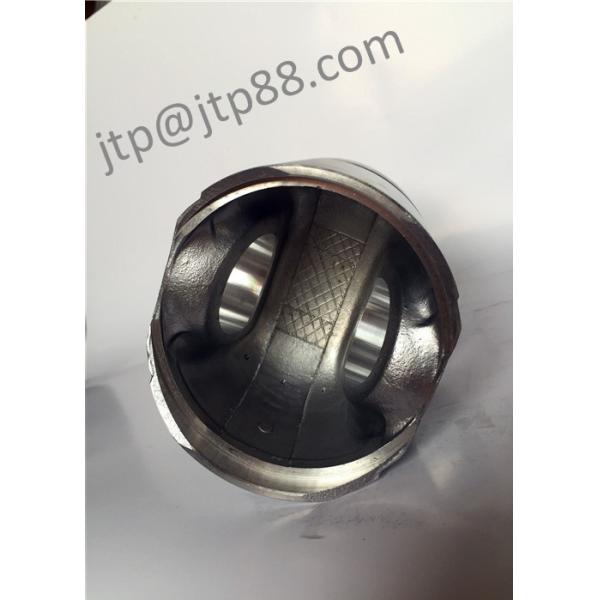

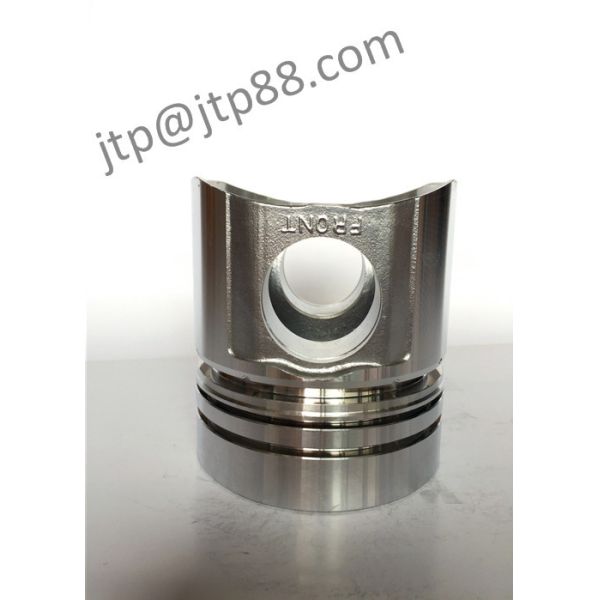

6D105 PISTON SET PICTURE AS BELOW:

S6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mmS6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mmS6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mmS6D105 Diesel Engine Piston / Icon Forged Pistons With Pin Size 40mm
