Item | Uint | Value | ||
Density | g/ cubic centimeters | more than 1.9 | ||
Compression Strength | Mpa | more than110 | ||
Shearing Strength | Mpa | more than 25 | ||
Bending Strength | Mpa | more than210 | ||
Bending Strength(Circumference) | Mpa | more than 400 | ||
Air tightness | Gas pipe | Mpa | 2.94 | No leak |
Oil pipe | 58.8 | |||
Surface breakdown voltage after wettingin normal air for 1 min with gap between electrodes of 30mm | KV | more than15 | ||
Parallel to laminate breakdown voltage ( in transformer oil of 90±2ºC) | KV | more than 25 | ||
Perpendicular to laminate breakdown voltage (in transformer oil of 90±2ºC,5min wallthickness 4mm ) | KV | more than 22 | ||
Dielectric loss factor 50 Hz | less than0.01 | |||
Leakage current (between gap of 500mm at 40 kv dc500mm40KV | MA | less than 1 | ||
Content of fiberglass | % | 70 | ||
Water absorbtion rate | % | less than 0.02 |
Product Range:
Sleeve Bearings:
Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Max. Length |
DU,SF-1 | 6mm | 8mm | 300mm | 305mm | 100mm |
DX,SF-2 | 10mm | 12mm | 300mm | 305mm | 100mm |
JF800 | 10mm | 12mm | 173mm | 180mm | 100mm |
FB090 | 10mm | 12mm | 300mm | 305mm | 100mm |
FB092 | 10mm | 12mm | 300mm | 305mm | 100mm |
JDB,JCB | 8mm | 12mm | 160mm | 180mm | 150mm |
FU | 1.5mm | 3mm | 50mm | 70mm | 70mm |
JGB | 1.5mm | 3mm | 300mm | 320mm | 100mm |
Flange Bearings:
Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Min.F.D. | Max.F.D. | Max. Length |
DU,SF-1 | 6mm | 8mm | 40mm | 44mm | 12mm | 53mm | 40mm |
JF-800 | 40mm | 46mm | 95mm | 105mm | 60mm | 144mm | 127mm |
FB090 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
FB092 | 25mm | 28mm | 300mm | 305mm | 35mm | 340mm | 90mm |
JDB | 10mm | 14mm | 120mm | 140mm | 22mm | 170mm | 100mm |
FU | 6mm | 12mm | 50mm | 60mm | 14mm | 70mm | 70mm |
JGB | 6mm | 12mm | 300mm | 320mm | 35mm | 340mm | 130mm |
FAQ:
Q1. Where is your company?
A: We are loed in Guangzhou City, Guangdong Province, China(Mainland).
Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB.
Q5. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers’ benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our advance:
1.Profession in diesel engine parts
2.Provide the most resonable service
3.The most compeitive price&goods
4The completly engine model and parts
5.Manage to finish the client's resonable demand
Basic type | Unit | B-21 High Load | B-06 Standard | B-03 General | B-01 Economic |
Static load | Mpa | 240 | 240 | 240 | 150 |
Dynamic load | Mpa | 160 | 150 | 100 | 30 |
Density | g/cm3 | 2.0 | 2.0 | 2.0 | 2.0 |
Max.speed | m/s | 0.20 | 0.20 | 0.20 | 0.10 |
Max.PV | MPa*m/s | 2.0 | 2.0 | 1.8 | 1.6 |
Coefficient of friction | - | 0.03~0.12 | 0.03~0.12 | 0.03~0.12 | 0.15~0.25 |
Working Temp. | ℃ | ±180 | ±180 | ±180 | ±120 |
SHORT-TIME WORK TEMPERATURE | ℃ | -180~+230 | -180~+230 | -180~+230 | -120~+140 |
Radial compressive strength | Mpa | 550 | 550 | 550 | 200 |
Hardness | HRM | 95 | 95 | 95 | 85 |
Linear thermal expansion factor | Um/m℃ | 13×10-6 | 13×10-6 | 13×10-6 | 30×10-6 |
Color | - | Black
| Black
| Black
| Black
|
OUR SHIPPING:

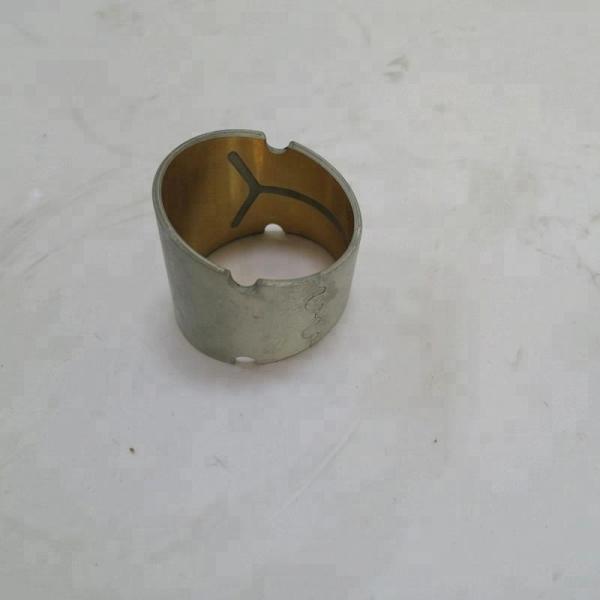

CONROD BUSHING PICTURE BE BELOW:
