Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04
Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04
Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04
Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04
Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04
Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04
Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04
Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04
Specifications
Brand Name :
JTP
Model Number :
FD35
Certifiion :
ISO9001:2008;ISO/TS16949:2009
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
5000pcs per month
Delivery Time :
5~10days
Packaging Details :
Packed in carton firstly,and then reinforced with green sack for outer packing
Material :
Alfin, Tin-coated
Condition :
100%new
OEM :
12010-01T04
Diameter :
102.5mm
Length :
98.2mm
Packing :
3.0+2.00+4.00mm
Piston pin size :
34*85mm
Warranty :
1 year
Original :
China
Piston comp :
59.2mm
Car make :
Nissan
Quality :
High quality
Surface :
Alfin, Anoziding, Bush, Coating
Piston features :
sn-plated
Description

Japan Piston set & Piston ring & Piston pin FD35 Diesel Engine Piston 12010-01T04


SPECIFIIONS:

NISSAN
FD35
Appliion: TRUCK
No. CyI: 4
Diameter: 102.5 MM
Piston OEM No. Compress Height Total Length Pin Size Feature
12010-01T04 59.3 98.2 34x85 w/al-fin
Piston Ring OEM No. Size1 Size2
12033-01T10 2.0+2.0+4.0
Cylinder Liner OEM No. Size Flange
11012-01T10 102.5x113.2x191.0 119.2x8.0+1.0
Engine Bearing OEM No. Main Bearing Con Rod Bearing Bush
12207-J6500 12117-01T00 12030-Z5000
Engine Valve (IN) OEM No. Head Diameter Stem Diameter Total Length
13201-01T00 48.5 9.0 130.5
Engine Valve (EX) OEM No. Head Diameter Stem Diameter Total Length
13202-01T00 39.8 9.0 130.5
Valve Seat OEM No.
Valve Guide/Sub Parts OEM No.

SHIPPINGA AND SERVICE :

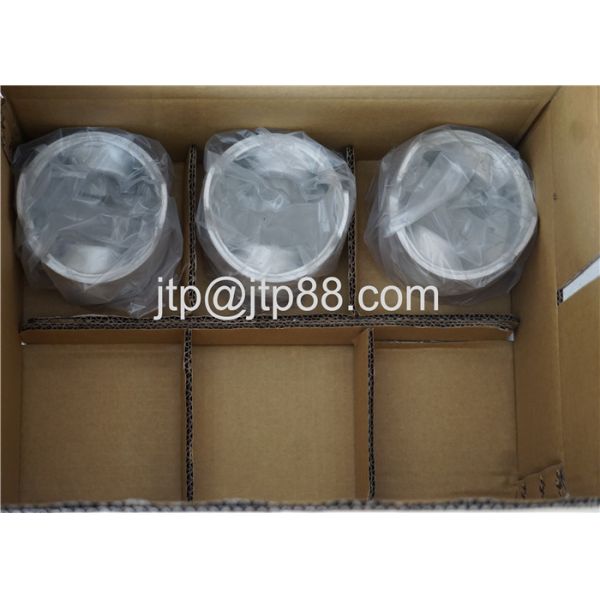

Packaging Carcon box, wooden box, or as customers' requirements
Shiping way by express, by air,by sea
Principle for small order, we can only accept 100% in asvance
substanitial order 50% advanced payment can be accepted
shipping at any port in China, depends on negotiation
Production time after receiving the payment(usually takes 3 days),we prepare the goods for you
Delivery time

depends on the shipping way

Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04

REMARKS:

1, Advanced technology, superb quality, reliability and honesty, satisfactory service

2, Reasonable price.

3, Considerate after-sales service.

4, Safe and fair cooperation with us.

5, We strictly adhere to OEM quality. Same quality and service in domestic and overseas markets.
WE ALSO HAVE OTHER BRANDS:

Mazda, Nissan, Mitsubishi, Hino, Isuzu, Toyota, Komatsu


OUR MAINLY ENGINE PARTS:
Piston, piston ring, cylinder liner

MATERIAL:

Piston: ZL109 Aluminum Alloy, Alloy cast iron, ZL108 Aluminum Alloy

Piston Ring: Cast iron, Alloy, Steel

Cylinder Liner Material: Boron-containing Alloy Cast Iron, steel

Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04

PRODUCT RANGE:

NISSAN FE6 12011-Z5801 6 108 103.5
NISSAN FE6T 12011-Z5768 6 108 103.5
NISSAN NE6T 12011-95074G 6 110 110.3
NISSAN NE6TA 　 6 110 110.3
NISSAN PD6 12011-96007 6 125 132
NISSAN PD6T 12011-96009 6 125 132
NISSAN PE6 12011-96518 6 133 132
NISSAN PE6T 12011-96565 6 133 132
NISSAN RD8 12011-97014 8 135 137.3
NISSAN RE8 　 8 135 137
NISSAN RF8 12011-97165 8 138 137
NISSAN 　 12011-97161 　 　 　

OUR ADVANTAGE:

1. High quality and competitive price.

2. Long life span, good sales-after service.

3. 100% new, strict inspection & test.

4. Standard export packing.

5. One year quality warranty.

6. Have strong stock, small order is acceptable

7. Various kinds are selectable with different car models.

8. Improve power and increase torque

9. Improve fuel economy and reduce fuel consumption

10. Reduce waste emissions and reduce environmental pollution

OUR FACTORY :

Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04

OUR PISTON SPECIFIION

Common

Materials

Aluminum Alloy (lighter in weight and higher thermal conductivity); Senior Cast Iron (heavier in weight, greater strength and resistance to wear); Heat-resisting Steel, Hypereutectic Al-Si Alloy, Hypoeutectic Al-Si Alloy, Eutectic Al-Si Alloy, Multi-Cast Iron and Ductile-Cast Iron etc;

Piston Process

 Casting, Forging, Melted Metal Squeezing;

Characteristics

 Germany, advanced technique & wear proof & high temperature resistant etc.
Piston Types

Solid Skirt Pistons, Shim Type Pistons, Strut Type Pistons, Ring Carrier Pistons, Strut with Ring Carrier Type Pistons, Keystone Groove Pistons, Oil Cooled Pistons;
Different Treatment

Phosphating, Top Oxidization, Top Molybdenium Disulfide, Sn(tin)Plated on Skirt, Graphite on Skirt, Alfin, Double Alfin, None Alfin, Steel Pieces, Drilling, Oil-cooling Channel, Three or Four Ring Grooves, Ceramic Spraying and Hard Iron Plating etc;

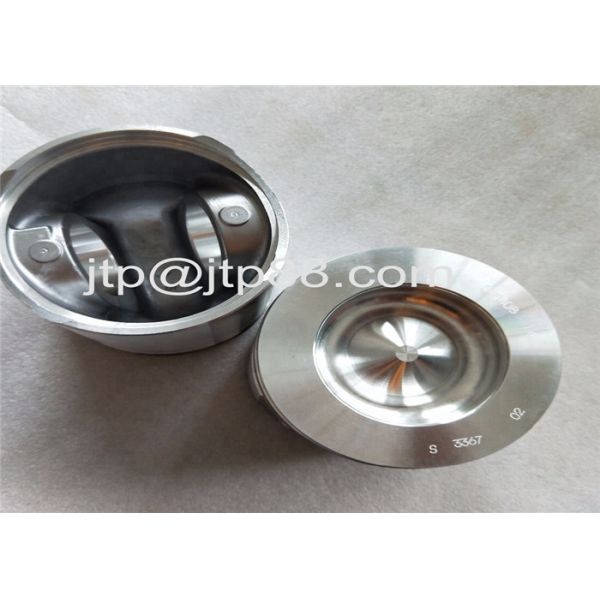

ENGINE PISTON PICTURE AS BELOW:

Japan Piston Set / Piston Ring / Piston Pin FD35 Diesel Engine Piston 12010-01T04

WELCOME YOUR ENQUIRY, WE WILL ALWAYS BE HERE SERVICE FOR YOU!
