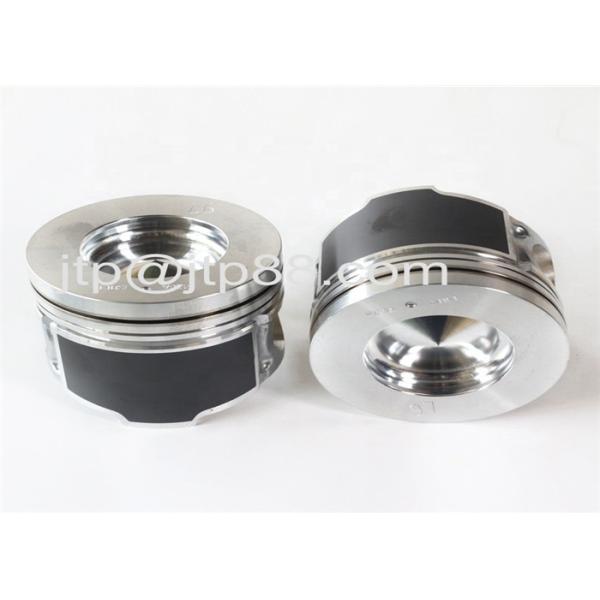

Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
Specifications
Brand Name :
JTP
Model Number :
D4AE
Certifiion :
ISO9001:2008;ISO/TS16949:2009
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
5000pcs per month
Delivery Time :
5~10days
Packaging Details :
Packed in carton firstly,and then reinforced with green sack for outer packing
Surface :
Alfin, Graphite,Tinned
Condition :
100%new
OEM :
23411-41410
Diameter :
100.0mm
Length :
110.7mm
Piston comp :
60.7mm
Piston pin size :
34*84mm
Piston ring sieze :
3.0+2.0+4.0mm
Car make :
Hyundai
Piston features :
sn-plated
Appliion :
Engineering Machinery Engine
Material :
Aluminum Alloy
Description

Machinery engine Piston for Hyundai D4AE Diesel engine Piston & Pin 23411-41410


SPECIFIIONS:

Item Name Piston with pin and clips Cyl. Bore 100mm
Engine Model D4AE Piston Ring 3.0DK/2.0/4.0mm
Engine Type Diesel Piston Pin 34*84mm
No. of Cyl. 4 Technology Alfin
Part No.

23410-41410

23411-41410

23411-41430

23411-41700

 Surface Treatment Tin Coated

PARAMETER OF PISTON :

CODE NO. MH0050X MODEL C50
CYLINDER NO. 4 HEAD TYPE NO. 4
TOTAL HEIGHT 50.5 mm COMP. HEIGHT 24.5 mm
CYLINDER DIA. 39 mm
RING COMP. OIL
1.2-2 mm 2.5-1 mm
PIN DIA. LENGTH
13 mm 31 mm
MOQ

1000PCS

REMARKS:


1, Advanced technology, superb quality, reliability and honesty, satisfactory service

2, Reasonable price.

3, Considerate after-sales service.

4, Safe and fair cooperation with us.

5, We strictly adhere to OEM quality. Same quality and service in domestic and overseas markets.

PISTON SURFACE TREATMENT

Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.

Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.

Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.

Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.

Related Products
Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410

SHIPING AND PACKING:

Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410

PAYMENT ATTENTION PLEASE:

Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410

One set for one engine repairing .

Your goods will be sent out in 1- 3 days after we received your payment ,

Your goods will be packed into the neutral paper carton , any requirement on packing ,please leave us message

Please fill in your detailed address and phone number for international express when you placing the order

More photos and detals , welcome to chat with us online

PRODUCT RANGE:

OEM No. Model CYL DIA OD*L
AA100-11-101 TOWNER 70 18 60
　 PRIDE 68 20 52
　 PRIDE 71 20 52
OKKY1-11-SAO PRIDE 1.3 71 20 52
OK480-11-SAO K2700 92 31.75 75
OK6ZI-II-SAO JS 94.5 30 76
OK4Y2-11SAO K3600AL 100 34 82
K4YO-11-SAO K3500AL 100 34 82
OK7Z1-11-SAO JT3.0 98 30 79
　 DOHC 78 20 61
　 SOHC 78 20 61
OK7ZO-11-SAO K2400 92 28 75
OEM No. Model CYL DIA OD*L
23410-02700 ATOS 1.0 66 17 46.5
23410-02470 ATOS 1.1 67 17 46.5
23410-22400 ACCENT/G4EB 75.5 18 47.5
23410-22612 VERNA/G4EK 75.5 18 47.5
　 1.6 77.5 20 59
23410-26111 ELANTRA 1.6/G4ED 76.5 18 47
　 1.8 82 20 59
　 2 82 20 59
　 SONATA 2.0 NEW 86 　
　 SONATA 2.4 NEW 88 　
　 SANTE FE 3CAAD 88 　
　 69.6 69.5 23 57
　 79.47 79.5 26 64
23410-41200 K1/D4AF 104 34 84
23410-42703 D4BB 91.1 29 75
23410-42411 D4BA 91.1 29 75
23410-42544/42411 D4BH 91.1 29 75
　 T1 91.1 29 74
23410-22260 G4EH 71.5 18 47.3
23410-22511 ACCENT 1.5 75.5 18 47
23410-2B000 AVANTE 1.6 77 18 52
VECTRA 1.6 F16D 79 18 55
23410-27924 ACCENT/D4EA 83 28 65
　 ELANTRA 1.8 81 20 49
　 SONATA 2.0 86 21 60
　 SONATA 2.4 88 21 60

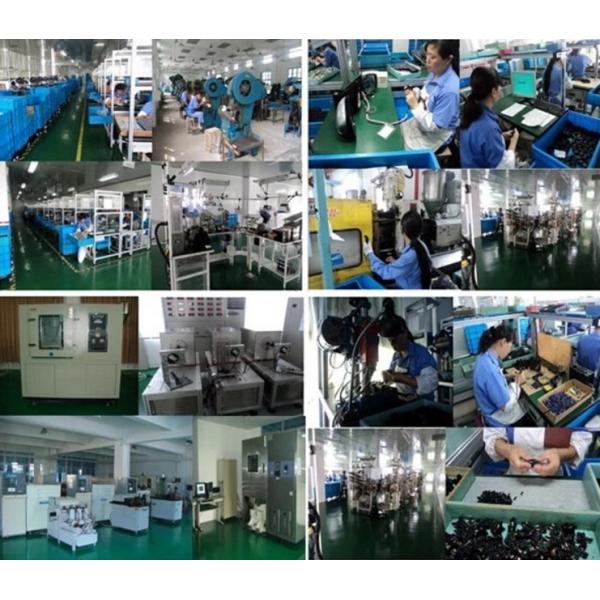

OUR FACTORY:

Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997, specializes in producing cylinder liners, piston products, covering more than 30 brands, more than 300 kinds of engine type, widely used in various heavy diesel engine (such as Mitsubishi, Isuzu, Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an independent development department, quality control department and laboratory, has a number of highly qualified management personnel and research and development, innovation and strong, All of our products has passed ISO9001: 2000 quality system certifiion. We have now formed the production capacity of annual output value of 500 000 Cylinder / piston, more than 95 percent of products exported to Southeast Asia, Middle East, South America, Africa and other regions, is your reliable partner.

Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410

FAQ:

Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410

1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5.How to buy with you?
You can use "Chat now!" or email to us.

6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8.What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

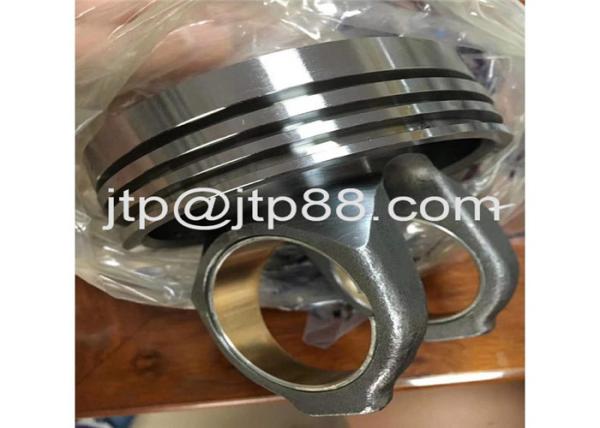

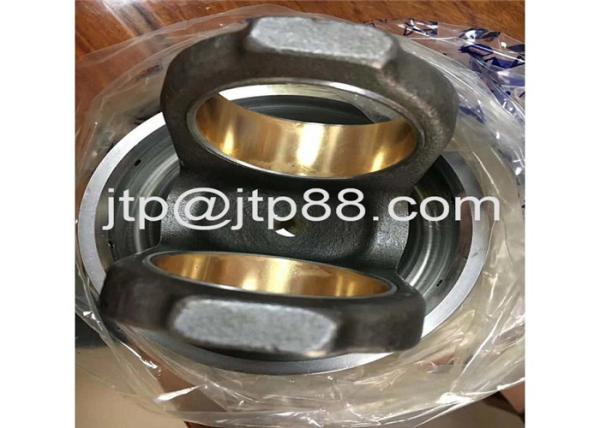

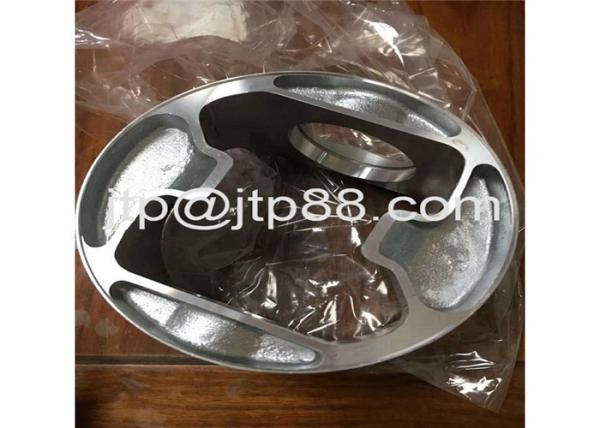

ENGINE PISTON PICTURE AS BELOW:

Machinery Engine Piston For Hyundai D4AE Diesel Engine Piston & Pin 23411-41410
