Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
Specifications
Brand Name :
JTP
Model Number :
T2500
Certifiion :
ISO9001:2008;ISO/TS16949:2009
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
5000pcs per month
Delivery Time :
Usually within one week after receive payment
Packaging Details :
Packed in carton firstly,and then reinforced with green sack for outer packing
Type :
Cylinder liner
Color :
White/ Black
Diameter :
87.9mm (SF) 88.9mm (FF)
Total Length :
189mm
Number of cylinder :
4
OEM :
0636-10-311 S501-23-051(F)
Warranty :
100000 Miles
Size :
STD
Car make :
Fit for Mazda
Quality :
High quality
Material :
Aluminum Steel
Shipping :
By sea, by air, by express
Description

Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)

SPECIFIION:

MAZDA
XA T2500 (S5)
Appliion: TRUCK
Number of Cylinders 4
Cylinder dia. 88.9 MM
Swept volume 2522 ccm
Piston OEM No. Compress Height Total Length Pin Size Feature
S501-23-200
S501-99-111		 60.4 103.4 28x73.5 w/al-fin
Piston Ring OEM No. Size1 Size2
1456-23-206 2.38+2.38+4.76
Cylinder Liner OEM No. Size Flange
0636-10-311 88.9x96.9x191.0 101.0*3.8+0.8
Engine Bearing OEM No. Main Bearing Con Rod Bearing Bush
0527-23-110 0527-23-105 S501-11-213
Engine Valve (IN) OEM No. Head Diameter Stem Diameter Total Length
S501-12-111 40.5 9.0 115.0
Engine Valve (EX) OEM No. Head Diameter Stem Diameter Total Length
S501-12-121 36.0 9.0 114.8
Valve Seat OEM No.
Valve Guide/Sub Parts OEM No.

Chemical Ingredients Of Cylinder Liner(%)
No. Name of Material C S Si P Mn Cr B Cu Ni V+Ti Mo Mechanical Properties
1 Boron Cast Iron 2.8~3.6 <=0.12 2.0~2.7 <=0.5 0.7~1.2 0.3~0.5 0.04~0.08 Brinell Hardness>210HB,
σb>=200Mpa
2 Boron Copper Gray Cast Iron 2.8~3.6 <0.2 2.0~2.7 <=0.5 0.7~1.2 0.2~0.5 0.04~0.08 Right amount Brinell Hardness>210HB,
σb>=240Mpa
3 Vanadium, Titanium Gray Cast Iron 3.0~3.6 <0.2 2.0~2.7 <=0.5 0.6~1.2 0.2~0.5 >=0.3 Brinell Hardness>210HB,
σb>200Mpa
4 Molybdenum Nickel Copper Gray Cast Iron 2.8~3.6 <0.2 1.8~2.4 <=0.3 0.5~1.0 0.2~0.5 0.3~0.6 Right amount Right amount Brinell Hardness>210HB,
σb>235Mpa
5 Bainite Gray Cast Iron 2.7~3.3 <0.10 1.7~2.5 <=0.3 0.3~0.7 0.~0.5 Right amount Right amount Right amount Brinell Hardness270~330HB,
σb>350Mpa
6 Nickel Copper Gray Cast Iron 2.8~3.7 <0.12 1.8~2.7 <=0.3 0.5~1.2 0.15~0.5 Right amount Right amount Brinell Hardness>200HB,
σb>196Mpa

FEATURES:

Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)


1- 8 production lines and strong casting ability for cylinder liners;


2- Wet and dry cylinder liners;


3- Slip Fit (FF), Press Fit (SF);


5- Oxidation phosphor reason and the plasma, laser hardening;


6- DIN/ISO4383 and ISO/TS16949 certified;
--
We have machine centers, CNC machines, casting lines, special and professional engineer teams to design and measure cylinder liner that are why we develop the more than 30 types per year.
Our cylinder liners are equipped with thousands of new engines in the domestic market.
--
We have also exported cylinder liner to the U.K., EUROPEAN, AMERICAN and many other countries.
--
We have the ability to make the products according to customer's samples and drawings and hope to cooperate with the new customer.

OUR COMPANY:

Guangzhou Teikuko Auto Parts Co., Ltd. was founded in 1997, specializes in producing cylinder liners, piston products, covering more than 30 brands, more than 300 kinds of engine type, widely used in various heavy diesel engine (such as Mitsubishi, Isuzu, Nissan, Hino, BMW, Mercedes, Cummins, etc.), Our company has an independent development department, quality control department and laboratory, has a number of highly qualified management personnel and research and development, innovation and strong, All of our products has passed ISO9001: 2000 quality system certifiion. We have now formed the production capacity of annual output value of 500 000 Cylinder / piston, more than 95 percent of products exported to Southeast Asia, Middle East, South America, Africa and other regions, is your reliable partner.

Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)

ADVANTAGE:

1. High quality and competitive price.

2. Long life span, good sales-after service.

3. 100% new, strict inspection & test.

4. Standard export packing.

5. One year quality warranty.

6. Have strong stock, small order is acceptable

7. Various kinds are selectable with different car models.

8. Improve power and increase torque

9. Improve fuel economy and reduce fuel consumption

10. Reduce waste emissions and reduce environmental pollution

DESTRIPTION:

CUMMINS 6BT 3904166 6 101.0(FF) 200 　
　 　 　 　 102.0(FF) 　 　
MAZAD R2(NEW) R2B6-10-311 4 85.0(SF) 163 PF
　 　 R2B6-10-313 　 86.0(FF) 　 　
MAZAD RF/R2 R201-23-051 4 85.0(SF) 165 　
　 　 　 　 86.0(FF) 　 　
MAZAD S2/B2200 1456-23-051 4 87.9(SF) 167 　
　 　 　 　 88.9(FF) 　 　
MAZAD T2500 0636-10-311 4 87.9(SF) 189 　
　 　 S501-23-051 　 88.9(FF) 　 　
MAZAD K2400 　 4 91.0(SF) 92.0(FF) 167.5 　
MAZAD E2700 0527-23-051 4 91.0(SF) 191 　
　 　 V101-23-051 　 92.0(FF) 　 　
MAZAD HA/T3000 SE01-23-051 4 94.0(SF) 95.0(FF) 189 　
MAZAD SL/T3500 SL01-23-311 4 99.0(SF) 193.5 PF
　 　 SL01-23-313 　 100.0(FF_ 　 　
KIA KIA.M 　 4 80.0(FF) 127.3 　
KIA JS OK65A-10-311 4 94.5(FF) 168 　
KIA JT OK75A-10-311 4 101.5(FF) 165.5 　
　 　 　 　 　 　 　

FAQ:

1.Do you have other engine model?
Yes, we have a lot of engine model like 6D22, 8DC9, NT855, etc.

2.Are you trading company or manufacturer?
We are an engine parts trading company, a distributor of some manufacturers.

3.How long is your delivery time?
About 120 days. By DHL or TNT about 14 days after payment.

4.Do you provide samples? Is it free or extra?
Sorry we don't provide samples. Our minimum amount is ONE piece.

5.How to buy with you?
You can use "Chat now!" or email to us.

6.What kind of parts you supply?
We supply PISTON, PISTON RING, LINER, GASKET KIT, BEARING, etc.

7.If out of stock, how much time do you need to transfer from factory?
Piston ring is made in Japan need 5-6 month to transfer from Japan if out of stock.

8.What information should I let you know if I want to get a quotation?

To get an accurate quotation, please let us know the exact part name, quantity, quality level and trade terms like EXW, FOB and so on. More details provided will help.

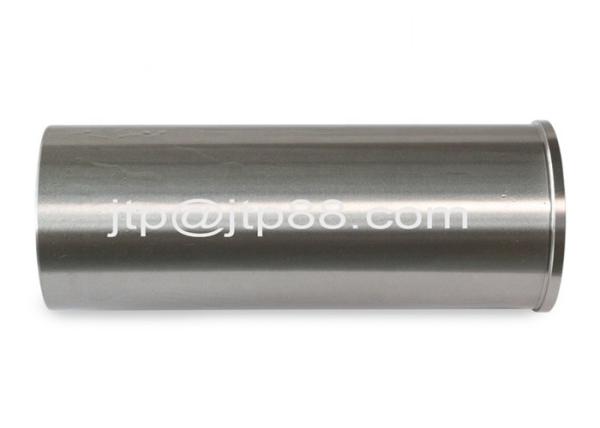

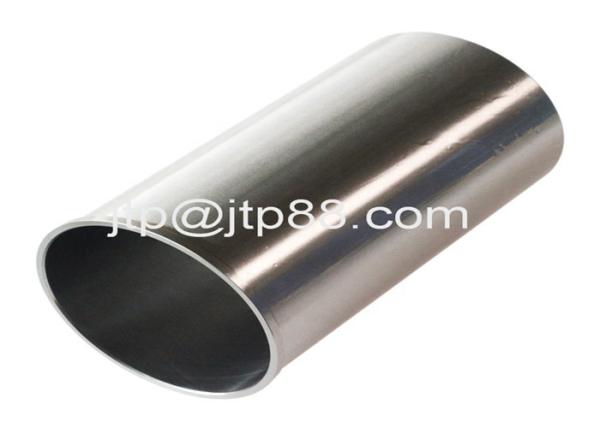

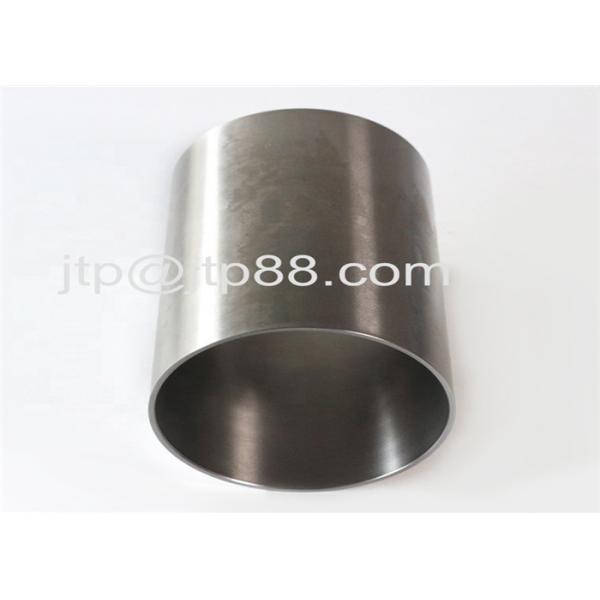

CYLINDER LINER PICTURE AS BELOW:


Piston Liner Kit For XA T2500 Forklift Parts Cylinder Sleeve 0636-10-311 S501-23-051(F)
