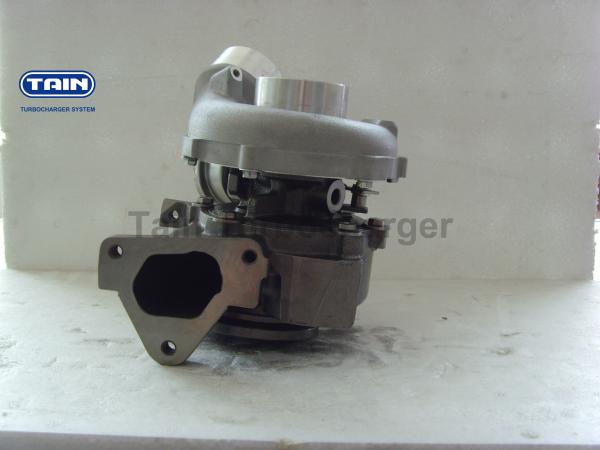

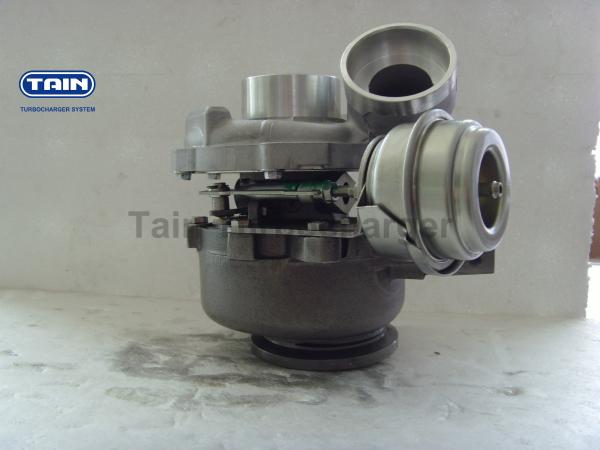

709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611
Specifications
Brand Name :
Tain turbo
Model Number :
GT1852V
Certification :
ISO 9001-2000
Place of Origin :
China
MOQ :
2PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS/month
Packaging Details :
Neutral Packing
Model :
GT1852V
Application Engine :
Sprinter OM611
Application Car :
Mercedes Sprinter E / C class
Power :
141HP
PN :
709835-5002
Weight :
7.5Kgs
Description

GT1852V 709835 709836 Complete Turbo fit Mercedes-Benz Sprinter OM611 A6110960799

PRODUCTION DETAILS

♦ PART NO.

709835-0001 709835-0002 709836-0001 709836-0003 709836-0004

♦ OEM No.

A6110960799 A6110960399 6110960899

A6110960899 A6110960999

♦ CHRA No. 703890-0045

♦ MODEL GT1852V

♦ Balancing test <0.5Mg.mm / 150000RPM

♦ Condition

This is a high quality brand new turbocharger which is well balanced with safe package.

♦ Package

anti-rust paper + plastic bag + PE foam + corrugated box

♦ APPLICATION

Turbo No.

 Application Power OEM Engine Code

709835-0001

Mercedes Benz E Class W210

 104HP A6110960799 OM611
　

Mercedes Benz C Class W202

 141HP A6110960399 OM611

709836-0001

 Mercedes Benz Sprinter Van 141HP 6110960899 OM611Euro3

SPEAR PARTS BOM

Compressor Wheels Turbine Wheels Chra No.
436131-0021 704580-0001 703890-0045
Beraing Housing Back Plate Heat Sheild
722282-0013 701335-0003 433112-0001
Turbine Housing Actuator 　Nozzing ring
709494-0001 434855-0025 　704014-0017
Cartridge Calibration Date 　 　
140000 RPM<0.5G unblance weight<50mg.mm

DIMENSION

Compressor Wheels 436131-0021

709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611

blade A(mm) B(mm) C(mm) D(mm) E(mm)
6/6 36.8 52 4.8 26 5.08

709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611

Shaft&Wheels 704580-0001

709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611

blade A(mm) B(mm) C(mm) D(mm) E(mm)
9 44.5 39.9 8.3 7.88 5.08

709835 709836 Complete Turbo GT1852V Model 141HP Power For Mercedes-Benz Sprinter OM611

Spear Parts Material

Turbine wheel K418
Turbine shaft 42CrMo
Compressor wheel C355(Aluminum casting)
Bearing house HT250(Gary iron)
Journal bearing CW713R
Thrust bearing Brass bar
Thrust collar & spacer 42CrMo

WHO WE ARE

Tain turbo is a specialized turbocharger and turbo parts manufacturer in Wuxi,China.

Established in 1997,covering over 4000 square meters.Tain devote ourselves to offer the best service.

Tain currently supply more than 1000 types of cartridges and also other turbo parts.Tain is not just a manufacturer,but also a supplier of customized OEM products.

Thanks to our professional technicians and years of experience,Tain wins a good reputation,high evaluation among our customers.

WHAT WE SUPPLY

Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035

Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
