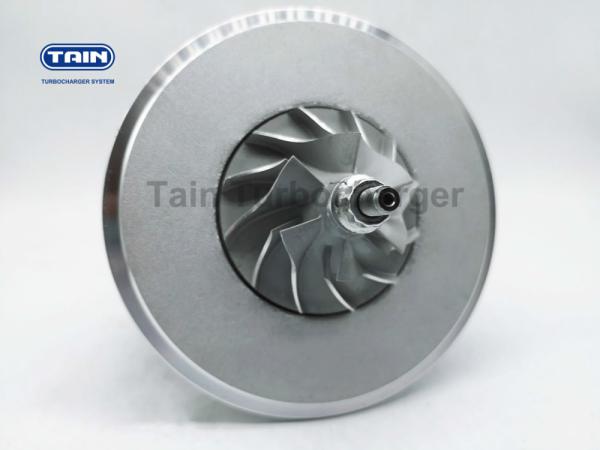

TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236
TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236
TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236
TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236
TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236
TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236
TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236
TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236
Specifications
Brand Name :
Tain turbo
Model Number :
TA3107
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, D/P
Supply Ability :
500 pcs per month
Delivery Time :
3-5 work days
Packaging Details :
Neutral Packing
Model :
TA3107
Turbo No. :
465776-0001 , 465776-0003 , 465776-0004 , 465778-0001 465778-0004 , 465778-0005 , 465778-0007 , 465778-0009 465778-0011
SN NO. :
409172-0026
Application :
Perkins Agricultural 3.9L 64KW T4.236
OE NO. :
2674398
Material :
K18+C355+ HT250
Description

TA3107 Turbo Cartridge Core Assembly 465776-0001 465778-0021 For Perkins Agricultural 3.9L 64KW T4.236

DESCRIPTION


—— Model :

TA3107


—— Turbo No. :

465776-0001 , 465776-0003 , 465776-0004 , 465778-0001
465778-0004 , 465778-0005 , 465778-0007 , 465778-0009
465778-0011 , 465778-0018 , 465778-0021 ,466346-0002


—— OE NO. :

2674398


—— Balancing Test :

<0.5Mg.mm / 150000RPM


—— Condition:

Brand new


—— Fitted Cars :

Perkins Agricultural 3.9L 64KW T4.236

—— Material

turbine wheel: K418

compressor wheel: C355

bearing house: HT250 Gray iron
Turbine wheels & compressor wheels size information
Turbine Wheels
(A) Inducer (B) Exducer Blades
65 49 11
Compressor Wheels
(A) Inducer (B) Exducer Blades
40.56 60.1 6/6
OTHER MODELS WE SUPPLY


Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset:

HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035

Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26

TIAN TECHNICIAL TEAM


Our technical team was composed by one advanced engineer with 15 years

experience engineers and four engineers who are very professional in this field.

They are familiar with turbocharger system and product structure and dimension.

They are mainly responsible for source selection,quality control,dimension

inspection and product development.Thanks to them,currently we can supply over

300 types of turbochras and always keep our products quality in a high level.
