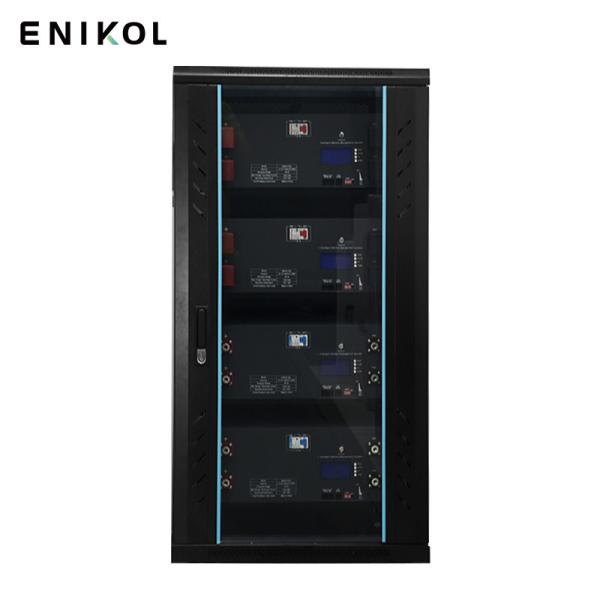

Solar Energy Products 24v 48 Volt Lithium Bms 100ah 200ah Lifepo4 Akku 48v Battery Lithium Ion
| Product Model: | ESK-2420CR | ESK-4810CR | ESK-4805CR | ||
| Type of Battery: | Lithium Iron Phosphate | | | ||
| Type of Battery: | 16S1P | | | ||
| Max parallel: | 64sets | | | ||
| Rated capacity: | 200AH(5120WH) | 100AH5120WH | 50AH(2560WH) | ||
| Rated voltage : | 25.6v | 51.2v | 51.2v | ||
| Charging voltage: | 29.2V | 58.4V | 58.4V | ||
| Max charging current : | 100A | | 50A | ||
| Max continuous discharge current: | 100A | | | ||
| Weight: | 43kg | 43kg | 27kg | ||
| Display: | LCD | | | ||
| Dimension (L* W * H) mm: | 460*442*117 | 460*442*117 | 442*360*132.5 | ||
| Warranty : | 5 years | | | ||
| communication faction: | CAN/RS485 or dry contact | | | ||
| communication faction: | ≥6000 times | | | ||
| Charging temperature: | 0℃ to +55℃ | | | ||
| Operating temperature: | -20℃ to +65℃ | | | ||
| Protection function: | overcharge protection,over discharge protection,over-current protection,short circult protection,over temperature protection and low voltage alarm | | | ||
