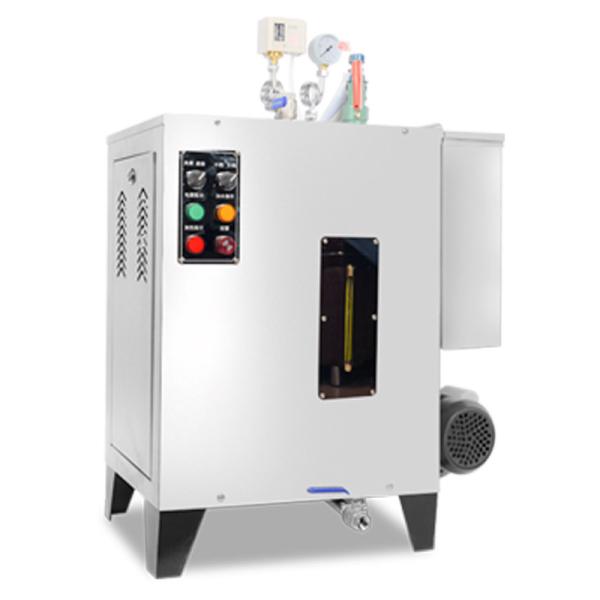

Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Enligy
Price :
$829.00/Sets 1-99 Sets
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
Kyrgyzstan
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
High Pressure
Dimension(L*W*H) :
750*520*1050 mm
Weight :
80 kg
Key Selling Points :
Energy saving
Product name :
Vertical electric superheated steam boiler generator
Keywords :
superheated steam generator
Design fuel :
Electricity
Steam Capacity :
50kg/H
Thermal efficiency :
98%
Rated working pressure :
0.4Mpa(4bar)
Material :
Special Boiler Steel Plate
Steam temperature :
151 Degree
Voltage :
380V/50Hz
Description

Electric Superheated Steam Boiler Generator 50kg/H 36 Kw High Pressure

Vertical electric superheated steam boiler generator steamer for food textile laundry cleaning washing industry 50 kg/h
1. Elesteam brand steam generator has nearly 100% thermal efficiency with original energy conservation system, reducing heat loss, saving electricity more than 15% .
2. The smart mini electric steam boiler with steam capacity 65kg/h are smart fully automatic operated with accurate computerized circuit board.
3. Safer than ever with 6 protection systems: pressure regulator system, Overpressure automatic protection, water lack protection, dry-fire protection, problem alarm system, overheat system.
4. Almost instant steam within 5 minutes
.The electric steam boiler adopts high quality electrical heated tube which heats the water rapidly . It uses stainless steel material with high compression strength, the working life is 5~10 times longer than common tubes.
5. Easy to install and assemble
What you need to do is only connecting the steam generator to your device with a pipe which can output the steam .

Power
36 kw
Evaporation
50 kg/h
Voltage
380 V
Pressure
0.4 Mpa
Steam temperature
151 ℃
Current
60 A
Weight
80 kg
Dimension
700*460*1050 mm (L*W*H)

Detailed Images
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure

Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure


Widely Used & Multifunction
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure
1. Laundering , washing
2. Food proccessing
3.Industrial washing
4. Sauna bath room
5. Biological and medical industry
6. Sterilization and hygiene
Advanced and sophisticated components

  • Operation panel

All operation is automatic and smart, you just need to press the button to maneuver the steam generator machine. Easy to operate for high efficiency.
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure

  • Operation and control system

The operation and control system of steam generator is very accurate with sophisticated electric components.

  • Water Pump

The water pump of steam generator adopts copper cores with high quality,covered by anticorrosive material,making it durable with long lifespan.
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure
Electric Superheated Steam Boiler Generator 50kg/H 36kw High Pressure

  • Heating tube

The heating tube of steam generator adopts 304 stainless steel material and coated by anticorrosive material. It can keep working in above 1000 ℃,and no any corrosion or incrustation scale forming.
