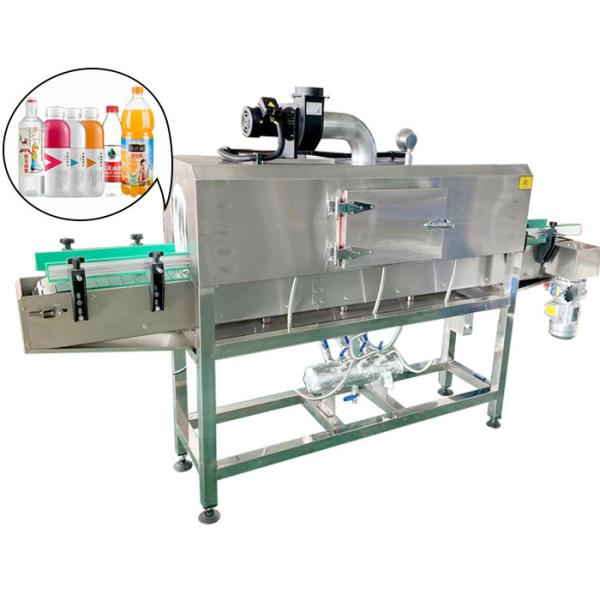

Automatic Steam Shrink Tunnel Machine 900W Plastic Wrap Packaging Machine

Automatic Plastic Wrap Packaging Machine Steam Shrink Tunnel Equipment Is Sus 304 Stainles With 24kw Steam Generator

Steam Shrink Tunnel Machine description:

The Steam shrink tunnel machine is a new generation of shrinkage machine, Steam shrink tunnel is made of stainless steel with heat preservation, it not only saves energy, but also match with the international safety standard. using steam unique thermostat and the temperature diffusion is uniform, widely used in the bottle mineral water, soda and other food beverage industry, as well as cosmetics, shampoo and hardware electronics need to shrink film Use of packaging.

Quick Detail:

· 304 stainless steel housing

· Match 24KW steam boiler

· Shrink speed can be adjusted

· Can shrink bottles of various shapes

· Steam shrink machine can be fully automated

· Label Material PVC, PET, OPP, etc.

· The shrinking tunnel can be customized

· 6 security protection

· Up to 15% energy savings

· 1 Year Warranty

Plastic Wrap Packaging Machine Specifications:

Steam shrink tunnel machine (EN-2030)

Steam shrinking tunnel machine Advantages:

High Flexibility
Accommodate containers up to diameter 200 mm
and height 300 mm
40 to 120 BPM shrinkage capability
Accept empty or filled container
Accept plastic, aluminium or glass container
Variable speed conveyor adjustable within a broad range

Steam Distribution System
Tool-free adjustment
All Steam Pipes open/close respectively depend on needs
Easy Steam Pipe format reset for quick bottle changeover
Allow precise application of steam to specific points on container
Each Steam Pipe individually adjustable for steam volume, flow and rotary nozzle position

Industrial Safety Standard Compliance
Emergency stop switch Short circuit protection
Automatic shut down at low water level Waterproof design
International standard Industrial electricity adaptor Thermal shield

Easy to Operate
Low maintenance
Simple to understand
No special training required
Quick changeover from one container size to another

Applications:

Widely used in the bottle mineral water, soda and other food beverage industry, as well as cosmetics, shampoo, chemical and hardware electronics need to shrink film use of packaging.

FAQ

Q: What's the difference of "Steam Shrink Tunnel" and "Shrink Tunnel?
A: Steam Shrink Tunnel is one of three major types of Shrink Tunnels. Other two types are Hot Air Convection Tunnel and Radiant Infrared Tunnel.

Q: How to choose a type of Shrink Tunnel?
A: Basically, a Hot Air Convection Tunnel is used for tamper evident sleeve; a Radiant Infrared Tunnel is good for dark color neckbands; a Steam Shrink Tunnel is the best option for full body sleeve.

Q: What tunnel is recommended when graphics and registration are critical?
A: Steam Shrink Tunnel. It provides even but not excessive temperature so that the graphics and registration can be kept precisely and maintain good shape.

Q: What tunnel is recommended for containers with volatile or aerosol products?
A: Steam Shrink Tunnel. Volatile or aerosol products are low-flash and inflammable. Steam Shrink Tunnel supplies even but not excessive temperature. It shrinks wrappers evenly and quickly, and then cools containers down fast.

Q: What materials of sleeves are used for processing in a Steam Shrink Tunnel?
A: Mainly PVC, PET & OPS, while new varieties are being developed from time to time. PVC is the most common material which is the easiest to control. It is low-cost less but not environmentally friendly. PET has the highest shrink percentage. It is environmental and versatile that can be used with special attributes like a matte finish or velvety texture. OPS is one of the most expensive materials. It has the lowest vertical shrink and produces the most consistent result, particularly on squeeze bottles.

Q: What is the specialty of our Steam Shrink Tunnel?
A: We have special designs for multipurpose, a patented steam distribution system with tool-free adjustment, and a separate steam generator ideally for nearly any work space.

Q: Why us?
A: Attitude is altitude, then details can mean succeed or fail. Most of our technicians have been working in this industry for over ten years. They are all experienced and always ready to help. Please send us samples of containers and sleeves before placing an order. We will use our Shrink Tunnel to test them well and find you a solution.
