Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Enligy
Price :
$2,999.00/Sets 1-99 Sets
Warranty of core components :
1 Year
Core Components :
Enligy
Structure :
Water Tube
Pressure :
High Pressure
Fuel :
Gas-fired,Diesel,LPG,Propane
Dimension(L*W*H) :
800X760X2180 mm
Weight :
350 KG
After-sales Service Provided :
Engineers available to service machinery overseas
Product name :
Steam Generator
Application :
Industrial Production
Design fuel :
Gas-fired,Diesel,LPG,Propane
Keywords :
30kva diesel generator
Type of boiler :
High Performance Boiler
Steam Capacity :
100kg/h
Steam temperature :
171
Rated working pressure :
0.7Mpa(7bar)
Description

Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style

Steam 30kva Diesel Generator Boiler Price Power Station Waterwall Panel 80kw-750kw Fire Hot Style Food Sales Color Energ

Comprehensive Introduction

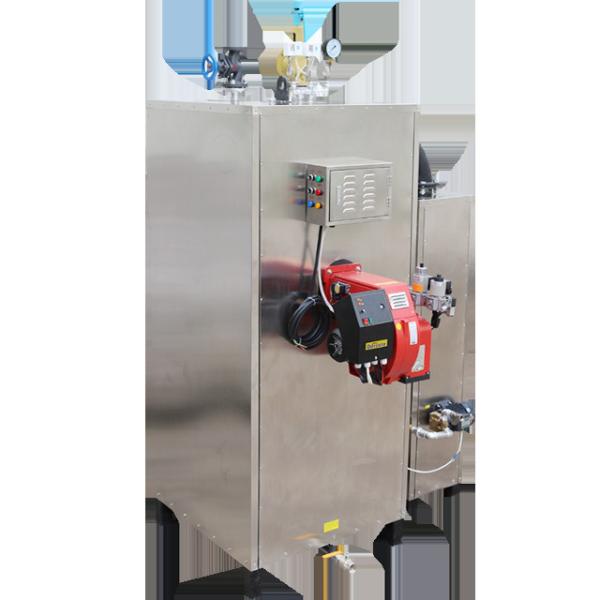

The gas steam generator produces pure steam by firing gas (including natural gas,liquefied gas, LPG, propane).The main components are gas burner, water tank, water-feeding pump, controlling system, furnace, pressure controller, pressure gauge, safety valve, sensor of water level. Comparing to traditonal steam boiler(coal, wood,pellet,biomass fired), gas steam boiler is more eco-friendly and efficent, without men on duty
The gas steam boiler is widely used in food cooking, clothes flat ironing, industrial cleaning, equipment cleaning, sauna room, sterilization, central heating etc.
Our advantages
1.High energy-saving efficiency
The gas steam generator adopts high-quality burner, designed with vertical 2 return-trip structure, the burning level is higher with over 90% thermal efficiency .
2. High steam capacity
The gas powered steam generator can output steam in 10 minutes and evaporates 300kg/h.
3. Easy to operate
The gas powered steam generator with steam capacity 300kg/h are smart fully automatic operated with accurate computerized circuit board.All functions are dispalyed on the control panel, the working process like steam temperature and pressure adjustable and controllable.
4. Highly safe
Safer than ever with 6 protection systems: pressure regulator system, Overpressure automatic protection, water lack protection, dry-fire protection, anti-explosion system.
5.With national patent certificate
The gas steam boiler is patented product with China patent certificate, guaranting the quality and cost performance, always environment-friendly with few noise and no smog.

Parameters
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Evaporation
100 KG/H
Steam pressure
0.7 Mpa
Designed fuel
diesel, gas, liquefied gas
Steam temperature
170 Degree celsius
Gas consumption
8.5m3/h(natural gas)
7 m3/h(liquefied gas)
7KG/h(diesel)
Voltage
380 V
Water tank volume
49L
Water pressure
1.05 Mpa
Waste outlet diameter
DN40
Steam outlet diameter
DN20
Smoke outlet diameter
159mm
Weight
350 KG
Dimension
800*760*2180 mm
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Detailed Images
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Advanced conponents
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style

Germany burner

Saving fuel consumption 30% off
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style

Easy-operate panel
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style

Pressure controller and gauge
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style

Electric circuit board
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style

Pressure gauge
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style

Safety valve
Certifications
Steam 30kva Diesel Propane Fired Generator 80kw 750kw Gas Fire Hot Style
Packing&Shipping
The steam generator product will be packed with wood material to make the delivery safe, freight way by air or by sea.
After Sales Service
After sales service
1.During the 1 year warranty time, the steam generator could be renewed if suffers bugs not by man-made intentional way. You can enjoy free maintenance service from us.
2. out of the 1 year warranty time, the steam generator maintenance service will be charged.
Company Introduction
Dongguan Zhengqi'an technology company is a famous manufacturer that produce electrical automatic steam generator, steam boiler ,steam cleaning machine , smart steam ironing machine.
Established for 10 years , we owned marvelous reputation in the steam generator industry. Our clients are around the world, from Ameria continent to Europe countries.For longtime successful cooperation, our clients esteem us with high compliment.
Dongguan Zhengqi'an technology company keeps high quality rigorously all the time. Every procedure of the pruct is under strict inspection and advanced equipment. So our steam generator gained leading edge and great reputation for long time.
Welcom to visit our factory ! We are honored to cooperate with you all the time .
