FHD Resolution Micro Lcd Display Module 1080P 3000 Nits For Operational Inspection
FHD Resolution Micro Lcd Display Module 1080P 3000 Nits For Operational Inspection
FHD Resolution Micro Lcd Display Module 1080P 3000 Nits For Operational Inspection
FHD Resolution Micro Lcd Display Module 1080P 3000 Nits For Operational Inspection
Specifications
Brand Name :
ENMESI
Model Number :
R6
Certification :
CE,FCC,ROHS,CCC
Place of Origin :
Shenzhen,CHINA
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union etc
Supply Ability :
5000pcs/month
Delivery Time :
7 work days
Packaging Details :
gift box
Type :
OLED display module
High Resolution :
1080P
Brightness :
3000 NITS
FOV :
51°
Exit pupil :
8mm
Description

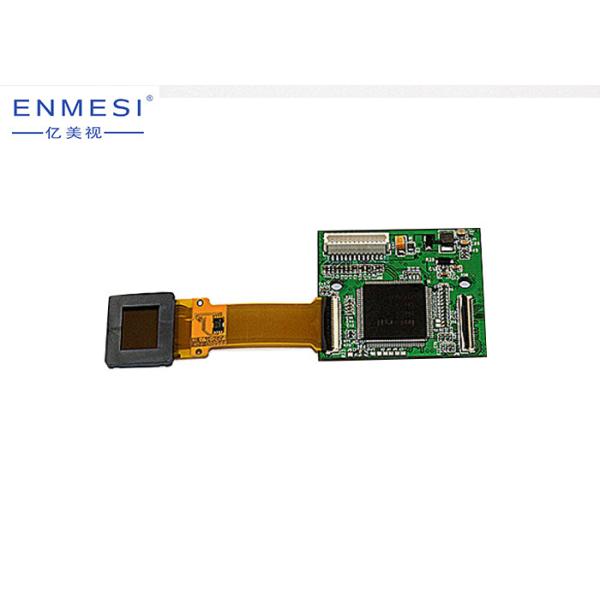

Monocular Micro Display Module FHD Resolution Micro Oled Display For Operational Inspection

Theare are the following solution:

Smart glasses application service solution -- Operational Inspection​

Display Details

Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.7"
Quantity monocular 1 screen
FOV 51°
Pupil distance 63mm(Fixed pupil distance)
Eye relief 15mm
Exit pupil 8mm
Brightness 3000 nits
Distortion 0.76% (Pincushion distortion)
Frame Rate 60Hz
Number of colors 24bit (16777K)
Supply voltage +5VDC
Current <200mA
Number of pairs 24bit (16777K)
Size 37mm * 33mm
Weight 9.5g

Technical Points Of Application Of Smart Glasses In Operational Inspection​

  1. Identification technology: The computer vision combined with sensors, through the image algorithm to recognize the face / Certificate / label / code / equipment object, displays the corresponding information of the target.
  2. AR function: calculate the position and angle of the camera image in real time, and overlay the corresponding text, image, video, 3D animation model and other information technologies in real time.
  3. Integrated management: emancipate hands, provide the first perspective, real-time transmission of front-end information, and realize the management purpose after background integrated processing (system / equipment / data, etc.).

  4. Remote collaboration: remote audio and video transmission of front and rear stations, used for remote collaboration, difficult consultation

(1 to 1 / 1 to many), remote guidance of back end to front end.

Application Of Power Field Operational Inspection

Combined with GPS, the visual inspection route of electric power field is established, and sensors and modular control units such as thermal imager, intelligent inspection flashlight, laser ranging and industrial microscope are integrated to collect information of electric power equipment on site, so as to effectively improve the efficiency of daily inspection.

FHD Resolution Micro Lcd Display Module 1080P 3000 Nits For Operational Inspection

Application Of Industry 4.0 Operation Inspection

  • Add animation / pictures and words on the real scene through smart glasses to improve the equipment maintenance efficiency of on-site maintenance personnel.
  • After receiving the notification of equipment abnormality / failure, the front desk staff shall go to the site for field investigation.
  • Before departure, the staff scan the dispatch system to generate the corresponding two-dimensional code of the equipment, download the facility status information to the smart glasses; after arriving at the scene, the equipment status information, maintenance records, operation or operation instructions and other information in the glasses will be transferred out and displayed on the glasses screen for the staff to inspect and carry out maintenance and other operations on site.

Application Of Medical equipment Operation Inspection
​Through the intelligent glasses remote cooperation (multi person) function, experts can guide the troubleshooting and maintenance of medical equipment in the first time without arriving at the scene, especially for the maintenance of high-precision and complex equipment, saving a lot of time and labor costs, reducing the probability of equipment downtime.
FHD Resolution Micro Lcd Display Module 1080P 3000 Nits For Operational Inspection
Tag: OLED display module, Micro display module, monocular screen, binocular screen, 1080p display module.
