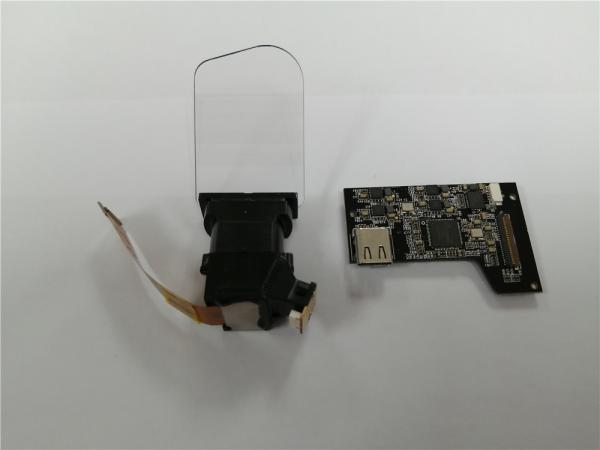

MIPI 0.39 Waveguide LCD Display Module LCoS For Education
MIPI 0.39 Waveguide LCD Display Module LCoS For Education
MIPI 0.39 Waveguide LCD Display Module LCoS For Education
MIPI 0.39 Waveguide LCD Display Module LCoS For Education
Specifications
Brand Name :
ENMESI
Model Number :
R3
Certification :
CE,ROHS,FCC,CCC
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T etc
Supply Ability :
5000pcs/month
Delivery Time :
3-7 work days （sample)
Packaging Details :
Gift box
Technology :
Waveguide
Resolution :
1920X1080
FOV :
40°
Eye-relief :
18mm
Driver interface :
USB Type-c
Distortion :
＜4%
Description

1920 * 1080 Resolution 0.39" Waveguide Micro Display Module For Education

Product Details

Display Technology Waveguide
Virtula Screen Size

86"(3M)
Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Eye-box 8*8mm²
Eye-relief 18mm
Distortion ＜4%
Transmittance Rate ＞82%
LCoS Screen Size 0.39"
FPS 120Hz
Pixel Pitch 4.5μm
Module Weight 16g

LCOS Screen Details

Display Type Reflective type LCoS(Liquid Crystal on Silicon)
Size 0.39"
Resolution 1920X1080
Frame Rate 60Hz
Interface Mode MIPI
Contrast Ratio 50:1
Debugging Method 12C interface debugging

Features

  • This LCoS micro display module has binocular and monocular.

  • Small size display with full HD: 0.39 inch 1920 * 1080 LCOS micro display

  • Wide range of color reproduction.

  • The display is MIPI interface.

  • Use optical waveguide technology.

  • The display module is light in weight and small in size

  • The waveguide lens is ultra-thin, only 15mm

  • It is plug and play, very convenient to use

  • Can connect to computer and mobile phone
