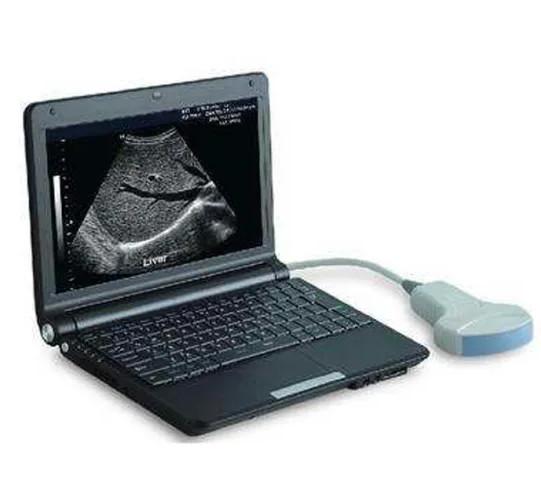

Medical Laptop Full Digital Ultrasound Scanner PT3000D1

Advantages:
L Light weight of 1 kg, 2cm for thickness, 17cm for width, 25cm for length, very convenience for doctors to carry out.
L U Disk for upgrade.
L Dismountable battery.
L Connect with Jet printer, Laser printer to print directly.
L Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.

Features:
L Battery
L 192-frame cineloop
L Two USB ports
L SD card
L General software, Obstetrics software and Cardiac software.

Software:
L General measurement: Distance, circumference, volume, angle, heart rate and etc.
L Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus' weight, pregnancy week, fetal physiological rating according to the previous measurements.
L Cardiac measurement software. The measurement result could be shown automatically.
Specifications

Scanning modeelectronic linear array, electronic convex array
Imaging modelB, B/B, B/M, M, 4B
Gray scale256 levels, four selectable gamma curve
Transducer frequency2.5-8.5 MHz
Magnification× 0.8, × 0.9, × 1.0, × 1.1, × 1.2, × 1.3, × 1.4, × 1.5
Permanent storage1024
Cine loop192, manual and automatic
Sound Power8 grades from 0-7
Dynamic RangeAdjustable from 30-75
USB Ports2

IP set8
Body Mark35 kinds
Pseudo color5 kinds
Image ProcessingUp/Down, Left/Right, Black/White, Frame correlation Edge enhancement, Scroll
MeasurementCircumference, Area, Volume, Heart ratio, Velocity, OB and Cardiac
FocusNumber and location of the focus can be adjusted
PuncturePuncture guide line
TGCAdjustable, Near field, Middle field and Far field are adjustable from 39-99

Body Marks35
IP setHospital's name, Date, Time, Formula of Fetus' weight and Pseudo color
Image store formatBMP, DICOM
Formula of Fetus' weightOSAKA, TOKYO1, TOKYO2, MERZ
ImageFrame correlation, Edge enhancement, Dynamic range, center line, scan angle Puncture
VoltageAC85V-265V
