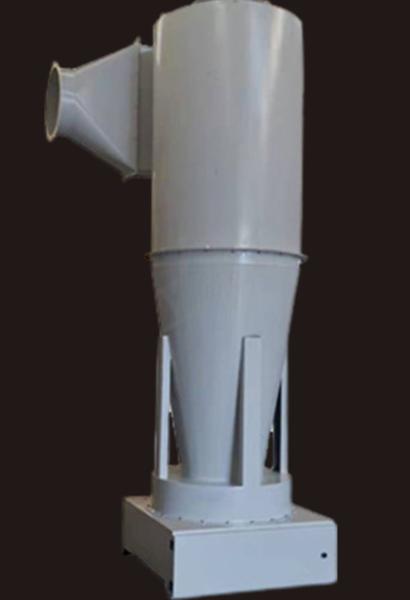

Stainless Steel Industrial Cyclone Dust Collector Rotating Airflow with PLC Control

Product Description:

A cyclone dust collector is a device used to separate smoke particles from gas by generating centrifugal force through rotating airflow. This device boasts a simple structure, small size, affordable price, easy operation, and simple maintenance. It also consumes little power and is suitable for use with high-temperature gases. However, it should be noted that cyclone dust collectors are only effective at collecting dust particles larger than 10μm. For particles smaller than 5μm, the capture efficiency is low, and the dust collection efficiency is usually around 60-90%.

Cyclone dust collectors come in three types: multi-tube cyclone dust collectors, bypass cyclone dust collectors, and diffusion cyclone dust collectors. Multi-tube cyclone dust collectors use multiple, small dust collectors in parallel in one shell, while bypass cyclone dust collectors come equipped with a bypass separation chamber, which uses the upper vortex to separate dust particles. Lastly, diffusion cyclone dust collectors have an inverted cone shape, with a reflective screen installed at the bottom of the cone.

Cyclone dust collectors consist of four main components: the exhaust pipe, air inlet pipe, cylinder, and cone. Smoke and dust particles enter the dust collector through the inlet, along with the air flow. The mixture then rotates from top to bottom along the wall of the dust collector, which is referred to as the outer vortex. Once the outer vortex reaches the bottom of the cone, it rotates upward along the axis, known as the inner vortex, and it’s eventually discharged from the discharge pipe. During rotation, the smoke and dust particles move towards the outer wall with the help of the inertial centrifugal force. Ultimately, the dust particles fall into the ash hopper along the wall of the dust collector, under the combined action of the air flow and gravity.

When the air flow rotates downwards from the top of the dust collector, the pressure at the top decreases. After reaching the top, some of the air flows, known as the upper vortex will carry the dust particles and rotate upward along the outer wall. Once it reaches the top, it will rotate downwards along the discharge pipe and will eventually be discharged. There are two air intake methods for dust collectors: tangential entry (straight tangential entry, volute tangential entry) and axial entry.

Applications:

The Cyclone dust collector is an essential product for many manufacturing plants, especially those involved in metalworking, woodworking, and other industries that generate large amounts of dust. This product is particularly useful for removing small particles as it can capture particles as small as 0.1um. The product is powered by a 2.2kW motor, making it highly efficient and effective.

The Cyclone dust collector's core component is a PLC that ensures smooth and reliable operation. The pulse jet cleaning method ensures that the filter bags are cleaned regularly, maintaining the product's efficiency. This product is easy to install and maintain, reducing downtime and increasing productivity.

The Cyclone dust collector is suitable for various application occasions, including but not limited to:

• Woodworking shops
• Metalworking facilities
• Food processing plants
• Paper mills
• Chemical plants

The Cyclone dust collector can be used in various scenarios, including but not limited to:

• Grinding and sanding operations
• Cutting and drilling operations
• Material handling and conveying
• Mixing and blending operations
• Bagging and packaging operations

In conclusion, the Cyclone dust collector from Delong Environmental Protection is a reliable and efficient product that is suitable for various industries and application occasions. With its bypass cyclone design, rotating airflow, and pulse jet cleaning method, this product can effectively remove dust particles from the air stream, ensuring a safe and healthy workplace for employees.

Customization:

Support and Services:

Our Cyclone dust collector product is designed to efficiently remove dust and debris from your workshop or industrial space. Our technical support team is available to answer any questions you may have about the product's installation, usage, and maintenance.

In addition, we offer a range of services to ensure the optimal performance of your Cyclone dust collector, including regular maintenance, repair, and replacement of parts as needed. Our team of experienced technicians is dedicated to providing high-quality support and services to keep your workspace clean and safe.

Contact us today to learn more about our Cyclone dust collector product and the technical support and services we offer.
