Product Description:

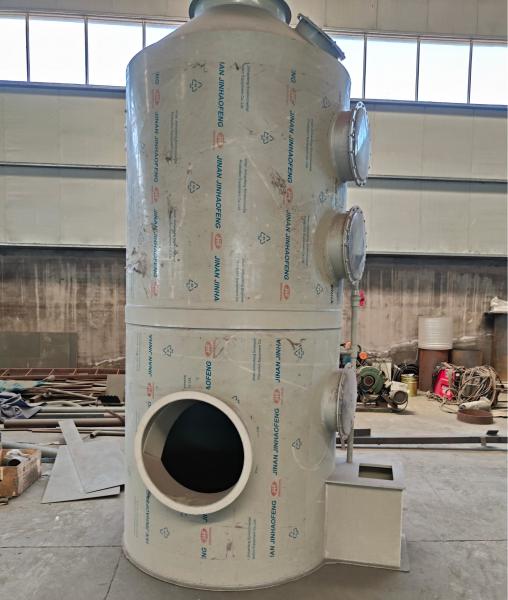

The waste gas can be treated through gas-liquid reverse absorption using a filled spray tower. This method involves spraying liquid from the top of the tower in the form of mist or small droplets to cool the waste gas, regulate the gas, and remove particles. The waste gas is discharged from the tower body in reverse flow to facilitate gas-liquid contact. Once the exhaust gas is treated in the demisting section, it can be safely discharged into the atmosphere.

The fan unit of the system helps in collecting the waste gas and directing it through the filling layer section, which is the medium of the gas/liquid contact reaction. The washing liquid flows on the surface of the filling material to absorb the acidic or alkaline dirt contained in the waste gas. The waste liquid is collected in the sump and then discharged to the wastewater system for treatment. On the other hand, the gas in the tower is sent in by a fan and flows from bottom to top. The absorption liquid neutralizes the gas, which passes through the demisting section in the tower and is discharged into the atmosphere through the chimney. Different acidic gases require different absorption liquids, and in this case, sodium hydroxide (NaOH) solution is used as the absorption and neutralization liquid.

The spray tower has a high purification rate and can effectively remove major pollutants such as sulfuric acid mist, chromic acid mist, hydrogen sulfide, and ammonia. It can also eradicate difficult-to-treat waste gases such as chlorinated chlorine, with a removal efficiency of more than 95%. The pp spray tower is highly designable and can be adjusted to fit different spaces. Its internal structure can be designed to accommodate air volume, air pressure, absorption efficiency, and waste gas type, achieving good treatment effect and economic investment.

The pp treatment tower has a relatively long service life of about 15 years, thanks to its antioxidant properties and the addition of ultraviolet absorbers to the outer layer during processing and manufacturing. Regular inspections carried out by spray tower manufacturers are enough for maintenance and management, reducing personnel costs. Operating costs are also low, as it requires no wearing parts, and no part replacements under normal operation. PP absorption towers have excellent corrosion resistance by all conventional absorption liquids, including sodium hydroxide, sodium carbonate, sodium thiosulfate, sodium sulfide, sulfuric acid, ammonia water, sodium hypochlorite, and organic solutions. Additionally, it can withstand high temperatures, which is beneficial in some special cases of waste gas and absorption medium.

Applications:

The Spray Tower product is ideal for a wide range of product application occasions and scenarios. One of its primary uses is in the treatment of circulating water solutions. The product's hollow cone or full cone spray nozzle type provides a highly effective method for removing impurities from water, ensuring that it stays clean and safe for use. Additionally, the spray tower is also highly effective in the removal of hydrogen sulfide, which is a common problem in many industrial processes.

The Spray Tower product is also well-suited for use in pickling towers. These towers are used in a variety of industrial applications to remove impurities from metal surfaces. The spray tower's high-capacity spray nozzles are perfect for this application, ensuring that the metal is thoroughly cleaned and ready for further processing.

The Spray Tower product's versatility makes it ideal for a broad range of industries, including oil and gas, chemical manufacturing, and wastewater treatment. The tower's automatic control system and easy maintenance make it a popular choice among operators, who appreciate its reliability and ease of use.

In conclusion, Delong Environmental Protection's Spray Tower product is a highly effective and efficient solution for a wide range of environmental control needs. With its automatic control system, easy maintenance, and high-capacity spray nozzles, it is the perfect choice for any industrial application that requires the removal of impurities or the treatment of circulating water solutions.

Support and Services:

Our Spray Tower product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced technicians and engineers are available to provide assistance with installation, maintenance, and troubleshooting. We also offer training and education programs to help customers better understand the product and its capabilities.

In addition, we offer customized solutions and upgrades to meet the specific needs of our customers. Our goal is to provide exceptional service and support throughout the entire lifespan of the product.

Packing and Shipping:

Product Packaging:

The Spray Tower product will be packaged in a sturdy cardboard box. The product will be wrapped in bubble wrap to prevent any damage during transit. The box will also contain a user manual and a warranty card.

Shipping:

The Spray Tower product will be shipped via standard shipping. The shipping will take 5-7 business days for delivery. The shipping cost will be calculated based on the shipping address and will be added to the total cost of the product during checkout.
