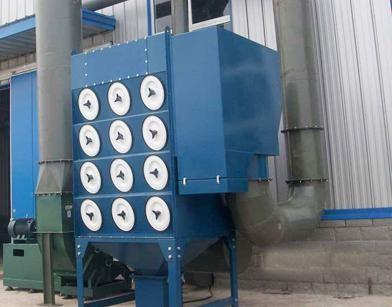

The Pulse Filter Cartridge Dust Collector is an efficient system that separates dust from gas. The system operates using an air inlet pipe that leads the dust-laden gas directly into the ash hoppers of each chamber. The ash hopper guide device enables the separation of large dust particles which fall directly into the ash hopper while the finer dust is adsorbed on the outer surface of the filter cartridge. After filtering the clean gas enters the upper box where it is discharged into the atmosphere through the offline valve and exhaust pipe.

Over time the dust accumulation on the filter cartridge causes resistance to increase. The cleaning control device opens the electric pulse valve automatically after the specified resistance value is reached, or the cleaning time setting value is triggered. A compressed air system sprays instantly to increase the pressure in the filter cartridge and shakes off the dust into the ash hopper. The air inlet, filter cartridge, air outlet, air bag, pulse controller, spray valve, spray pipe, etc., are all part of the pulse filter cartridge dust collector.

The filter cartridge made of polyester fiber features a closed lower end and a center of the upper end facing the lower end of the spray pipe. The coarse particles separate from the air flow and settle in the dust collecting chamber while the fine dust sticks to the outer surface of the filter cartridge, and the clean gas exits through the air outlet. The pulse controller opens the spray valve when the dust layer on the surface of the filter cartridge becomes thick. The compressed air in the air bag quickly ejects the dust from the outside and blows it down to the inside of the filter, eventually discharging it from the ash hopper.

The pulse spray method of the dust collector system ensures thorough cleaning while safeguarding the integrity of the filter cartridge. This system is also automatically controlled by the pulse controller. Additionally, pressure difference control or time control can be adopted to optimize performance.

The dust collector has compact dimensions, a stable operation, a long filter cartridge lifespan, and is easy to install and maintain. The filter cartridge is designed with a skeleton that provides an excellent sealing performance, which ensures reliable operation.

The box body of the dust collector is airtight, and the inspection door has an excellent sealing material with a very low air leakage rate. This feature contributes to the system's high sealing performance, which prevents the escape of contaminated air.

The dust collector's inlet and outlet air ducts are closely arranged and feature low air flow resistance. This system is widely applicable in the purification of dust-containing gases and the recovery of dust materials in various industries, including food, pharmaceuticals, feed, metallurgy, building materials, cement, machinery, chemical industry, electric power, and light industry.
