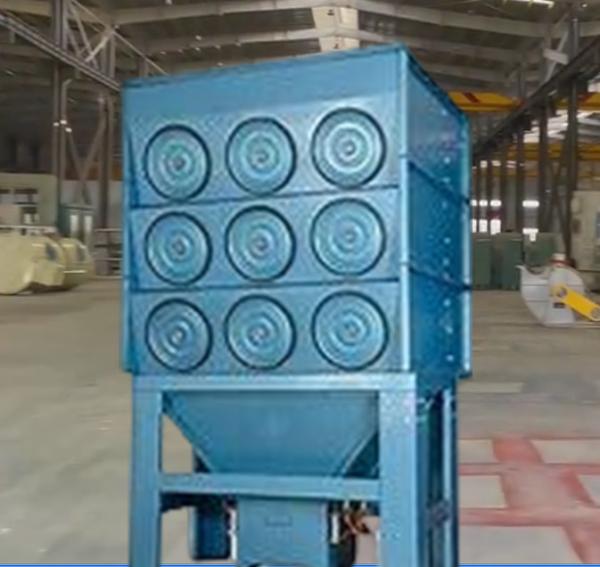

Vertical Cartridge Filter Dust Collector with Pulse Jet Cleaning Industrial Dust Removal
Vertical Cartridge Filter Dust Collector with Pulse Jet Cleaning Industrial Dust Removal
Specifications
Brand Name :
Delong Environmental Protection
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Installation Method :
Vertical
Power Source :
Electric
Filter Type :
Cartridge
Air Volume :
1000m³/h
Voltage :
220V
Application :
Industrial Dust Removal
Cleaning Method :
Pulse Jet
Material :
Stainless Steel
Filtration precision :
0.3 - 5μm
Pulse interval time :
Controllable
Applications :
Cement dust, metal dust
Working temperature :
130 - 260℃
Description

Product Description:

The dust collector operates by receiving dust-laden gas through an air inlet pipe and separating the larger dust particles and guiding them to fall into the ash hopper while allowing the finer dust particles to be evenly adsorbed onto the outer surface of the filter cartridge in the middle box. The clean gas then passes through the filter cartridge and exits through the upper box, out into the atmosphere via the offline valves and exhaust pipe.

The dust collection process continues as the dusts accumulate on the filter cartridge surface. Once the equipment resistance reaches the set resistance value of 1500Pa, the cleaning control device operates the electric pulse valve to activate the compressed air, which then sprays and increases the pressure in the filter cartridge to shake off accumulated dust particles and deposits them into the ash hopper for discharge through the ash discharge mechanism. The dust collector is made up of multiple parts such as the air inlet, filter cartridge, air outlet, airbag, pulse controller, spray valve, spray pipe and more.

  • The filter cartridge is constructed of folded, rolled polyester fiber that features a closed lower end and a center-upper end that faces the lower end of the spray pipe. The dust-laden gas moves slower and the coarse particles separate from the air flow, while the fine dust is captured on the filter cartridge surface when passing through the filter.
  • The pulse controller commands the spray valve to open, and compressed air in the airbag sprays out at high speed using the spray pipe to eject the dust from the filter cartridge, which then falls into the dust collecting chamber and is discharged finally from the ash hopper.

Some benefits of this dust collector include long-lasting filter cartridges, efficient dust control, and optimal filtering performance. It is compact, easy to install and maintain, with excellent sealing materials as well as low air leakage rate in the inspection door and low air flow resistance in the air ducts. These advantages make the dust collector ideal for use with dust-containing gases in various industries including food, pharmaceuticals, feed, metallurgy, building materials, cement, machinery, chemical industry, electric power and light industry.

Applications:

The Pulse filter cartridge dust removal equipment is suitable for various applications and scenarios. It is commonly used in industrial settings such as factories, workshops and manufacturing plants where there is a lot of dust and debris. The product is useful for removing dust particles from the air and keeping the environment clean and healthy for workers. It is also suitable for use in commercial settings such as restaurants and hotels where air quality is important for the comfort of customers.

The Pulse filter cartridge dust removal equipment is equipped with a Pulse controller which is an essential component of the device. The Pulse controller enables the device to operate efficiently by controlling the frequency and intensity of the dust removal process. The Blowing valve is another important component of the device which helps to remove the dust particles from the filter cartridge. The valve is designed to blow compressed air into the cartridge which dislodges the dust particles and allows them to be collected in a separate container.

The Pulse filter cartridge dust removal equipment is a versatile product that can be used in various settings and scenarios. It is ideal for use in scenarios where there is a lot of dust and debris in the air as it helps to keep the environment clean and healthy. The product is easy to install and operate, making it a popular choice among users. If you are looking for a high-quality dust removal equipment that is efficient and reliable, the Pulse filter cartridge dust removal equipment from Delong Environmental Protection is a great choice.

Support and Services:

The Pulse filter cartridge dust removal equipment product is backed by our comprehensive technical support and services. Our team of experts is available to provide assistance with installation, troubleshooting, maintenance, and repairs. We also offer training programs to ensure proper use and optimization of the equipment. In addition, we provide regular maintenance services and replacement parts to keep the equipment in top condition and extend its lifespan. Contact us for further information on our technical support and services.

Packing and Shipping:

Product Packaging:

  • 1 Pulse filter cartridge dust removal equipment
  • Instruction manual
  • Spare parts

Shipping:

  • Ships within 1-2 business days
  • Free shipping within the United States
  • International shipping available at an additional cost
  • Shipped via UPS or FedEx
