1000-10000 Pa Electric Pulse Bag Dust Collector With 10-1000m2 Filtration Area
1000-10000 Pa Electric Pulse Bag Dust Collector With 10-1000m2 Filtration Area
Specifications
Brand Name :
Delong Environmental Protection
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Pressure :
1000-10000 Pa
Power_Source :
Electric
Bag Length :
2000-6000mm
Airflow :
1000-100000 Cubic Meters Per Hour
Filtration_Area :
10-1000 Square Meters
Bag Material :
Textile/Non-woven Felt
Bag Diameter :
120-200mm
Product_Name :
Pulse Bag Dust Collector
Characteristics :
Pulse-jet cleaning for dust removal
Filtration precision: :
0.1 - 20μm
Temperature resistance: :
130 - 190℃
Material :
PPS fiber
Description

Product Description:

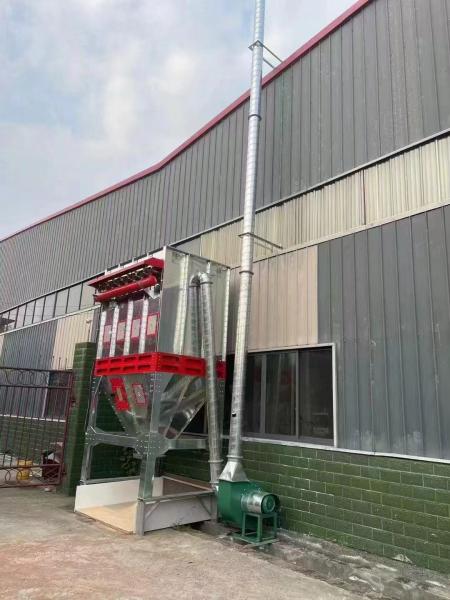

Bag dust collectors are designed to filter dust-containing gas using textile filter cloth or non-textile felt as filter bags. The fiber fabrics used in the bags have a filtering effect that helps to separate the dust from the gas.

When the dust-containing gas enters the bag dust collector, heavy particles and large dust fall into the ash hopper due to gravity. The finer dust particles then pass through the filter material and are retained in the filter bag, allowing the gas to be purified effectively.

The ash hopper is accessed by the dust-containing gas through the lower air intake pipe of the dust collector, where the guide plate helps to reduce gas velocity. Coarse dust particles fall into the ash hopper here, while the finer dust enters the filter bag chamber with the gas. The filter bag's fiber and fabric properties help to capture the dust through diffusion, inertia, barrier, hooking, and static electricity effects, while the purified gas escapes from the bag through the exhaust pipe.

The filter bags are cleaned through gas backwashing, pulse airflow, or other cleaning processes, which send the dust to the ash hopper or the dust discharge device.

The benefits of using a bag dust collector include:

  • High dust removal efficiency, usually above 99%;
  • Flexible air volume range from small to large;
  • High filtration accuracy, filtration accuracy 0.3μm, air leakage rate <0.1%;
  • Economical, with lower costs compared to the electrostatic precipitator;
  • High temperature resistance, allowing operation in high-temperature environments above 200℃;
  • Insensitive to dust characteristics, with strong adaptability;
  • Suitable structure, with a compact system designed to occupy small spaces;
  • Stable operation, suitable for use in hundreds of working conditions with reliable operations and long service life.

Applications:

The Pulse Bag Dust Collector uses non-woven felt filter bags to trap dust particles from the gas stream. The bags are cleaned using Pulse Jet Cleaning, which is a highly effective cleaning method that uses bursts of compressed air to dislodge the accumulated dust. This ensures that the bags maintain their filtering efficiency for longer periods, reducing the need for frequent bag replacement.

The product is powered by electricity and is available in both 220V and 380V voltage options. It is suitable for use in a wide range of industrial applications, including cement production, chemical processing, food processing, and pharmaceutical manufacturing. The product's high filtration efficiency makes it an ideal choice for industries that generate fine dust particles that are difficult to capture using conventional filtration methods.

The Pulse Bag Dust Collector is designed for use in scenarios where a high level of air quality is required. It is particularly effective in environments where dust particles can pose a health hazard to workers or where dust contamination can damage equipment. The product is also useful in environments where dust particles can cause product contamination, such as food processing and pharmaceutical manufacturing.

In summary, Delong Environmental Protection's Pulse Bag Dust Collector is a powerful filtration solution that uses non-woven felt filter bags and Pulse Jet Cleaning to ensure high filtration efficiency. It is suitable for use in a wide range of industrial applications and is particularly effective in scenarios where a high level of air quality is required.

Support and Services:

The Pulse bag dust collector product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to assist with installation, maintenance, and troubleshooting to minimize downtime and maximize efficiency. We also provide training and education to operators to ensure safe and proper use of the equipment. In addition, we offer replacement parts and upgrades to keep your dust collector running at peak performance. Contact us for more information on our technical support and services.

Packing and Shipping:

Product Packaging:
The Pulse bag dust collector will be packaged in a sturdy cardboard box to ensure safe delivery. The product will be wrapped in protective packaging material to prevent any damage during shipping. The packaging will also include an instruction manual for easy installation and operation of the product. Shipping:
We offer free shipping on all orders within the United States. The product will be shipped via a reliable courier service and delivery time may vary depending on your location. Once the product is shipped, you will receive a tracking number to track the delivery status of your order.
