Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Specifications
Brand Name :
BOTO
Model Number :
B-T-107(A-D)
Certification :
MIL STD GB JIS JEDEC IEC ISO
Place of Origin :
China
MOQ :
1PCS
Price :
Discussible
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PC/Month
Delivery Time :
15days
Packaging Details :
wooden case
Model :
B-TCT-401
Internal Dim （CM） :
30x30x30
Low Temp Range :
-10℃--60℃
HighTemp Rang :
＋80℃～200℃
Recovery time :
Within 3 minutes
Sample Weight :
5KG
Interior :
SUS#304Stainless steel plate
External Dim（CM） :
118x185x180
Description

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401

The two-box temperature impact test box is suitable for the safety performance test of electronic components to provide reliability test, product screening test, and so on. At the same time, through this equipment test, the reliability of products and product quality control can be improved.

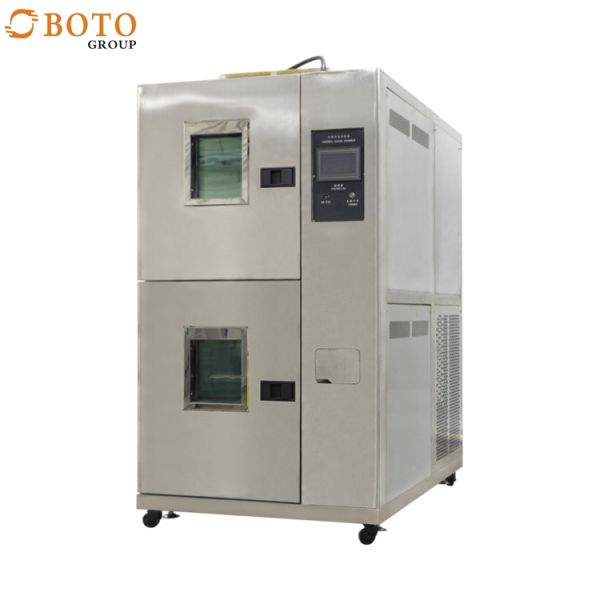

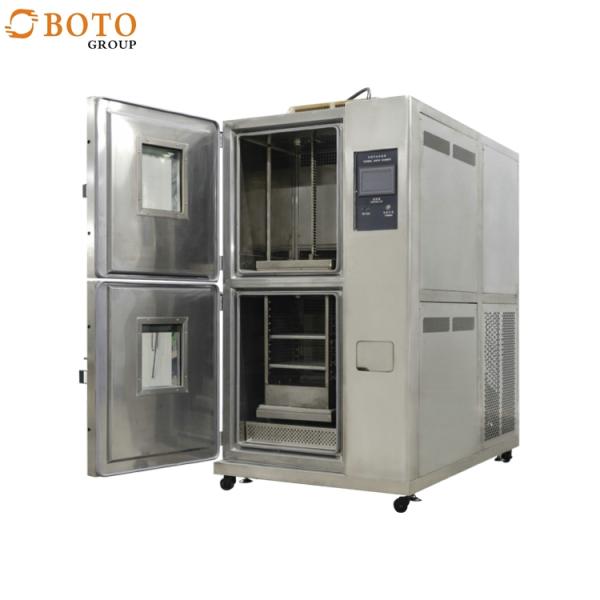

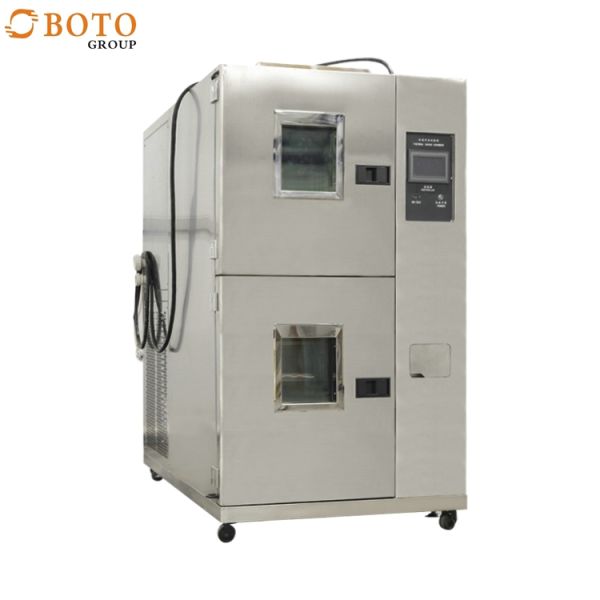

Two-box temperature impact test box adopts upper and lower boxes (upper box high temperature, lower box low temperature). In the middle is blue extraction, which is the place where samples can be placed. Blue extraction switches up and down through the transmission device, and makes rapid conversion between high and low temperature two boxes, so as to realize temperature impact.

The product is suitable for the safety performance test of electronic components to provide reliability test, product screening test and so on. At the same time, through this equipment test, the reliability of the product and the quality control of the product can be improved. High and low temperature impact test box is aviation, automobile, household appliances, scientific research and other fields of necessary testing equipment, assessment and determination of electrical, electronic, automotive electrical appliances, materials and other products, in the high and low temperature test of the temperature environment impact changes after the parameters and performance, the use of adaptability, suitable for schools, factories, military, research, and other units.

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401

characteristic:

◆ Beautiful appearance, reasonable structure, advanced technology, exquisite material selection, with simple and convenient operation performance and reliable equipment performance.

The left side of the box has a test hole with a diameter of 50mm, which can be used for external power load wiring test parts.

◆ Can independently set the function of high temperature, low temperature and hot and cold impact three different conditions, and in the execution of hot and cold impact conditions, you can choose two or three trough type and cold, hot impact function, with high and low temperature testing machine.

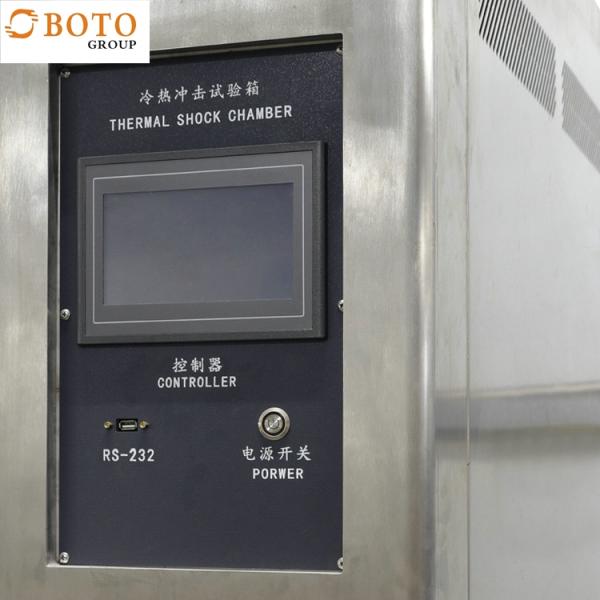

◆ With full automatic, high precision system loop, any part action, fully P.L.C locking processing, all using P.I.D automatic calculation control, high precision temperature control.

◆ Advanced scientific air circulation circulation design, so that indoor temperature uniformity, avoid any dead corners; Complete safety protection device, avoid any potential safety risks, ensure the long-term reliability of the equipment

Automatic (manual) defrosting can be set the number of cycles and defrosting times.

Model:

(Model) B-TCT-401 B-TCT-402 B-TCT-403) B-TCT-501 B-TCT-502 B-TCT-503 B-TCT-601 B-TCT-602 B-TCT-603
Internal Dim (CM) 30x30x30 40x40x40 50x50x50 30x30x30 40x40x40 50x50x50 30x30x30 40x40x40 50x50x50
External Dim(CM) 118x185x180 128x195x190 138x205x200 118x185x180 128x195x190 138x205x200 118x185x180 128x195x190 138x205x200
Sample Weight 5KG 10KG 20KG 5KG 10KG 20KG 5KG 10KG 20KG
Low Temp Range -10℃--60℃ -10℃~-70℃ -10℃--80℃
Test Temp Rang -40℃-150℃ -55℃~150℃ -65℃~150℃
HighTemp Rang
+80℃-200 ℃ lvarious specifications applicablel
Recovery time
Within 3 minutes
Interior SUS#304Stainless steel plate
Exterior Coating or SUS#304Stainless steel plate
Power Source AV:380V 50/60Hz
Power(KW) 13.5KW 15KW 19KW 13.5KW 15KW 19KW 15KW 19KW 22KW

our company:

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(80.00%),North America(3.00%),Southeast Asia(3.00%),Eastern Europe(2.00%),Africa(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Oceania(00.00%),Mid East(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Environmental testing equipment,Mechanical testing equipment

4. why should you buy from us not from other suppliers?
At present, the company's products have been used in all fields of enterprise production control, material inspection, import and export inspection, product quality inspection and supervision. The product is praised by customers for its advanced technology
