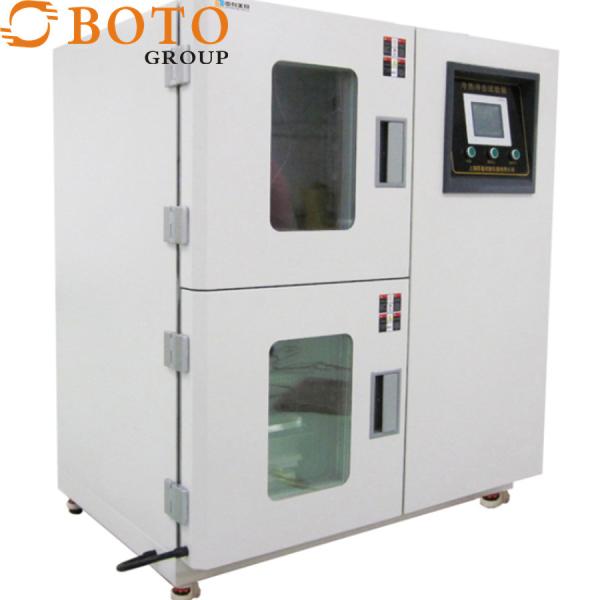

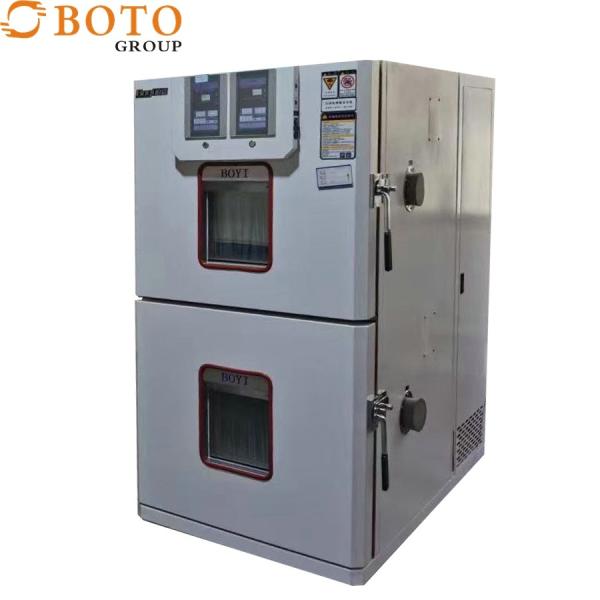

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 GJB/Z34-5.1.6

Description:

A two box-type hot and cold impact chamber is a testing equipment used to simulate various environmental conditions that a product may encounter during its lifetime. The chamber consists of two separate boxes, one for the hot environment and the other for the cold environment. The hot box is heated using a heating element, while the cold box is cooled using a refrigeration unit. The temperature in each box can be controlled independently, allowing the user to create a wide range of temperature conditions. The product being tested is placed in the chamber and subjected to alternating hot and cold temperatures to simulate thermal shock. This type of testing is particularly useful for electronic components, as they can be sensitive to temperature changes. The impact chamber can also be used to test the durability of products under extreme temperature conditions. This can be important for products that are used in harsh environments, such as aerospace, military, or automotive applications. Overall, the two box-type hot and cold impact chamber is an important tool for product testing and quality assurance, helping to ensure that products can withstand the environmental conditions they are likely to encounter in the real world.

Main Features:

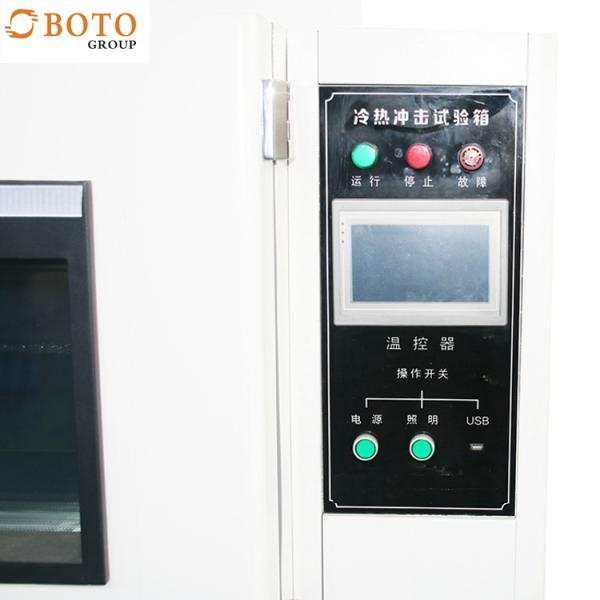

1. Large color LCD touch interactive microcomputer control system, easy to understand, running at a glance;
2. Closed imported compressor + environmental refrigerant, cold plate heat exchanger and dual-type ultra-low temperature
refrigeration systems;
3. A LAN network communication interfaces to computer remote control, easy to use.
4. Independently set the heat, cold and hot and cold conditions, the impact of three different function, the impact of the
implementation of hot and cold conditions, with high and low temperature testing machine functions.
5. Operation at boot time automatically make an appointment ahead of pre-cooling, preheating, standby.
6. Defrost cycles can be set and the number of automatic (manual) defrost.
7. Controller friendly interface and easy procedure setting, abnormal and troubleshooting display complete.

Applicable Industries:
Widely used in aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear
energy; colleges and universities; research laboratories; commodity inspection, arbitration, technical supervision departments building materials ceramic; petroleum and chemical products, machine and spare parts.

Two Box-Type Hot And Cold Impact Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.

TEST CHAMBER APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect

TEST CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain

TEST CHAMBER PROGRAMMABLE CONTROLLER
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output

Model:

(Model)		B-TCT-401	B-TCT-402	B-TCT-403)	B-TCT-501	B-TCT-502	B-TCT-503	B-TCT-601	B-TCT-602	B-TCT-603
Internal Dim (CM)		30x30x30	40x40x40	50x50x50	30x30x30	40x40x40	50x50x50	30x30x30	40x40x40	50x50x50
External Dim(CM)		118x185x180	128x195x190	138x205x200	118x185x180	128x195x190	138x205x200	118x185x180	128x195x190	138x205x200
Sample Weight		5KG	10KG	20KG	5KG	10KG	20KG	5KG	10KG	20KG
Low Temp Range		-10℃--60℃			-10℃~-70℃			-10℃--80℃
Test Temp Rang		-40℃-150℃			-55℃~150℃			-65℃~150℃
HighTemp Rang		+80℃-200 ℃ lvarious specifications applicablel
Recovery time		Within 3 minutes
Interior		SUS#304Stainless steel plate
Exterior		Coating or SUS#304Stainless steel plate
Power Source		AV:380V 50/60Hz
Power(KW)		13.5KW	15KW	19KW	13.5KW	15KW	19KW	15KW	19KW	22KW
