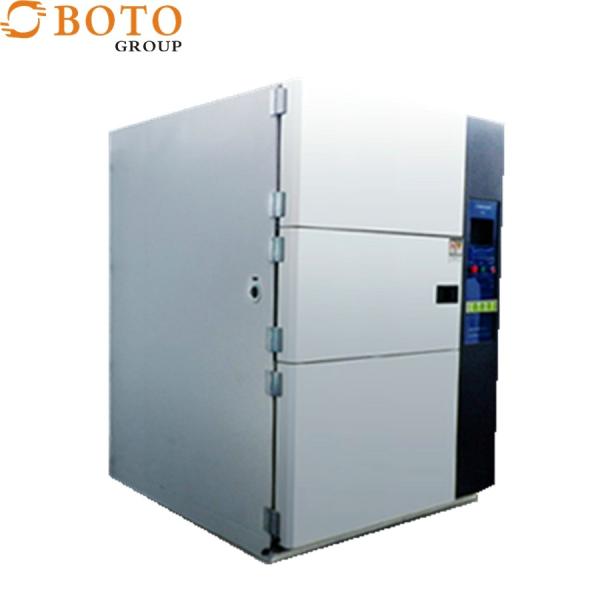

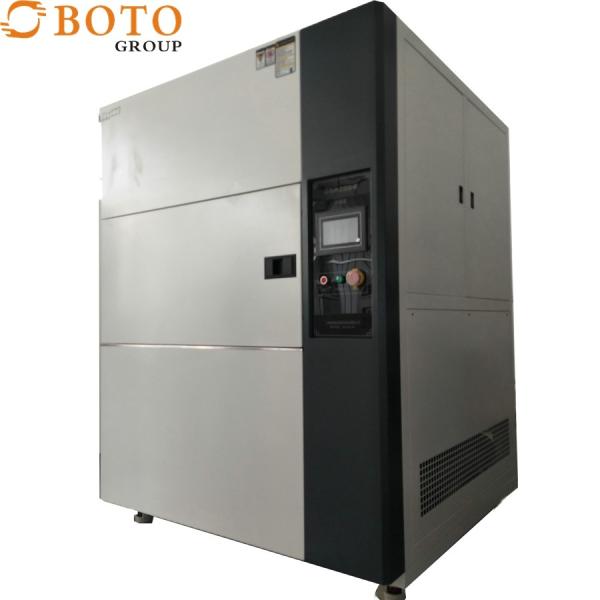

Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Specifications
Brand Name :
BOTO
Model Number :
B-TCT-402
Certification :
MIL STD GB JIS JEDEC IEC ISO
Place of Origin :
China
MOQ :
1PCS
Price :
Discussible
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PC/Month
Delivery Time :
15days
Packaging Details :
wooden case
Model :
B-TCT-402
Internal :
50x40x40
External Dim :
154x212x170
Low Temp Range :
-10℃--60℃
Test Temp Rang :
-40℃-150℃
HighTemp Rang :
＋80℃～200℃
Interior :
SUS#304Stainless steel plate
Exterior :
Coating or SUS#304Stainless steel plate
Description

Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40

Three-box cold and hot impact test chamber is designed and manufactured according to user requirements, suitable for aviation, aerospace, military, ship, electrical, electronic and other products and parts of the high and low temperature impact test and high temperature or low temperature environment storage and test.

It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report.

Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40

Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40

Specifications

The thermal shock test machine is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.


Thermal Shock Testing chamber features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static
mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Test standards
1.GB/T2423.1-1989
2.GB/T2423.2-1989
3.GB/T2423.22-1989
4.GJB150.5-86
5.GJB360.7-87
6.GJB367.2-87 405
7.SJ/T10187-91Y73
8.SJ/T10186-91Y73
9.IEC68-2-14
10.GB/T 2424.13-2002
11.GB/T 2423.22-2002
12.QC/T17-92
13.EIA 364-32

Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40

product description:

Model B-TCT-401 B-TCT-402 B-TCT-403) B-TCT-501 B-TCT-502 B-TCT-503 B-TCT-601 B-TCT-602 B-TCT-603
Internal (CM) 40x35x35 50x40x40 60x50x50 40x35x35 50x40x40 60x50x50 40x35x35 40x50x40 60x50x50
External Dim(CM) 143x210x170 154x212x170 166x220x180 143x210x170 156x210x170 166x220x180 143x210x170 156x210x190 166x220x180
Low Temp Range -10℃--60℃ -10℃~-70℃ -10℃--80℃
Test Temp Rang -40℃-150℃ -55℃~150℃ -65℃~150℃
HighTemp
+80℃-200 ℃ lvarious specifications applicablel
Recovery time 3 to 5 minutes
Temp Fluctudtiont ±2 ℃(various specifications applicable)
Interior SUS#304Stainless steel plate
Exterior Coating or SUS#304Stainless steel plate
Power Source AV:380V 50/60Hz
Power(KW) 16KW 19KW 19KW 19KW 20.5KW 22KW 19KW 26KW 33KW
