Specifications
Brand Name :
BOTO
Model Number :
B-LY
Certification :
MIL STD GB JIS JEDEC IEC ISO
Place of Origin :
China
MOQ :
1PCS
Price :
Discussible
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PC/Month
Delivery Time :
15days
Packaging Details :
wooden case
Model :
B-LY
Internal Dim （CM） :
30x30x30
External Dim（CM） :
118x185x180
Sample Weight :
5KG
Low Temp Range :
-10℃--60℃
HighTemp Rang :
＋80℃～200℃
Right Angle swing pipe spray diameter :
16mm
Water tank material :
High-grade stainless steel plate
Description

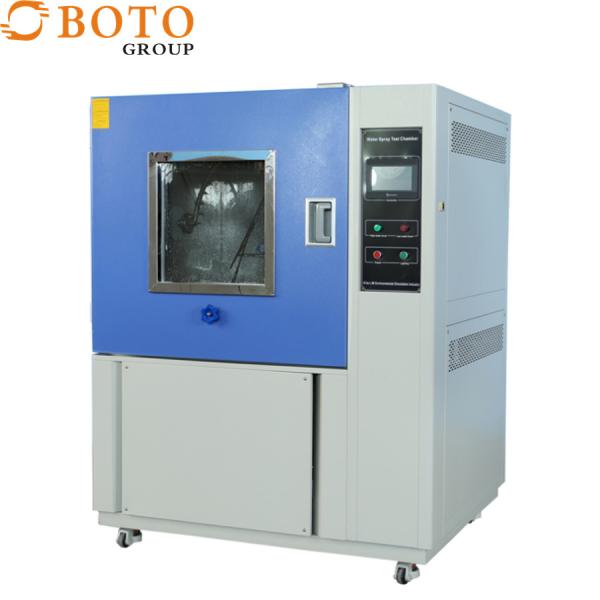

Climatic Chamber Manufacturer Automatic Laboratory Machine Rain Test Chamber Simulation Chamber IEC 60529

This rain test equipment is a non-standard equipment. The artificial rain test chamber is used for external lighting and signal devices and automobile lamp housing protection. It is a necessary testing equipment in the fields of aerospace, automobile and motorcycle, electrical engineering and electronics, home appliances, scientific research and so on.
Safety protection system
1. Self-protection, three voltage phase loss, phase sequence protection to prevent the pump from reversing. 2. Time accumulator to prevent accidental interruption of the test and to know the interruption time 3. Motor overload protection device 4. Equipment overcurrent protection device 5. With fuse-free protection switch 6. When the temperature is over, the water level is low, the machine warning light will indicate, and it will automatically stop. When the fault is not eliminated, it cannot be turned on 7. Water pressure overload protection switch 8. Pump overload protection switch 9. The motor is equipped with an overcurrent protector 10. Alarm buzzer 11. Chinese indication screen of failure point
Power supply and environmental requirements
1. Power supply: 380V 3-phase 4-wire 50Hz 2. The ambient temperature around the machine is maintained at +5~+35℃. 3. There must be a water source (ordinary tap water) and a drainage pipe.
Scope of application
This full product meets GB 2423.38-90 "Basic Environmental Test Regulations for Electrical and Electronic Products Test R: Water Test Method", GB/T10485-2007, strictly in accordance with the low-voltage electrical enclosure protection IPX3...IPX4... level GB/T4942.2 -93, GB 4208-93, GB 4706, GB 7000 and other corresponding national standards and technical parameters design and manufacture of other related standards. Can carry out the water test specified by the corresponding standard

Climatic Chamber Manufacturer Automatic Laboratory Machine Rain Test Chamber Simulation Chamber IEC 60529

Climatic Chamber Manufacturer Automatic Laboratory Machine Rain Test Chamber Simulation Chamber IEC 60529

Waterproofing test class:

There are waterproof testing requirements for portable, outdoor and automotive electronics. IEC, MIL, ETSI and SAE have formulated corresponding testing requirements internationally.

Rain test box is mainly used in electronic, electrical, aerospace, military and other scientific research units of external lighting, signal devices and car lamp shell protection test.

IEC/EN60529 Waterproofing is divided into 9 classes (Class 0 to Class 8), waterproofing classes (e.g. IPX4- Waterproofing class 4) :

Level 0: completely waterproofing without protection

Level 1: Vertical dripping should have no harmful effect

Level 2: When each vertical plane of the case is tilted within the range of 15°, the vertical dripping shall have no harmful effect

Level 3: Water is sprayed within 60° of each vertical plane, without harmful effects

Level 4: Splashing the shell in all directions has no harmful effect

Level 5: Spraying water in all directions to the enclosure has no harmful effect

Climatic Chamber Manufacturer Automatic Laboratory Machine Rain Test Chamber Simulation Chamber IEC 60529
Meeting Standards:
IEC 60529

Features of EN/ UL Rain test chambers:

  • Rotating rain and spray nozzles designed to JIS specifications
  • Speed control for the rotating spray nozzles
  • Stationary product shelf - A rotating shelf is optional: see options
  • Water pressure regulators, gauges and flow meters
  • Special high-volume floor drain system to rapidly drain water out of the chamber
  • Interior chamber size is the smallest possible area using the JIS specified nozzles

Other sizes and capabilities available upon request. Please contact us with your application.

Climatic Chamber Manufacturer Automatic Laboratory Machine Rain Test Chamber Simulation Chamber IEC 60529

Model:
Model B-LY

Internal Dim(mm)		 custom
SOT(mm) undetermined
structural features Radius of arc pendulum tube 400mm
Right Angle pendulum tube length 500mm
Water jet pressure 50-400kpa
Right Angle swing pipe spray diameter 16mm
Water tank material High-grade stainless steel plate

Packing/Shipping:
Climatic Chamber Manufacturer Automatic Laboratory Machine Rain Test Chamber Simulation Chamber IEC 60529
Climatic Chamber Manufacturer Automatic Laboratory Machine Rain Test Chamber Simulation Chamber IEC 60529
