Specifications
Brand Name :
BOTO
Model Number :
B-ZW
Certification :
MIL STD GB JIS JEDEC IEC ISO
Place of Origin :
China
MOQ :
1PCS
Price :
Discussible
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PC/Month
Delivery Time :
15days
Packaging Details :
wooden case
Model :
B-ZW
ultraviolet wavelength :
290nm-400nm UV-A、UV-B、UV-C
Internal :
45x117x50
External Dim :
58x128x135
Humidity range :
≥95%R.H
Distance between tubes :
35mm
Distance between sample and tube :
50mm
material :
304Stainless steel plate
Lamp wattage :
40W
safety protection :
Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory
Description

UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber

Product Description

Equipment Summary

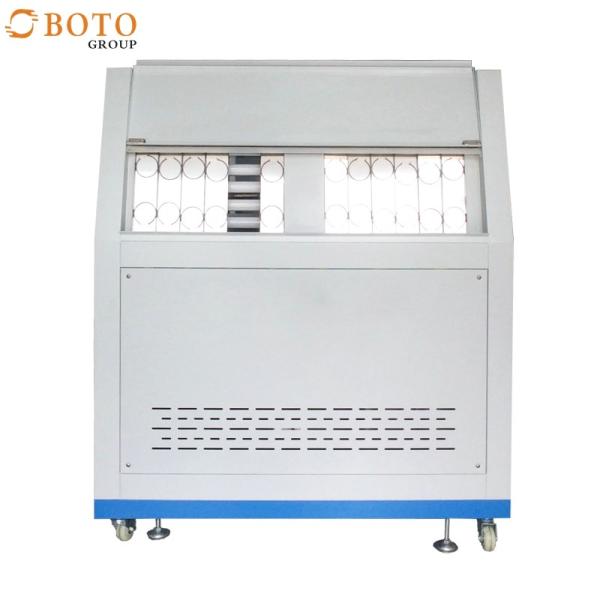

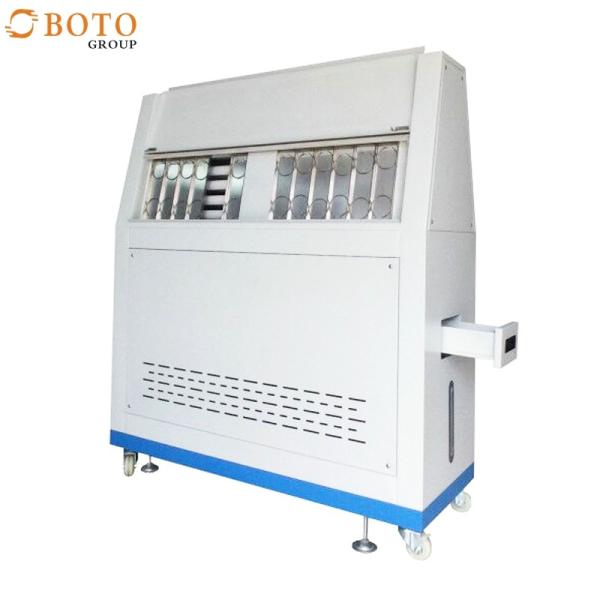

UV aging testing machine can simulate the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested, materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.

Main Functions

UV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.

Applicable Industries

It is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, etc..

UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber
UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber
UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber
experimental principle:

The UV aging test chamber simulates the effect of sunlight with fluorescent ultraviolet(UV) lamps and carry out these circles automatically.While it simulates rain and dew with condensing humidity or waterspray.In a few days or weeks,the UV can reproduce the damage that occurs over months or years outdoors.The damages include fading,color change,chalking,cracking,crazing,embrittlement,strength loss,etc.The test data can help you to select the new materials or improve the performance of materials. Chamber cover introduces the two-way flip type for easy opening and closing.The spec-imen and the shelf constitute the trapezidal inner wall of the chamber.

Innova UV Aging test chamber designing Standard:

IEC61215, ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN 534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020, ect.
UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber

UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber

It has the following performance characteristics:

The heating mode is the inner tank heating, fast heating and uniform temperature distribution

The drainage system uses reflux type and U-type sedimentation device to drain water

The distance between the sample surface and the UV lamp plane is 50 mm and parallel

The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal

Automatic water refill of tank water level

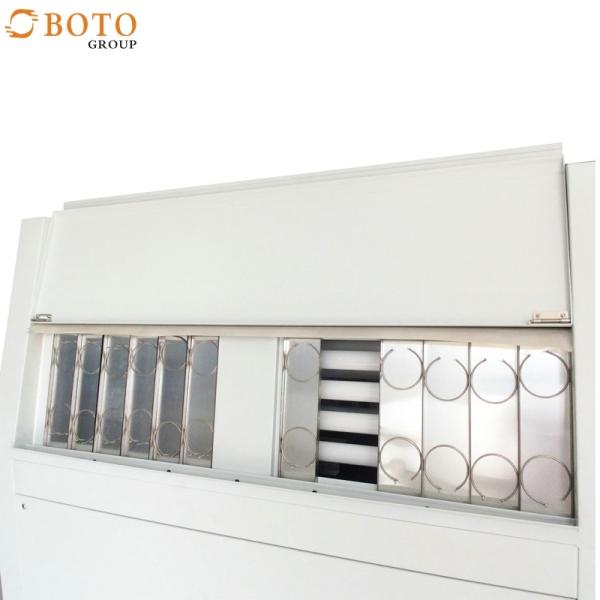

The lid is bidirectional clamshell type, easy to open and close

High quality fixed PU movable wheel is used at the bottom of the test chamber

product description:

Model B-ZW
Internal Dim(DxWxH) 50x75
External Dim(DxWxH) 58x128x135
power(kw) 4KW/3.2kW
performance index Temperature range RT+10℃-70℃
Humidity range ≥95%R.H
Distance between tubes 35mm
Distance between sample and tube 50mm
ultraviolet wavelength 290nm-400nm UV-A,UV-B,UV-C
Lamp wattage 40W
safety protection Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory

Packing/Shipping:

UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber

UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber

UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
