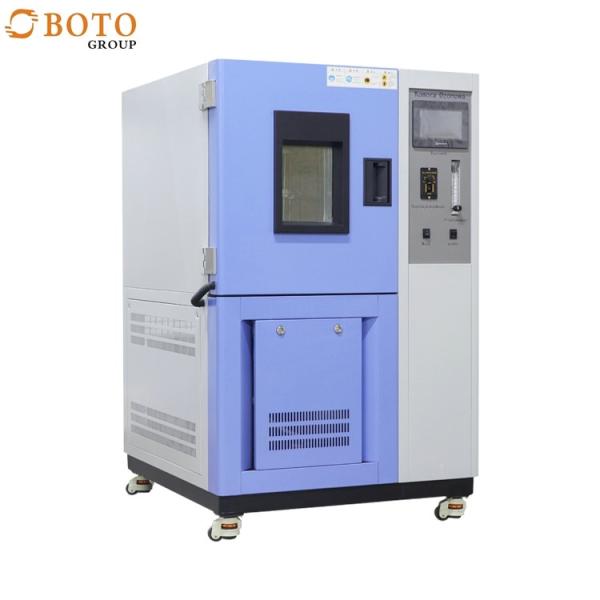

Air Cold High & Low Temp Alt. Humidity Test Chamber For Wide Applications
Air Cold High & Low Temp Alt. Humidity Test Chamber For Wide Applications
Air Cold High & Low Temp Alt. Humidity Test Chamber For Wide Applications
Air Cold High & Low Temp Alt. Humidity Test Chamber For Wide Applications
Specifications
Brand Name :
BOTO
Model Number :
BT-Y-001
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
1-15 days,to be negotiated
Packaging Details :
wooden case
Inner size WHD (cm) :
50*60*50
External size WHD (cm) :
70*162.5*153
Window Size WH (mm) :
500*600
Test Hole Size Diameter(mm) :
2 holes 50mm of each
Weight :
320KG
Voltage :
1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized
Temperature range :
-70℃ ～180℃
Cooling type :
Air cold
Heat up&Cool down time :
≤5℃/min for heating; ≤ 1.2℃/min for cooling
Indication resolution :
0.01℃, 0.1 %RH
Description

Air Cold High & Low Temp Alt. Humidity Test Chamber For Wide Applications

Temperature humidity test chamber is use to test material heat,cold,dry resistance, humidity resistance.Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.

Air Cold High & Low Temp Alt. Humidity Test Chamber For Wide Applications

Features
The temperature controller of the high and low temperature alternating heat and humidity test chamber adopts TH7110 series widescreen panel liquid crystal display programmable temperature controller, which can be operated at fixed value or program, and the operation is simple and convenient. The refrigeration unit uses the French Taikang unit. The test box is equipped with an electrothermal coating vacuum observation window, which can effectively solve the condensation problem of the observation window. The test box adopts the integral integrated assembly structure, and the appearance is beautiful and generous.
.

Air Cold High & Low Temp Alt. Humidity Test Chamber For Wide Applications

Main use and scope of application

The high and low temperature alternating heat and humidity test chamber is mainly used to test the temperature and humidity stress of the test piece, and can be used in aerospace, aviation, electronics, metallurgy, petroleum, chemical and other industries.

Basis and use criteria
Test chamber design and manufacturing meet the following test standards and methods
GB2423.1-89 Test A Low temperature test method
GB2423.2-89 Test A High temperature test method
GB/T2423.3-93 Test Ca constant damp heat test method
GB/T2423.4-93 Test Db alternating damp heat test method
GB2423.34-86 Test Z/AD temperature and humidity combined cycle test method
GJB150.3.4.9-89 High temperature test, low temperature test, damp heat test method
GB10586-89 wet heat test box technical conditions

GB10592-89 high and low temperature test chamber technical conditions

Product parameters

Model
BT-O-150
BT-O-225
BT-O-408
BT-O-800
BT-O-1000
Inner size
WHD (cm)
50*60*50
60*75*50
80*85*60
100*100*80
100*100*100
External size
WHD (cm)
70*162.5*153
80*177.5*153
100*192.5*163
120*209*183
120*209*203
Window Size
WH (mm)
500*600
600*750
800*850
100*100
100*100
Test Hole Size
Diameter(mm)
2 holes
50mm of each
2 holes
100mm of each
2 holes
100mm of each
2 holes
100mm of each
Weight
320KG
370KG
460KG
560KG
590KG

Voltage
1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized
Temperature range
-70℃ ～180℃
Humidity range
10% ～98%RH
(5%~98% R.H. customized)
Temp.& humidity control fluctuation
≤±0.5℃, ≤ ±2.5%RH
Indication resolution
0.01℃, 0.1 %RH
Temp.&humidity Uniformity
≤±1.5℃,≤±2.5% RH
Heat up&Cool down time
≤5℃/min for heating; ≤ 1.2℃/min for cooling
Cooling type
Air cold
Chamber materials
SUS#304 stainless steel for Inner chamber with thickness 1.5mm
Steel plate for external chamber with thickness 1.5mm
Insulation materials
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm
Mechanical Room
Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet;
Humidifying and humidity measuring water utilization control device
Electronic Box
Heat emission blower fan
Distribution switchboard
Test terminal of sample
USB physical interface (need to be purchased together with centralized monitoring software)
Residual current circuit breaker of main power supply
Heating Device
Basin heating humidifying method
Stainless steel armored heater is adopted in basin humidification
Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state
relay)
Water level control device, dry heating prevention device of heater
Humidifier
1.Basin heating humidifying method
2.Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay)
3.Water level control device, dry heating prevention device of heater
Control panel
Temperature (humidity) control display, over temperature protection setting device,emergency switch, run indicator, failure
indicator
Compressor
Imported Compressor
Fits wide range of pressure
Higher heating efficiency
Easy to maintain

Controller
Screen Size &Display
7" TFT-LCD
Down load data
By USB directly
Language
ENG (other language can be acceptable)
Number of Program Groups
120 Groups, each Group with 1200segments with 9999 cycles
Connected to PC
YES
Easy for Operation
YES

Air Cold High & Low Temp Alt. Humidity Test Chamber For Wide Applications

Advantage

Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Customer Support Services

Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
