Specifications
Brand Name :
BOTO
Model Number :
B-CY-500
Certification :
MIL STD GB JIS JEDEC IEC ISO
Place of Origin :
China
MOQ :
1PCS
Price :
Discussible
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PC/Month
Delivery Time :
15days
Packaging Details :
wooden case
Model :
B-CY-500
Internal :
45x45x60
External Dim :
143x210x170
Low Temp Range :
-10℃--60℃
Test Temp Rang :
-40℃-150℃
HighTemp Rang :
+80℃~200℃
Interior :
SUS#304Stainless steel plate
Exterior :
Coating or SUS#304Stainless steel plate
Description

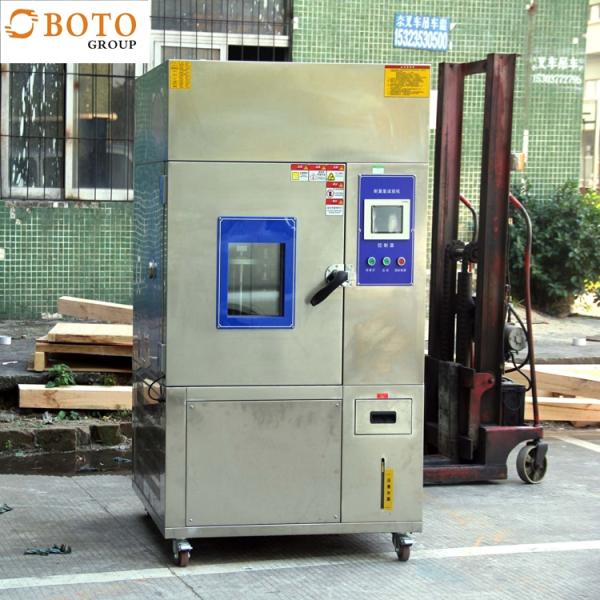

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Products Description:

1.Aging

This machine is used to promote deterioration of vulcanized rubber, and the change rate of tensile force and elongation before and after heating is calculated. Technically, 24-hour test in 70℃ is equivalent to 6-month exposure in the atmosphere.
2.Discoloration
This machine is simulated in the atmosphere, the goods’ change irradiated by sunlight. Technically, 9-hour test in 50℃ is equivalent to 6-month exposure in the atmosphere.

Integrated ozone concentration, temperature and humidity controller (setting mode is touch button), high integration, good reliability, LED display, display resolution temperature (0.1℃), humidity (0.1%RH), ozone concentration (1pphm), PID set value control, easy to operate

No vulnerable components, maintenance free work, long life. And high frequency along the surface discharge ceramic corona generator ceramic electrode surface is easy to produce oxidation attachments, when the surface oxide is too thick, easy to produce corona block, not timely cleaning, ozone will not be able to produce.

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Sample rack requirements:

1. It is composed of shell, electronic components and ozone generator.

2. At the required elongation, the fixture is used to fix both ends of the sample. When contacting with the ozonated air, the length direction of the sample should be basically parallel to the direction of the air flow.

3. The fixture should be made of materials (such as aluminum) that are not easy to decompose ozone.

4, make the sample rotation speed between (20^-25) mm/s, in a vertical dry air plane, each sample continuously along the same path.

5. The rotation time of one sample is (8^-12) min. The scanning area of the sample (the shaded part shown in Figure 2) is at least 40% of the effective area of the test chamber.

Market value:

Ozone aging test chamber, as the name suggests, is a kind of test equipment to identify the weatherability of products by simulating or accelerating the aging situation of ozone in the atmosphere to rubber. So, for ozone aging test box in today's society market situation, its market value and reflected in where. The market value and application prospect of ozone aging test chamber are discussed here.

Today, both at home and abroad, the idea of environmental testing is gaining momentum. In order to meet the growing needs of today's society, people's research and development of new materials is on the rise. At the same time, in order to test the weatherability of new materials and the adaptability of special environment, more and more test equipment has been put on the stage of scientific development. We are familiar with UV aging test chamber, salt spray test chamber, high and low temperature test chamber, vibration test bench, ozone aging test chamber and so on. Today we will talk separately about the market value and application prospects of ozone testing in terms of gas corrosion.

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

product description:

Model B-CY-120 B-CY-250 B-CY-500 B-CY-1000
Internal Dim(DxWxH) 45x45x60 50x60x75 70x80x90 100x100x100
Temperature range 0℃-70℃
Humidity range >65%R·H
Ozone concentration 0-200PPm.0-300PPm
Temperature fluctuation ±0.5℃
Test apparatus
Dynamic and static (optional)
Sample rack rotation speed 360 degree rotating sample holder (1 rpm per minute)
Gas flow rate 12-16mm/s
Temperature Controller Imported LED digital display P.L. D+5.5, R microcomputer integrated controller
Time controller Precision hours,minutes,seconds time controller
Ozone concentration analysis Imported concentration analysis regulator 4-20mA outputs,RS232 communication port
Ozone generator Silent discharge tube type
Security protection Leakoge,short circuit,over temperature,motor overheating.over-current protection

Our Company:

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Packing/Shipping:

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

Ozone Aging Test Chamber, Lab Instrument, GB/T7762-2008, SUS#304Stainless steel plate

FAQ

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
