Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g
Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g
Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g
Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g
Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g
Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g
Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g
Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g
Specifications
Brand Name :
BOTO
Model Number :
BOTO-JT160
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD100/SET
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000 SET/MONTH
Packaging Details :
Standard Export Package
Weight :
400g
Display:: :
128*64 LCD with LED backlight
Probe :
Replaceable
Accuracy :
±(2%+1um)
Calibration Function: :
Probe Zero and two-point calibrations
Measuring range :
0 to 2000um
Storage:: :
3000 values of saved data
Usage :
Portable Paint Coating Thickness Gauge
Description

Newest Design Cheap Concrete Metal Glass Ultrasonic NDT Thickness Gauge

1. Product Introduction:

The instrumentis based on the principle of ultrasonic measurement.It can measure thickness of material which allows the ultrasonic wave penetrating
with constant speed and reflecting from the back side.With used in many areas of industry,ETC-098 has precise measurement,eg petroleum,metallurgy,shipbuilding,aviation,spacefight and so on.It can measure on various type of raw material and component parts.Applicable to monitor pipe and pressure ressel.

2.Technical Specification:

Display:128*64 LCD with LED backlight;

Measuring Range:(0.28~600)mm(Steel)/(0.011inch-23.6inch)

Velocity Range:(1000~9999) m/s;

Resolution:0.01mm Weight:245g

Measuring accuracy:±(0.5%H+0.04mm);H is thickness value;

Measurement cycle:Single point measurement 6 times/per;

Storage:40 values of saved data

Power Source:2pcs 1.5V AA size

Working Time:more than 50 hours (LED backlight off).

Outline Dimensions:145mm*74mm*32 mm

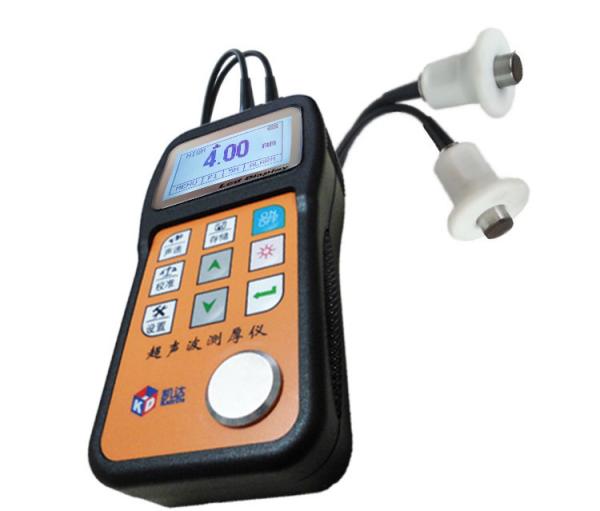

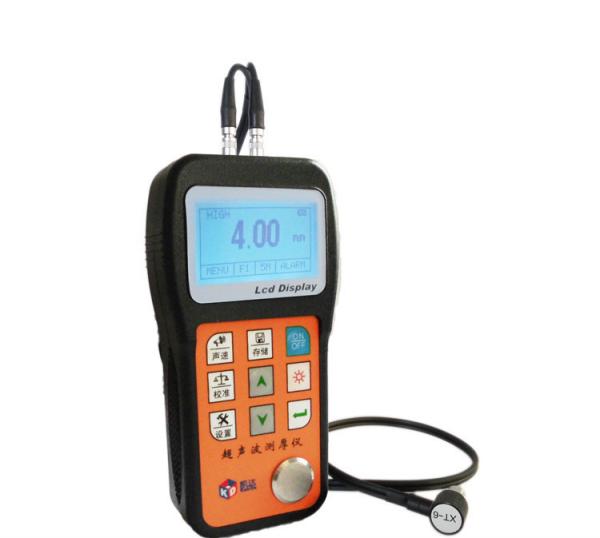

3.Detailed Images:

Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g

Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g

Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g

Concrete Glass NDT Thickness Gauge 23.6 Inch Ultrasonic Metal 400g

4.Features:

· 128*128 dot matrix LCD display, standard menu operations


· Two measure modes: single and continuous


· Two group modes: direct (DIR) and general (GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group


· Zero point calibration and multi-point calibration (up to 4 points) for each group


· User can recall, delete specified readings, or delete group readings


· Statistics display: mean, minimum, maximum and standard deviation


· Three probe modes: auto, magnetic and eddy current


· User can set a high or low alarm limit for each group


· Power off automatically


· USB interface to data transmission


· Low battery and error indication

5.FAQ:

Q:How do you ensure the quality of your products?

A:Generally,our equipments are the most durable type in the industry,this is also the feature of the label impression of DH for most of our customers at home or abroad. However,we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.

Q:How do you after-sale service work if the product got damaged?

A:In the guarantee time 12 months,our general aftersale serve.

Q: Is the measuring error large?

A: Enter the menu interface, clear the calibration data; shut down to restore the factory configuration steps; do zero calibration after booting, (Note: you need to do zero calibration on the customer's own substrate)


Q: During the measurement process, is it sometimes display F, sometimes display N?


A: The automatic mode undistinguishable the type of material and it requires manual switching of the measurement principle.
