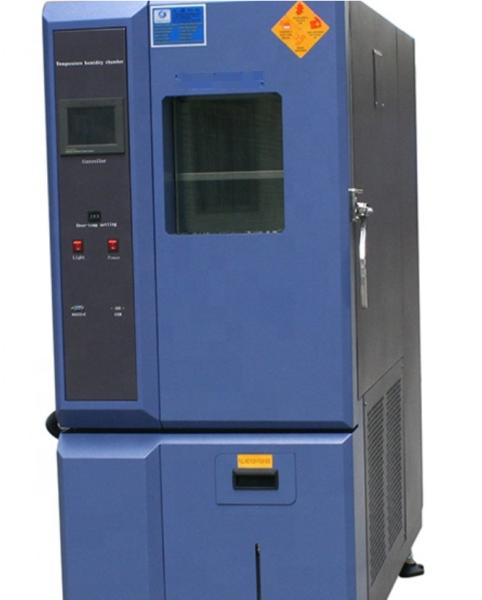

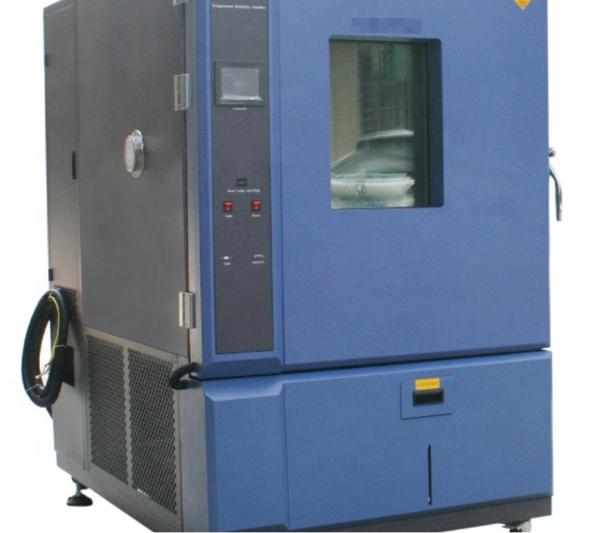

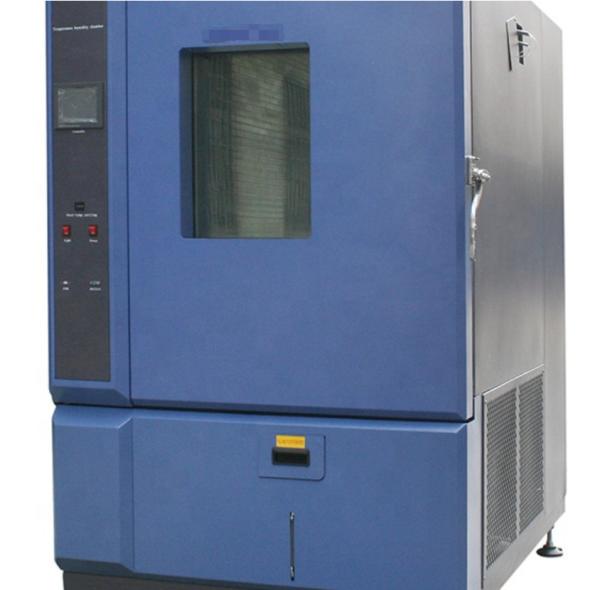

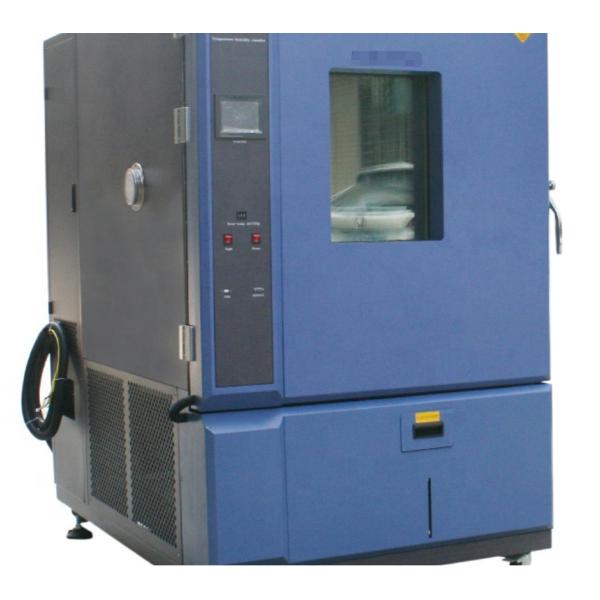

SUS304 800L High And Low Temperature And Humidity Test Chamber

Specifications

Brand Name :

BOTO

Model Number :

BT-800

Certification :

Place of Origin :

China

MOQ :

1 SET

Price :

4000USD

Payment Terms :

L/C, T/T

Supply Ability :

1000set/month

Delivery Time :

25 work days

Packaging Details :

Export carton

Power: :

Electronic

Product name: :

Programmable High-low temperature test chambers

Volume: :

800L

Inner size: :

1000*1000*800mm

Temperature range: :

-40℃, 0~150℃

Humidity range: :

10%~98%RH, option

Temperature uniformity: :

+/-1.5c

Humidity uniformity: :

+/-2%RH

Power supply: :

AC 1 Phase 220V / 3 Phase 380V 60/50Hz

Description

Climate Programmable High-Low Temperature Constant High Humidity Test Chamber Environmental Test Chambers

Competitive Price Altitude Test Chamber,Pressure Testing Chamber,Pressure Chamber , namely High-low temperature and low pressure test chamber or Low pressure test chamber. Can be used in electrical products, materials, spare parts, equipment, etc, for single featured test--high temperature, low temperature and altitude(under 30,000 or 45,000 meters) test and comprehensive test--- heat-and-cool circulation test, temperature-and-altitude test.

Name: SUS304 800L High And Low Temperature And Humidity Test Chamber
Brand: BOTO
Price: 4000 USD

Features

1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7. Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application

Specification

Specifications:

Model No	BT-080	BT-150	BT-225	BT-408	BT-800	BT-1000
Inner chamber size W×H×D(mm)	400x500x400	500x600x500	500x750x600	600x850x800	1000x1000x800	1000x1000x1000
Exterior chamber size W×H×D(mm)	900x1350x910	950x1500x1050	950x1650x1150	1050x1750x1350	1450x1900x1350	1450x1900x1550
Temperature range	-73°C -60°C, -40°C, -20°C, 0°C~+150°C, +180°C
Humidity range	20%~98%RH
Temp.&Humi fluctuation	±0.2°C, ±0.5%RH
Temp.&Humi.uniformity	±1.5°C,±2.5% RH when RH is ≤ 75%,±4% RH when RH is > 75% (tested with the empty chamber, 30 minutes after stabilization)
Temp.&humi. Resolution	0.01°C,0.1%RH
Inner chamber material	SUS#304 stainless steel plate
Exterior chamber material	Stainless steel plate+ powder coated
Insulation	PU & Fiberglass wool
Wind circulation	Sirocco fan
Heating system	SUS#304 stainless steel high-speed heater
Humidifying	Surface evaporating system
Cooling	Imported compressor,finned type evaporator,air-cooling condenser
Dehumidifying	ADP critical dewpoint cooling/dehumidifying method
Controller	Digital electronic indicators+S.S.R.With PID automatic calculation capability
Power supply	AC 1 phase 220V; 3 phase 380V 60/50Hz

Standard configuration:
Two sample holders; an observation window; φ25 or φ50 cable hole.
Optional parts:
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure:
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
