Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine
Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine
Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine
Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine
Specifications
Brand Name :
BOTO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Set/Sets per Month
Delivery Time :
1-15 days,to be negotiated
Packaging Details :
wooden case
Power :
Electronic
Usage :
plastic and footwear tester
Temperature range :
-80℃~+200℃
Humidity range :
20%~98%
Product name :
Three Zones Thermal Shock Test Chamber
Material :
#SUS 304 Stainless steel
Temperature uniformity :
±1.5C
Description

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Introduction:

Three box-type of hot and cold impact test chamber is to test thermal expansion and contraction of products caused by chemical changes or physical harm, to put the material structure or composite material in an industry under conditions like extremely high temperatures and very low temperature. It is an ideal test machines in detecting electronic components, metal, chemical materials, national defense industry, aerospace industry, BGA, PCB board, IC, semi - conductive ceramics, etc.
Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine
Product Paramenters
Model
BT-X-50
BT-X-80
BT-X-150
BT-X-225
BT-X-408
Inner size WxHxD(cm)
36×40×35
40×50×40
50×60×50
60×75×50
80×85×60
External size WxHxD(cm)
138x180x155
150X190X160
190x200X195
210x220X205
225x250x220
Shock Temperature ragne
-65°C~150°C
Heating up time
RT~200°C about 35min
Cooling down time
RT~-70°C about 75min
Temp recover time
/change time
≤3min / ≤10sec
Temp control accuracy/
distribution accuracy
±0.5°C / ±2.0°C
Inner materials
SUS 304# stainless steel plate for inner chamber,and stainless steel plate
+ spray painting for external chamber.
Insulation materials
High-temperature high-density amino acid ethyl ester foam insulator material.
Systems
P.I.D+S.S.R+Microcomputer balanced temperature control system.
Cooling systems
Semi-hermetic two-stage compressor (water-cooled) /
hermetic two-stage compressor (air-cooled).
Safety devices
Fuse switch, high and low pressure protection switch compressors,
refrigerant pressure protection switch failure warning system, electronic siren.
Fitting
Outlook window (special purchase), the upper and lower adjustable compartment
two energized measured line hole, casters,level bracket.
Power
3 phase AC380V 50HZ/60HZ
Controller
Taiwan TATO
Compressor
Germany Bitzer Brand

Features:

(1) With magnetic USB recorder, an extra record is not necessary.
(2) Refrigerant Servo Valve Flow Calculation Control----energy saving 30%
(3) BOTO is ahead of peers for its unique technology: no condensation under high heat and high humidity test.
(4) The heater is no need to work at temperatures approaching absolute zero. The temperature in test chamber is thermostatic by PWM ---- a technology that adjusts the flow of cooling pipe, cold bypass pipe, hot bypass pipe under control in the flow and direction of chiller.
(5) Temperature Slope Controls in IEC68-2-56,68-2-30, and no condensation happens.
(6) Comparison: Ø The traditional refrigerant compressor has a problems of big fluctuation in temperature--- an obsolete technology, and it shortens service life of the compressors.
The heating adopts PID temperature adjustment--- The cooling capacity is offset from the heating to achieve dynamic equilibrium, which is a waste of electricity.Ø The new developed one, PWM refrigerator, can save energy under low temperature operation.

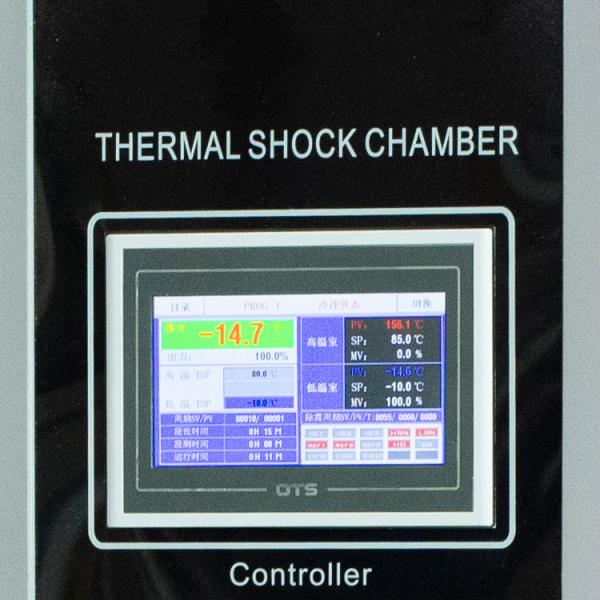

Controller
Screen Size &Display
7" TFT-LCD
Down load data
By USB directly
Language
ENG (other language can be acceptable)
Number of Program Groups
120 Groups, each Group with 1200segments with 9999 cycles
Connected to PC
YES
Easy for Operation
YES

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Packing and shipping

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Company and factory introduction

BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Main equipment

  • Constant Temperature and Humidity Test Chamber
  • Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
  • UV Accelerated Aging Test Chamber
  • Mini Environmental chamber / Desktop Environmental Test Chamber
  • Walk in Constant Temperature and Humidity Lab
  • High Temperature Chamber and Other Lab Test Equipment etc.

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Main market

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.

Production Process

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Production Details

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.

Certification

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Cooperative partners

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Three Boxes Hot and Cold Impact Test Chamber Thermal Shock Machine

Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
