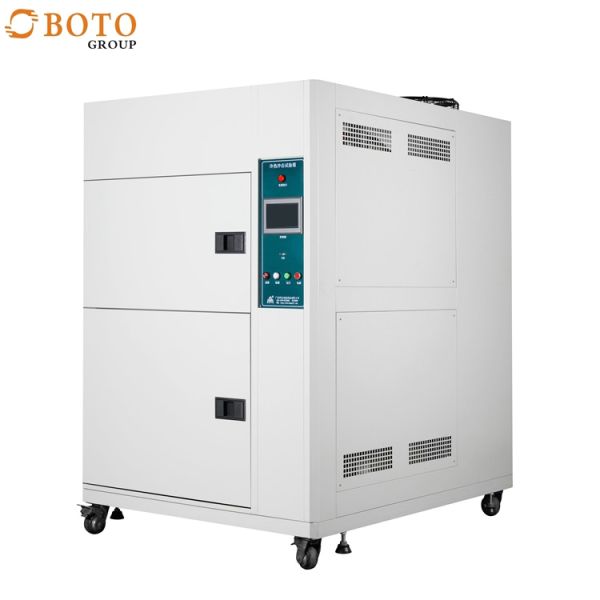

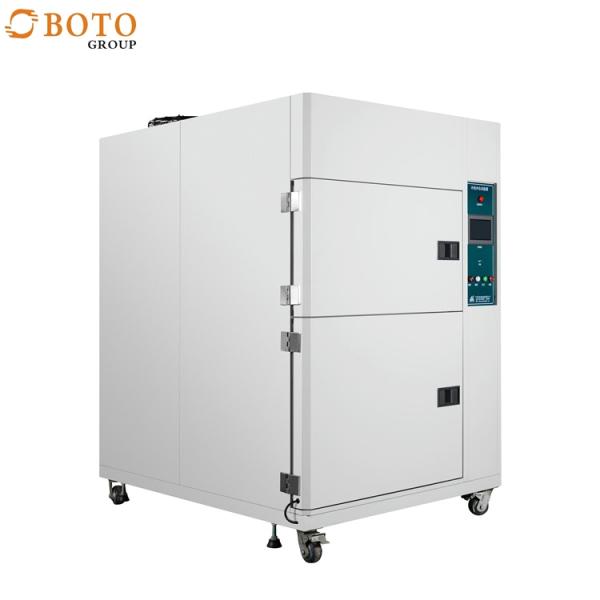

Latest Technology Cold Hot Thermal Shock Climatic Test Chamber
Latest Technology Cold Hot Thermal Shock Climatic Test Chamber
Latest Technology Cold Hot Thermal Shock Climatic Test Chamber
Latest Technology Cold Hot Thermal Shock Climatic Test Chamber
Specifications
Brand Name :
BOTO
Model Number :
BT-80
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Set/Sets per Day
Delivery Time :
1-10 days
Packaging Details :
wooden case
Product Name :
Thermal Shock Test Chamber
Internal size :
80L:W500*H400*D400mm(Can be customized according to customer needs)
External size :
80L:W1400*H1850*D1500mm(Can be customized according to customer needs)
Temperature shock range :
High temperature +60℃~ +150℃ Low temperature -40℃~ -10℃
Preheating temperature range :
60℃--200℃
High temperature tank heating time :
RT~+200℃≤30min (RT:+10~+30℃)
Precooling temperature range :
(-10)℃~ (-70)℃
Low temperature tank cooling time :
RT~-70℃≤50min (RT:+10~+30℃)
Temperature fluctuation :
±1.0℃
Temperature uniformity :
±2.0℃
Throttle conversion time :
≤5S
Impact recovery time :
(-40)℃~(+150)℃≤5min
Heating system :
Fin-type radiating tube-shaped stainless steel electric heater 1、 high temperature tank 9KW 2、 low temperature tank 6KW
Compressor :
Original imported French "Taikang" brand fully enclosed compressor
Condenser :
Water-cooled condensing agent
Evaporator :
Multi-stage automatic load capacity adjustment of bullying fins
Expansion valve :
Danvers imported original components from Denmark
Refrigerant :
The latest environment-friendly refrigerant R404A imported from USA
Description

Latest Technology Cold Hot Thermal Shock Climatic Test Chamber

Product Description
Product Name
Thermal Shock Test Chamber
Internal size
80L:W500*H400*D400mm(Can be customized according to customer needs)
External size
80L:W1400*H1850*D1500mm(Can be customized according to customer needs)
Temperature shock range
High temperature +60℃~ +150℃ Low temperature -40℃~ -10℃
Preheating temperature range
60℃--200℃
High temperature tank heating time
RT~+200℃≤30min (RT:+10~+30℃)
Precooling temperature range
(-10)℃~ (-70)℃
Low temperature tank cooling time
RT~-70℃≤50min (RT:+10~+30℃)
Temperature fluctuation
±1.0℃
Temperature uniformity
±2.0℃
Throttle conversion time
≤5S
Impact recovery time
(-40)℃~(+150)℃≤5min
Heating system
Fin-type radiating tube-shaped stainless steel electric heater
1, high temperature tank 9KW
2, low temperature tank 6KW
Compressor
Original imported French "Taikang" brand fully enclosed compressor
Condenser
Water-cooled condensing agent
Evaporator
Multi-stage automatic load capacity adjustment of bullying fins
Expansion valve
Danvers imported original components from Denmark
Refrigerant
The latest environment-friendly refrigerant R404A imported from USA
