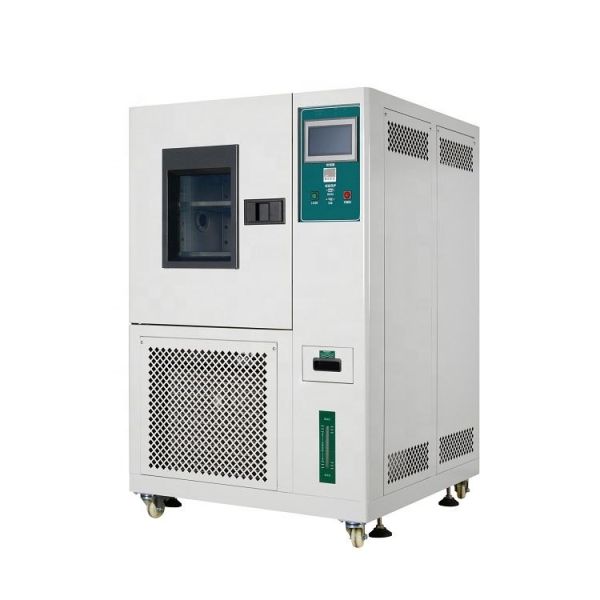

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber
GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber
GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber
GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber
Specifications
Brand Name :
BOTO
Model Number :
LR-B001-150L (A~F)
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Packaging Details :
Plastic + wooden case
Inner size :
50*60*50CM
External size :
105*175*108CM
Temperature range :
(Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃)
Humidity range :
20%~98% R.H
Temperature Fluctuation :
±0.5℃
Humidity control accuracy :
±0.1%;±2.5%
Weight (kg) :
220
Description

High-Low Temperature and Humidity Climatic Test Chamber

Uses:

This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

High-Low Temperature and Humidity Climatic Test Chamber

Design Standard:

GB11158 High Temperature Test Chamber Technical Condition
GB10589-89 Low Temperature Test Chamber Technical Condition
GB10592-89 High-low Temperature Test Chamber Technical Condition
GB/T10586-89 Damp Heat Test Chamber Technical Condition
GB/T2423.1-2001 Low Temperature Test Chamber Test Methods
GB/T2423.2-2001 High Temperature Test Chamber Test Methods
GB/T2423.3-93 Damp Heat Test Chamber Test Methods
GB/T2423.4-93 Alternating Damp-Heat Test Methods
GB/T2423.22-2001 Temperature Changing Test Methods
IEC60068-2-1.1990 Low Temperature Test Chamber Test Methods
IEC60068-2-2.1974 High Temperature Test Chamber Test Methods
GJB150.3 High Temperature Test Methods
GJB150.4 Low Temperature Test Methods
GJB150.9 Damp Heat Test Methods

60068-2-1

High-Low Temperature and Humidity Climatic Test Chamber

Specification

Model LR-B001-80
(A~F)		 LR-B001-150L
(A~F)		 LR-B001-225L
(A~F)		 LR-B001-408L
(A~F)		 LR-B001-800L
(A~F)		 LR-B001-1000L
(A~F)
Inner size: WHD(cm) 40*50*40 50*60*50 60*75*50 60*85*80 100*100*80 100*100*100
External size: WHD(cm) 105*165*98 105*175*108 115*190*108 135*200*115 155*215*135 155*215*155
Temperature range (Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃)
Humidity range 20%~98% R.H
Temp analytic accuracy/
uniformity		 0.1℃/±2.0℃
Temperature Fluctuation ±0.5℃
Humidity control accuracy ±0.1%;±2.5%
Heat, cooling time Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Inner and outer materials SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer
Insulation materials Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system

Air cooling/single segment compressor(-40°C) ,air and water double segment compressor

(-50°C~-70°C)
Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,

super humidity over-temperature protection switch, fuse, failure warning system
Parts Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4, Foot Cupx4
Compressor Original France“Tecumseh”brand
Controller Taiwan, Independent R&D software
Power AC220V 50/60Hz & 1 , AC380V 50/60Hz 3
Weight (kg) 170 220 270 320 450

580

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

Company Profile:

BOTO GROUP is a professional manufacturer of various kinds of testing equipment over 20 years. BOTO products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

BOTO ADVANTAGE

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

Customers photos

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

OUR CERTIFACTES:

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

The certificate is valid until June 17, 2024

PACKAGE&DELIVERY:

1. Standard exported package: Internal anticollision protection, external export wooden box packaging.

2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3. Responsible for the damage during the shipping process, will change the damage part for you for free.

4. 15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

OUR TEAM

GB11158 Environmental Test Chambers SUS304 150L Climatic Test Chamber

Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
