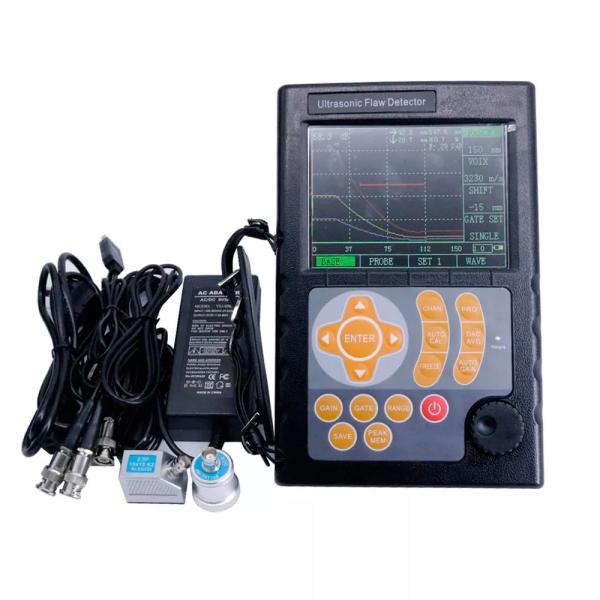

BTR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm
BTR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm
BTR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm
BTR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm
BTR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm
BTR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm
BTR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm
BTR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm
Specifications
Brand Name :
BOTO
Model Number :
BTR900
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiated
Payment Terms :
L/C, T/T
Type: :
Ultrasonic Flaw Detector
Gain: :
0-130dB
Material Velocity: :
1000 m/s~15000m/s
Single package size: :
20X30X30 cm
Selling Units: :
Single item
Single gross weight: :
6 kg
Package Type: :
Carton Box
Measuring range :
0-10000mm
Description

GR900 Ultrasonic Flaw Detector Portable Digital Flaw Detector Measuring Range 0-10000mm GR-900

Model

GR900
Measuring range 0-10000mm
Material Velocity 1000 m/s~15000m/s
Gain 0-130dB
Working Frequency 0.2-20MHz
Waveform memory 300
Channels 100
D-Delay -20µs~+3400µs
Resolution 0.1mm(2.5mm~100mm) 1mm(>100)
P-Delay 0µs~99.99µs
DAC √
AVG √
Built-in Standards √
Vertical linear error ≤3%
Horizontal linear error ≤0.1%
Sensitivity Leavings >62 dB
Dynamic range ≥32dB
Recoring Time 5mins
PC Software √
Temperature -20℃~50℃
Humidity 20%~90%RH
Power 7.4V 4800mAh
Working time >10 hours
Display LED true color
Size 238mm*155mm*46mm
Weight 1.0kg

Main feature:

*Automated calibration of transducer Zero Offset aor Velocity;

*Automated gain, Peak Hold and Peak Memory;

*Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB);

*Automated switch (Depth d,level p,distance s);

*100 independence setup,any criterion can be input freely, we

can work in the scene without test block;

*Big memory of 300 A graph.

*Gate and DAC alarm;Acoustic-Optical alarm;

*The embeded software can be online updated;

*Li battery, continue working time up to 10 hours;

*Display freeze;

*Automated echo degree;

*Angles and K-value;

*Lock and unlock function of system parameters;

*Electronic clock calendar ;

*Two gates setting and alarm indication;

*High-speed capture and very low noise;

*DAC,AVG;

*Automated calculate the size of the flaw with w ide bottom type in AVG function.

*6dB DAC functions;

*Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;

*Powerful PC software and reports can be export to excel;

Standard Configration:

Standard Configuration:

 Name QTY
1 Main unit 1
2 1.5A/9V power adaptor 1
3 probe connecting cable 2
4 Instrument case 1
5 Instruction manual 1
6 Straight probe 10mm 2.5MHz 1
7 Angle probe 13x13 K2 2.5MHz 1
8 Warranty card

1
