CE Approved Paint Type Automatic Programmable Walk-In Test Machine Climatic Test Chamber For Battery Test
CE Approved Paint Type Automatic Programmable Walk-In Test Machine Climatic Test Chamber For Battery Test
CE Approved Paint Type Automatic Programmable Walk-In Test Machine Climatic Test Chamber For Battery Test
CE Approved Paint Type Automatic Programmable Walk-In Test Machine Climatic Test Chamber For Battery Test
CE Approved Paint Type Automatic Programmable Walk-In Test Machine Climatic Test Chamber For Battery Test
CE Approved Paint Type Automatic Programmable Walk-In Test Machine Climatic Test Chamber For Battery Test
Specifications
Brand Name :
BOTO
Model Number :
BT-E705-8
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
1-15 days,to be negotiated
Packaging Details :
Wooden case
Power: :
Electronic
Temperature Range: :
-50℃ To +100℃
Humidity Range: :
40% To 98% Rh
Dimension (Internal) (w x d x h): :
1500 x 1500 x 3000 Mm
Dimension (External) (w x d x h): :
2850 x 1700 x 3200 Mm
Accuracy: :
Temp. ±1c, Humidity ±2.5%Rh
Interior Walls: :
Stainless Steel 304
Exterior Walls: :
Cold Rolled Stell Plate With Baking Finish
Viewing Window: :
Multi Pane Glass Window Size
Description

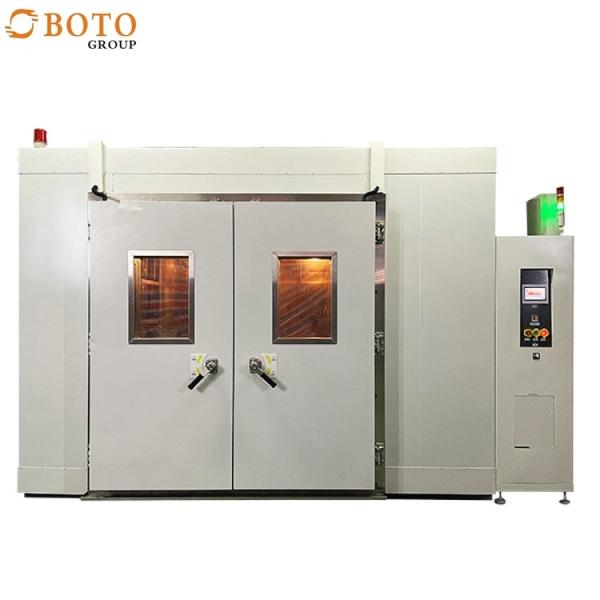

CE Approved Paint Type Automatic Programmable Walk-in Test Machine Climatic Test Chamber for Battery Test

Walk-in Temperature Humidity Test Chamber is designed for testing the capability of heat-endurance, cold-endurance,
dryness-endurance, and humidity-endurance. It suitable for quality control of the industries of electron, electrical equipment,vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
equipment,vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.


00:2

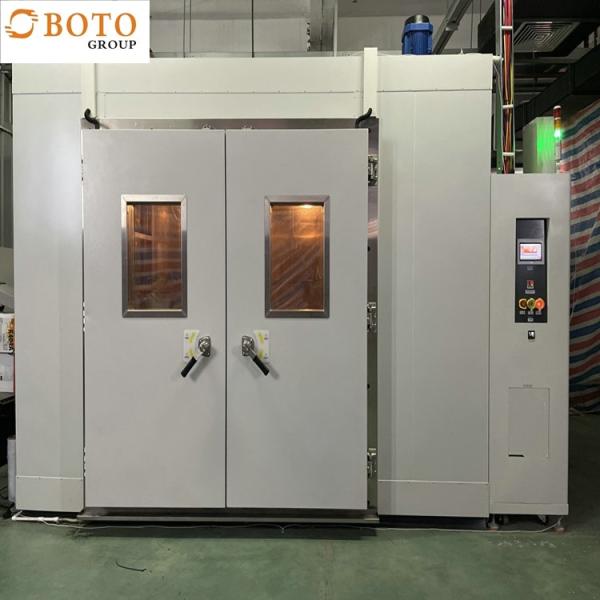

Details Images
Product Paramenters
Model
HUD-E705-8
Temperature Range
-50c To +100c
Humidity Range
40% To 98% Rh
Dimension (Internal) (w x d x h)
1500 x 1500 x 3000 mm
Dimension (External) (w x d x h)
2850 x 1700 x 3200 mm
Ramp
Variable, Temp. 0~5c / Min & Humidity 0~5%/Min
In Average, No Load
Accuracy
Temp. ±1c, Humidity ±2.5%Rh
Interior Walls
Stainless Steel 304
Exterior Walls
Cold Rolled Stell Plate With Baking Finish
Temperature & Humidity Measurement And Controller
32 Bit Control And Monitoring System.
Interface Facility With Rs232
Programmable Temp. Humid. Controller
Viewing Window
Multi Pane Glass Window Size
Port Holes
50 Mm Diameter For Wire Routing
Power Supply Requirement
Three Phase, Ac380 v ± 10 %, 50 Hz
Sound Pressure Level
Sound Pressure Level
Condenser Cooling
Water Cooled

Introduction

1 thermal cyclic chamber
* chamber with internal air circulation, and all the heaters and cooling coil located behind/below the false sheet of the
chamber and outside the working space
2 interior
* the conditioning with air circulation to maintain uniform temperatur
* interior have provision for arranging stainless steel
3 insulation
* insulation is asbestos-free csc-free, with low thermal conductivity, polyrthene pu foam
4 cooling system
* cascade type, refrigeration system with hermetically sealed refrigeration
cycles with environment and ozone friendly and chloride free refrigeration
5 door
* lockable front opening, with double door latch easy to open
* with silicon gasket for perfect sealing
6 viewing window
* viewing interlock is sealed to avoid leakage and provided with heating provision to prevent condensation
7 illumination
* inernallight on viewing windows with external control
8 temperature measuring and control system
* the temperature measuring and control system adopts microprocessor system and provided with touch panel for monitoring and
digital display:
supplied with support software
software is capable to visualize and graphical anallyse the measured & recorded value.
a. graphical representation and digital display and control of set and actual values
b. digital input and display of temperature in degree centigrade
c. fault diagnosis system
d. 120 stroage of programmes
* have adjustable safety cut-out against high and low temperature
* facility to programme temperature measuring using sensor pt100
9 recorder & pc connectivity
* standard rs -232 interface for pc connectivity
* rs-232 cable for pc connectivity along with pc connectivity software
10 port holes
* each port hole provided with silicon sealing bunker (plug)
11 electrical panel
* all power connectors, protection devices power control logic built in the control panel integrated to the chamber
* all electrical cables tagged with id number
* all electrical function circuit equipped with its own safety device that shuts down the relevant circuit or the entire test
chamber if a faulty develops
* all electrical systems comply with recognized technical regulation as well as with the accident prevention regulations.
12 standard protection
* protective feature to be provided as follows:
a. over load trip & earth leakage trip for complete chamber
b. over load trip for compressors, heaters and motors
c. over temperature cut-off for compressors
d. heater be cut off, if air circulation blowers are off
13 operating system
* detailed operating & maintanance manual
a. operational instruction
b. complete list parts
c. preventive maintenance procedure
d. trouble shooting measures
e. electrical circuit diagrams
14 testing sample
*solor panels, size 2mh * 1mw * 1md, size 2mh * 1mw * 1md
