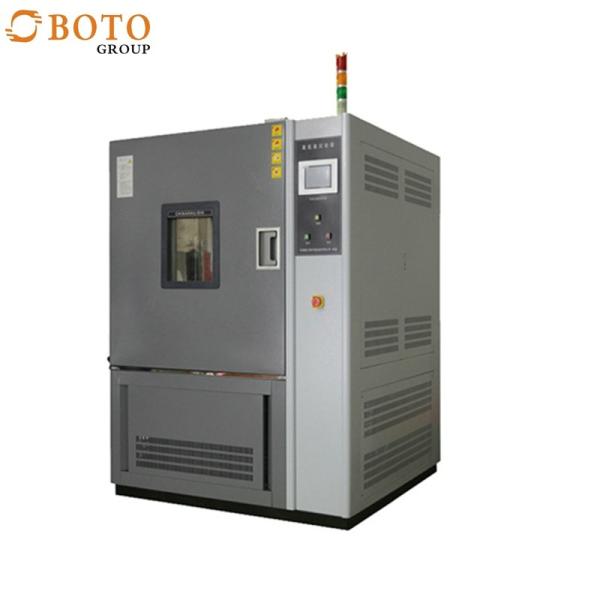

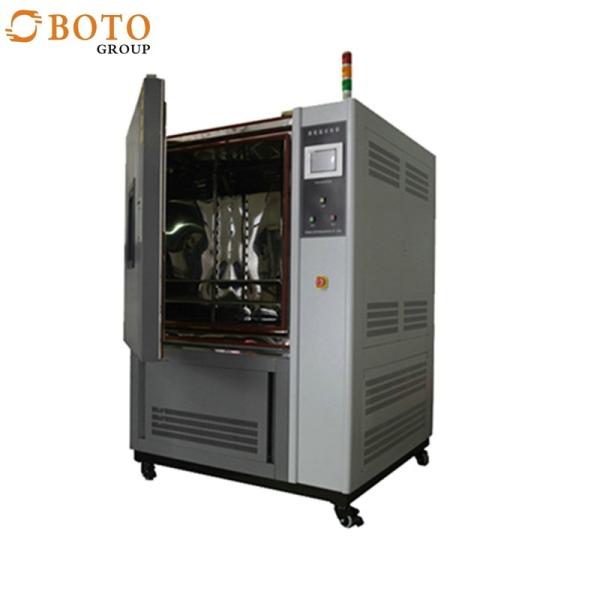

Stainless Steel Shell Environmental Cimatic Camera, Constant Temperature and Humidity Testing Machine
Introductions
Constant temperature and humidity chamber tests the product under the simulated environment conditions.combined different conditions(high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), to check the adaptability and characteristics of the product.
Srtandards
Meet the requirements of international standard (IEC, JIS, GB, MIL...).International quantum measurement procedures in order to achieve consistency (including test steps, conditions, methods) to avoid different cognitive, and narrowing the scope of measurement uncertainty.
Models¶meters
Specification | BT-100UA | BT-150UA | BT-250UA | BT-500UA | BT-010UA | |||||
Workroom Sizes W*D*H (cm) | 50x40x50 | 50x50x60 | 60x60x70 | 80x70x90 | 100x100x100 | |||||
Inner chamber volume(V) | 100L | 150L | 252L | 504L | 1000L | |||||
Outer dimension W*D*H(cm) | 98x95x160 | 98x105x170 | 108x112x180 | 128x125x200 | 148x155x210 | |||||
Packing Size | 113x110x175 | 113x120x185 | 123x127x195 | 133x140x215 | 163x160x225 | |||||
G.W(kg) | 360 | 390 | 450 | 480 | 620 | |||||
Temperature Range | A: -20°C-150°C B: -40°C-150°C C: -60°C-150°C D: -70°C-150°C | |||||||||
Temperature Fluctuation | ≤±0.5°C(standard)/≤±0.2°C(optional) | |||||||||
Temperature Evenness | ≤±2°C | |||||||||
Temperature Deviation | ≤1°C | |||||||||
Accuracy | 0.1°C,1.5%R.H (standard)/0.01℃,1.5%R.H(optional) | |||||||||
Humidity Range | 20%~98%R.H/10%~98%R.H(optional) | |||||||||
Humidity Deviation | ±2% R.H | |||||||||
Temperature Rise Speed | 1.0°C~3.0°C/min | |||||||||
Temperature Down Speed | 0.7°C~1.2°C/min | |||||||||
Time needed for heating | RT°C~150°C≤30min | |||||||||
Time needed for cooling | RT°C~-40°C≤60min | |||||||||
The machine noise | 72 dB(A) | |||||||||
Load on the largest | 100kg,≤20kg/layer | 150kg,≤26kg/layer | 260kg,≤30kg/layer | 260kg,≤40kg/layer | 300kg,≤60kg/layer | |||||
Equipment installed power | ~3.25KW | ~3.55KW | ~3.95KW | ~5.5KW | ~6.25KW | |||||
material | Inner chamber:# SUS 304 stainless steel | The outer wall:A3 carbon steel plate with plastic spray/#SUS304 | ||||||||
Wind Cycling Way | Centrifugal fan forced air circulation | |||||||||
Refrigeration Way | Single stage compression refrigeration | |||||||||
Refrigerater | French Tecumseh | |||||||||
Refrigerants | R4O4A USA Dupont environmental protection refrigerant | |||||||||
Condensing Way | Air-cooled or water-cooled | |||||||||
Heater | Nickel chrome heating wire heater | |||||||||
Humidifier | Semi-closed steam and wet | |||||||||
Water Suplying Way | Automatic cycling water supply | |||||||||
Controller | Japan OYO/Korea Temi | |||||||||
Standard Accessoriesparts | 1 Observe window(double-deck cavity toughened glass),50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze,3 fuses,1 power line | |||||||||
COMPANY PROFILE
BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
