Climate Hot Cold Thermal Humidity Calibration Test Chamber SUS304 Stainless Steel Electronic SD Card 3 Years
Climate Hot Cold Thermal Humidity Calibration Test Chamber SUS304 Stainless Steel Electronic SD Card 3 Years
Climate Hot Cold Thermal Humidity Calibration Test Chamber SUS304 Stainless Steel Electronic SD Card 3 Years
Climate Hot Cold Thermal Humidity Calibration Test Chamber SUS304 Stainless Steel Electronic SD Card 3 Years
Climate Hot Cold Thermal Humidity Calibration Test Chamber SUS304 Stainless Steel Electronic SD Card 3 Years
Climate Hot Cold Thermal Humidity Calibration Test Chamber SUS304 Stainless Steel Electronic SD Card 3 Years
Climate Hot Cold Thermal Humidity Calibration Test Chamber SUS304 Stainless Steel Electronic SD Card 3 Years
Climate Hot Cold Thermal Humidity Calibration Test Chamber SUS304 Stainless Steel Electronic SD Card 3 Years
Specifications
Brand Name :
BOTO
Model Number :
BT-TH-50
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150 Set/Sets per Month
Delivery Time :
5-25 days
Packaging Details :
wooden case
Overall Dimension (mm) :
800*1050*950
Interior Volume :
50L
Heat load :
1000w
Temperature Range A : :
-20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation :
± 0.5 ℃
Temperature Deviation :
± 2.0 ℃
Humidity Range :
20% ~ 98% RH
Humidity Deviation :
± 2.5% RH
Cooling Rate :
1 ℃ / min
Heating Rate :
3 ℃ / min
Refrigerant :
R404A, R23
Heating Element :
Nichrome heater
Controller :
Programmable color LCD touch screen controller, Ethernet connection, PC Link
Humidifier :
External isolation, stainless steel surface evaporation humidifier
Dehumidification :
Evaporator
Temperature Sensor :
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Humidity Sensor :
Dry and wet bulb sensor
Exterior Material :
Steel Plate with protective coating
Interior Material :
SUS304 stainless steel
Standard Configuration :
1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply :
220V 50Hz / 380V 50Hz
Maximum Noise :
65 dBA
Environmental Conditional :
5℃～+35 ℃ ≤85% RH
Description

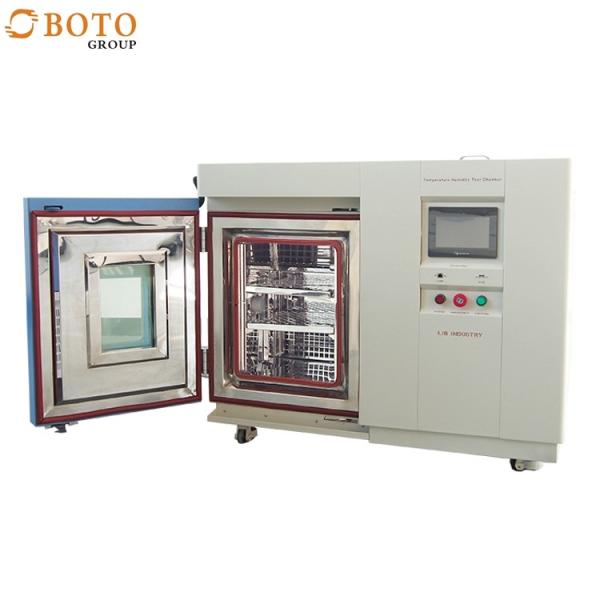

Portable Climate Hot Cold Thermal Humidity Calibration Test Chamber
Product Description
Description
Portable Climate Hot Cold Thermal Humidity Calibration Test Chamber to perform temperature & humidity test, cold resistance test, thermal cycle test, ultra low temperature test, high temperature test, storage condition, and calibration function.Suitable for small test pieces.
Standard:JIS C8990,IEC61730-2,IEC61215/IEC61646/ IEC61701/ IEC 61370...
Follow us and get free parts

Technical Parameters

Name
Portable Climate Hot Cold Thermal Humidity Calibration Test Chamber
Model
BT-TH-50
BT-TH-80
Internal Dimension (mm)
320*350*450
400*400*500
Overall Dimension (mm)
800*1050*950
900*1100*1000
Interior Volume
50L
80L
Heat load
1000w
Temperature Range
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation
± 0.5 ℃
Temperature Deviation
± 2.0 ℃
Humidity Range
20% ~ 98% RH
Humidity Deviation
± 2.5% RH
Cooling Rate
1 ℃ / min
Heating Rate
3 ℃ / min
Refrigerant
R404A, R23
Heating Element
Nichrome heater
Controller
Programmable color LCD touch screen controller
Ethernet connection, PC Link
Humidifier
External isolation, stainless steel surface evaporation humidifier
Dehumidification
Evaporator
Temperature Sensor
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Humidity Sensor
Dry and wet bulb sensor
Exterior Material
Steel Plate with protective coating
Interior Material
SUS304 stainless steel
Standard Configuration
1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply
220V 50Hz / 380V 50Hz
Maximum Noise
65 dBA
Environmental Conditional
5℃～+35 ℃ ≤85% RH

Detail Design

Test Area

1.SUS304 stainless steel 2.Internal Dimension:50L and 80L 3.Rust-proof to high and low temperature and moisture corrosion; 4.Adjustable sample shelves, facilitate the various sizes of test samples.

Cable Hole

1.Inner hole diameter is 50mm. 2.Convenient for the cable to pass through,and provide power for the test piece 3.Reliably Sealing 4.Customizable test hole size

Controller

1.PID programmable color touch screen controller 2.Can be network connection computer 3.Can edit 100 programs 100 segments 4.Multiple languages are available

Advantage
1. Small design & Affordable(50L,80L) 2.Testing small test pieces,Can be powered 2.Low types: -20℃/-40℃/-60℃/-70℃/-86℃ 3.Free calibration 4.quick delivery/in stock
Applications
Portable Climate Hot Cold Thermal Humidity Calibration Test Chamber widely used:
◆electronics ◆automotive ◆manufacturing ◆research
◆laboratories ◆LED light
◆lithium battery ◆solar ◆cell
◆electronic ◆pcb ◆drug◆rubber
◆cosmetics ◆metalware
◆ceramics◆cable ◆glass◆concrete
◆coating ◆plastic
◆so on
