Specifications
Brand Name :
BOTO
Model Number :
BT-6001A
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Month Salt Spray Corrosion Test Cabinet Salt Fog Corrosion Test Machine
Delivery Time :
5-25 days
Packaging Details :
wooden case
Inner size :
120x80x50
Power :
Electronic
Usage :
Universal Testing Machine
Temperature range :
-80℃~+200℃
Humidity range :
20%~98%
Product name :
temperature humidity incubator
Description

ASTM B117 Programmable Salt Spray Corrosion Test Cabinet Salt Fog Corrosion Test Machine

Product Description

Equipment summary:

Salt Spray Corrosion Chamber used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.

Corresponding standard :

1. GB/T 2423.17-1993 salt spray test

2. GB/T 2423.18-2000 salt spray test

3. GB/T 10125-1997 salt spray test

4. ASTM.B117-97 salt spray test

5. JIS H8502 salt spray test

6. IEC68-2-11 salt spray test

7. IEC68-2-52 1996 salt spray test

8. GB.10587-89 salt spray test

9. CNS.4158 salt spray test

10. CNS.4159 CASS Accelerated acetic acid copper salt spray test

11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Technical parameters:

Model BT-6001C BT-6001B BT-6001A
Inside box size(cm) 60x45x40 90x60x50 120x80x50
Outside box size(cm) 107x60x118 141x88x128 190x110x140
Testing room temperature Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Pressure barrel temperature Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Brine temperature 35℃±1℃ 50℃±1℃
Testing room Capacity 108L 270L 480L
Brine tank capacity 15L 25L 40L
Salt concentration The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
Air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
Testing room relative humidity 85% above
PH 6.5~7.2 3.0~3.2
Spray form Programmable spray (Including continuous and intermittent spray)
power AC220V1Φ10A AC220V1Φ15A AC220V1Φ20A

ASTM B117 Programmable Salt Spray Corrosion Test Cabinet Salt Fog Corrosion Test Machine

Detailed configurations as follows:

1, according to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control

(A) Salt spray test: NSS, ACSS

1. testing room : 35 ℃ ± 1 ℃

2 saturated air barrels : 47 ℃ ± 1 ℃

(B) anti-corrosion test: CASS (copper acetate)

1.testing room: 50 ℃ ± 1 ℃

2 saturated air barrels: 63 ℃ ± 1 ℃

2, air supply system: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).

(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.

(B) Testing configuration is switch connector designed for SO2.

3, spray form:

(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.

(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.

(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).

4, heating devices:

By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).

5, add water systems:

Using automatic water replenishment system, automatic replenishment when the water level is too low.

6, safe protective device:

(A) low water level, automatically cut off power supply.

(B) over-temperature, automatic cut off the power supply.

(C) attached to the safe warning light device.

Company introduction

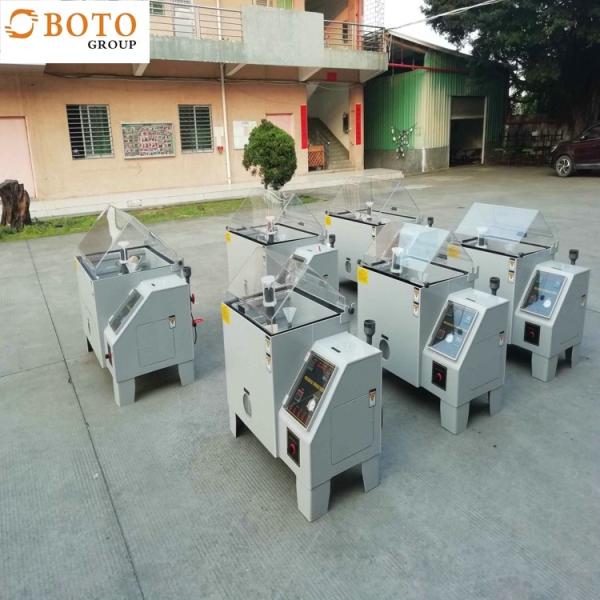

factory display
